Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of articulated loader lw200fv in China. Please feel free to buy cheap articulated loader lw200fv for sale here from our factory. Quality products and reasonable price are available.
Product introduction

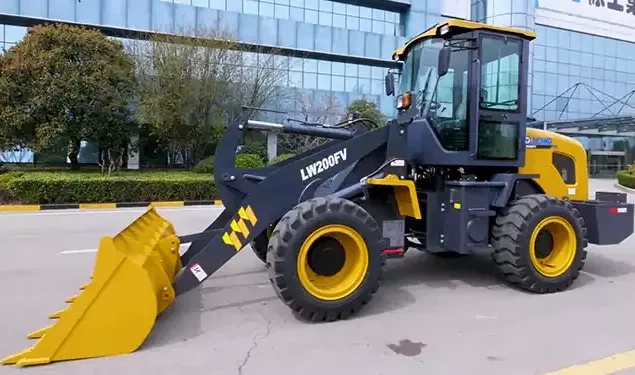

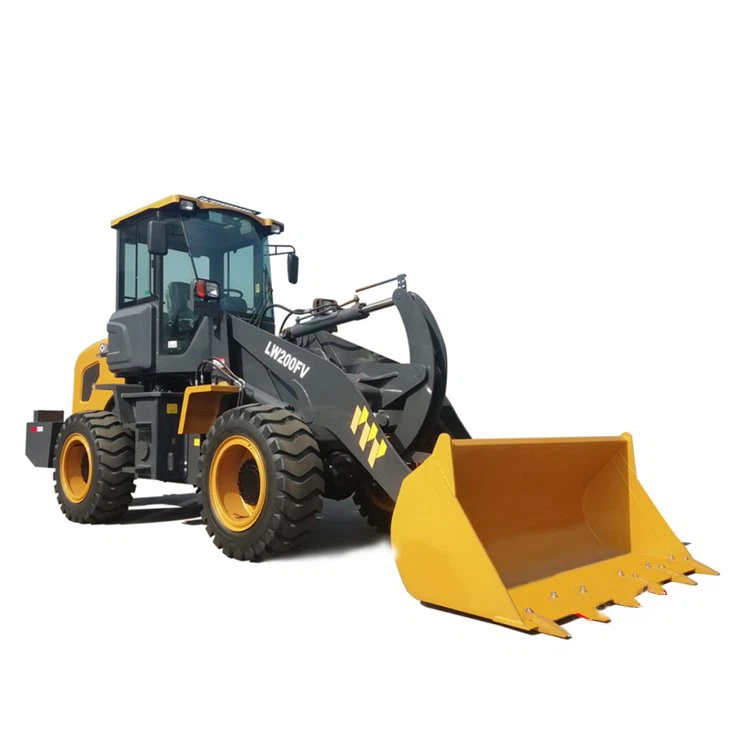

Articulated Loader LW200FV is a three-stage product independently developed by XCMG. It is equipped with Yunnei 4102 supercharged National III engine, high-quality split-type dual-variable, four-wheel drive, full hydraulic steering, strong power, higher efficiency, and stronger environmental adaptability.
Articulated Loader LW200FV can choose a variety of working devices and auxiliary equipment to achieve multi-functions in one machine. It is widely used in loading, towing, lifting, transportation and other operations in infrastructure, sanitation, farmland, road renovation, ports, freight yards and other places.
The hydraulic oil replacement period is extended to 2000 hours, which greatly reduces the user's cost of use.
Features
Articulated Loader LW200FV adopts a long wheelbase (2450mm) design, which is suitable for a variety of overweight working conditions and has excellent stability in the industry.
Strong digging force (breakout force ≥ 50KN), strong breaking force, and light weight lifting of various materials.
Fast and efficient, the driving speed is up to 24km/h, which is the best in the industry.
According to different working conditions, Articulated Loader LW200FV can be equipped with different unloading heights of 3-4 meters.
Model features
Yunnei 4102 supercharged three-stage engine has stronger power and higher efficiency, and the electronically controlled high-pressure common rail technology truly saves fuel and reduces consumption.
The reinforced heavy-duty drive axle meets the needs of high-strength and high-load operations.
Domestic first-line brand engineering tires, with high rubber content, reliable wear resistance, adaptable to a variety of harsh working conditions, and efficient operation.
CAE simulation, the working device meets the heavy load condition. Proprietary bucket type, large bucket ruler, more labor-saving inserting into the pile. Use wear-resistant materials to increase working life.
The pipelines are concentrated and the direction is reasonable. Double seal, leak-proof and more reliable.
The double side doors open the hood at a large angle, with a wide field of vision, comfortable operation in a large space, and convenient maintenance.
Articulated Loader LW200FV can be equipped with 3-meter, 4-meter unloading working devices and various tools to meet different working conditions.
Project | Unit | Parameter |
The quality of the whole machine | kg | 5950-6250 |
Rated bucket capacity | m³ | 1.2 |
Rated working load | kg | 1700-1500 |
Unload height | mm | 3050-3920 |
Unload distance | mm | 810-1100 |
Time used for lifting, loading and unloading, landing | s | 11 |
Engine rated power/speed | KW/r/min | 78/2400 |
Tire specifications | - | 16/70-20 |
Max. Walking speed | Km/h | 24 |
Overall dimensions(L*W*H) | mm | 6200*2170*2850/ |
Min. turning radius (center of tire) | Mm | 4750 |
