Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 14ton road roller in China. Please feel free to buy cheap 14ton road roller for sale here from our factory. Quality products and reasonable price are available.

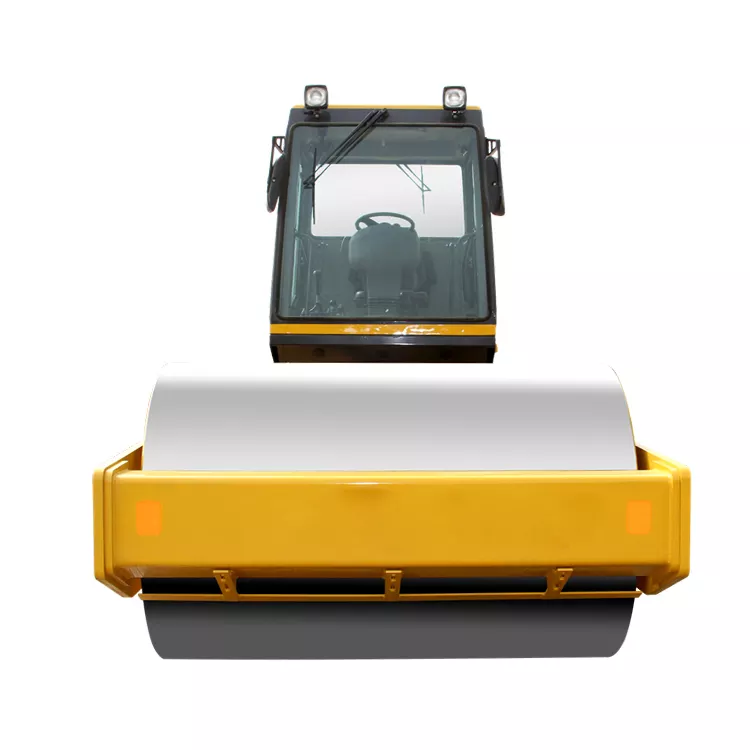

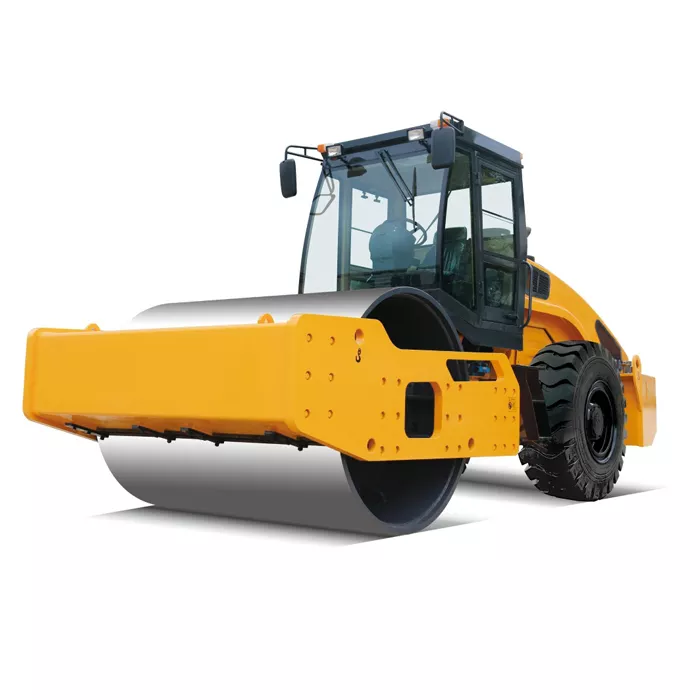

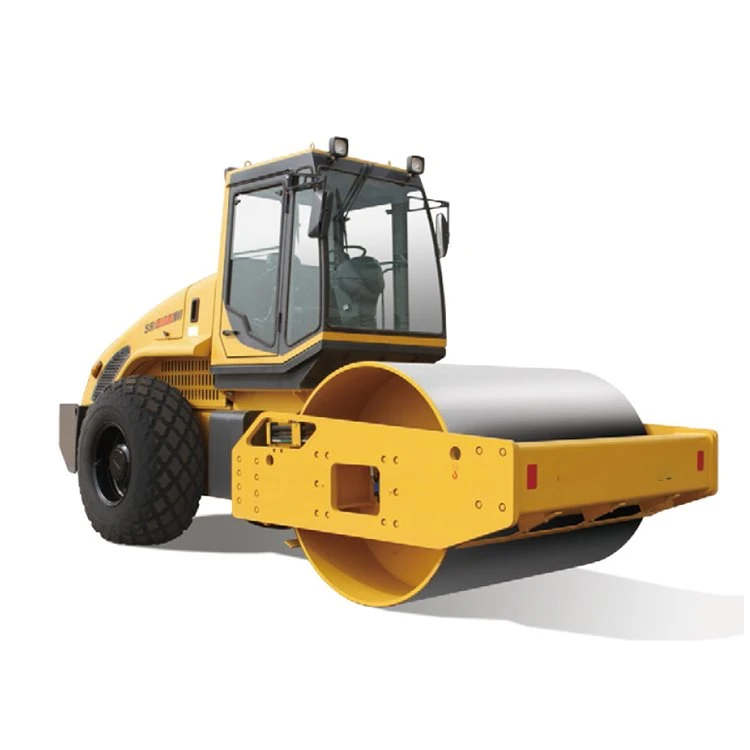

SR14 (14ton Road Roller) hydraulic drive can easily realize stepless speed regulation, with a large speed regulation range, and the speed can be adjusted during the system operation.
SR14 (14ton Road Roller) dual-drive dual-vibration has better compaction ability and faster work efficiency than single-drive.
SR14 (14ton Road Roller) full hydraulic transmission, full electro-hydraulic control, easy operation and high degree of automation;
SR14 (14ton Road Roller) closed cab with beautiful appearance and wide field of vision.
Parameter name | SR14 |
Performance parameters | |
Operating weight (Kg) | 14000 |
Exciting force (KN) | 310/200 |
Vibration frequency (Hz) | 30/35 |
Nominal amplitude (mm) | 1.65/0.70 |
Gradeability (%) | 45 |
Engine | |
Engine model | Weichai WP6G140E22 |
Rated power/rated speed (kW/rpm) | 105kw/2200rpm |
Overall dimensions | |
Overall dimensions of machine (mm) | 6140*2280*3100 |
Driving performance | |
Forward speed (km/h) | F1: 0-5.5, F2: 0-10 |
Reversing speed (km/h) | R1: 0-5.5, R2: 0-10 |
Chassis System | |
Wheelbase (mm) | 3100 |
Tank capacity | |
Fuel tank (L) | 240 |
Working device | |
Compacting width（mm） | 2130 |
