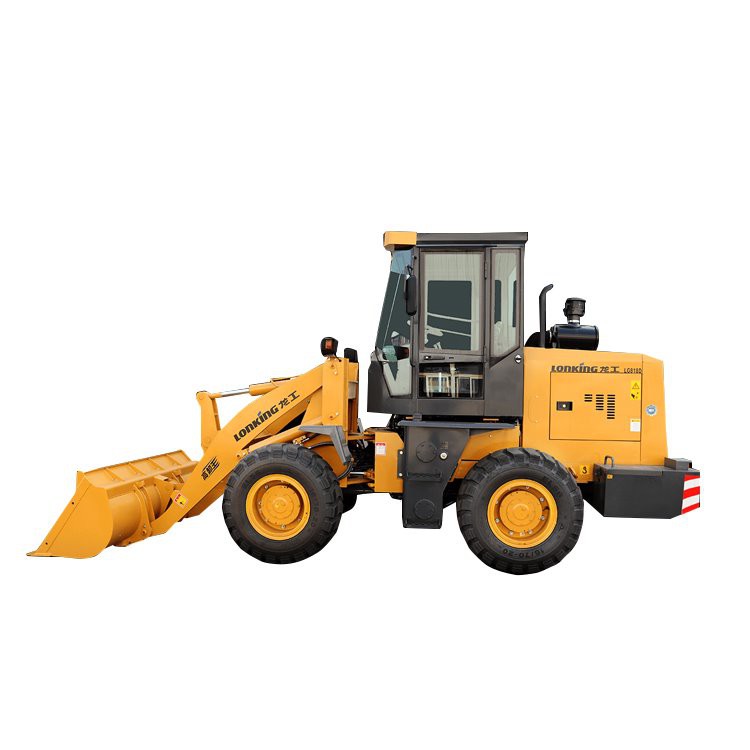

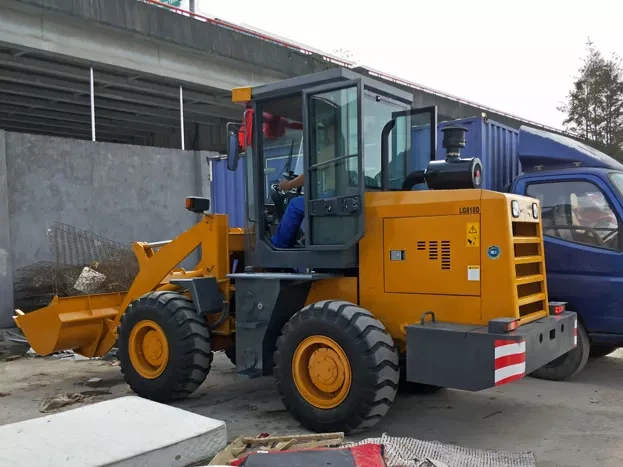

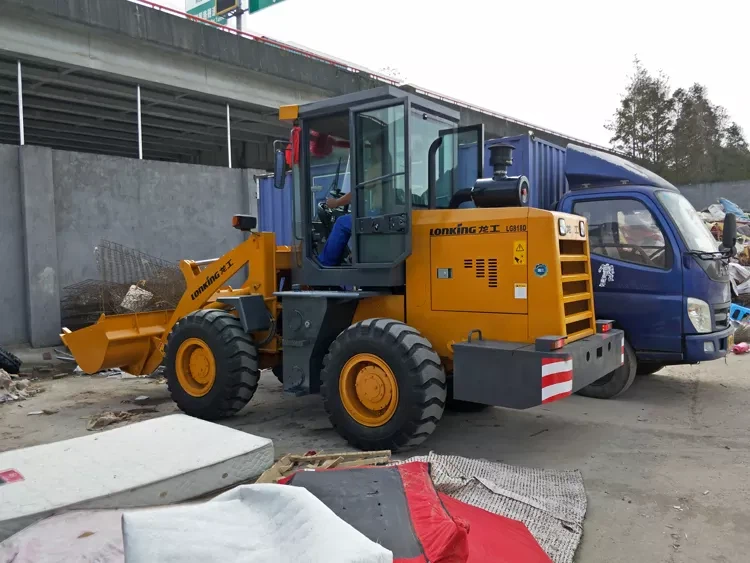

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of small loader 1ton in China. Please feel free to buy cheap small loader 1ton for sale here from our factory. Quality products and reasonable price are available.
Product Features
High-quality, industry-leading manufacturing equipment and technological processes are the most reliable guarantee of quality.
Small Loader 1TON LG818D adopts hydraulic transmission and torque converter to make the power transmission more reliable and the operation more flexible.
Large wheelbase, reasonable bridge load distribution. Large traction force and breakout force. The whole machine travels, and the operation stability is good.
The fuel tank and hydraulic fuel tank are reasonably arranged, and the hood is aerodynamically designed to keep the engine's heat dissipation state in a good state. The hood opens on the side for easy maintenance and repair.
The rear axle can swing up and down around the center, which has good off-road performance and passing performance, and is suitable for driving and working on rough roads.
The pin bushing adopts a sealed structure, which is dust-proof and anti-fouling, and improves the service life. The pin shaft oil port is externally located for easy maintenance.
The Small Loader 1TON LG818D adopts an articulated structure, with a small turning radius and flexible steering, which is suitable for working in narrow spaces.
Small Loader 1TON LG818D adopts a single-pump shunt system, which saves energy and reduces consumption, and has high operating efficiency.
The frame structure adopts the finite element analysis technology, and the working stress part adopts the structure with enhanced rigidity and strength.
The design of the connecting rod mechanism of the working device is optimized, the bucket can realize the automatic leveling function, the action time of the working device is shortened, and the operation efficiency of the whole machine is improved;
Equipped with high wear-resistant blade, the service life of the bucket is improved.
A variety of special working devices such as wood clipping, grass grabbing, and paper grabbing can be selected.
Configuration parameters
Model | Small Loader 1TON LG818D | |
Rated bucket capacity/width | m³/mm | 1.07/2200Welded bucket teeth,Assemble bucket teeth and auxiliary blade |
Optional bucket capacity/width | m³/mm | 0.97/2000、0.68/1410、0.58/1200 |
Rated load capacity | kg | 1800 |
Max. Rising power | kN | 52 |
Boom lift time | s | 4.9 |
Time used for lifting, loading and unloading, landing | s | 9.4 |
Max. Walking speed | Km/h | 20.8 |
Overall weight | kg | 5520 |
Overall length | mm | 5700 |
Overall width | mm | 2200 |
Overall height | mm | 2930 |
Max. Unload height | mm | 2700 |
Unload distance | mm | 910 |
Engine model | LR4B3ZU22/0625 | |
Rated speed | r/min | 2200 |
Rated power | kw | 62.5 |
