Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 12ton double drum roller in China. Please feel free to buy cheap 12ton double drum roller for sale here from our factory. Quality products and reasonable price are available.

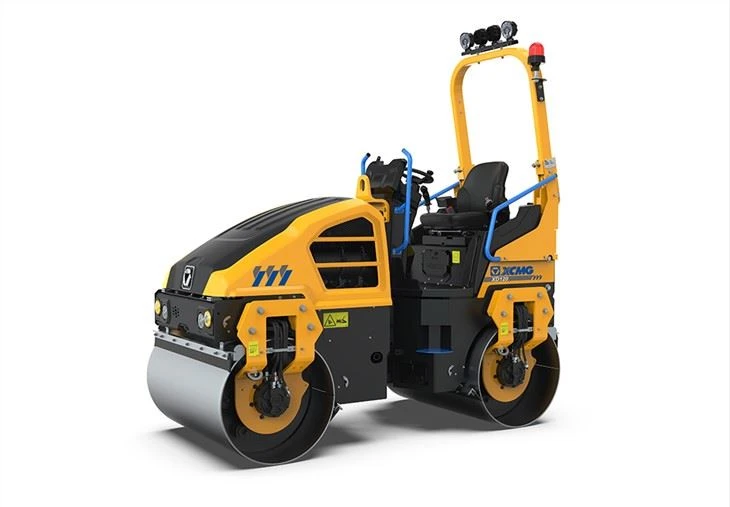

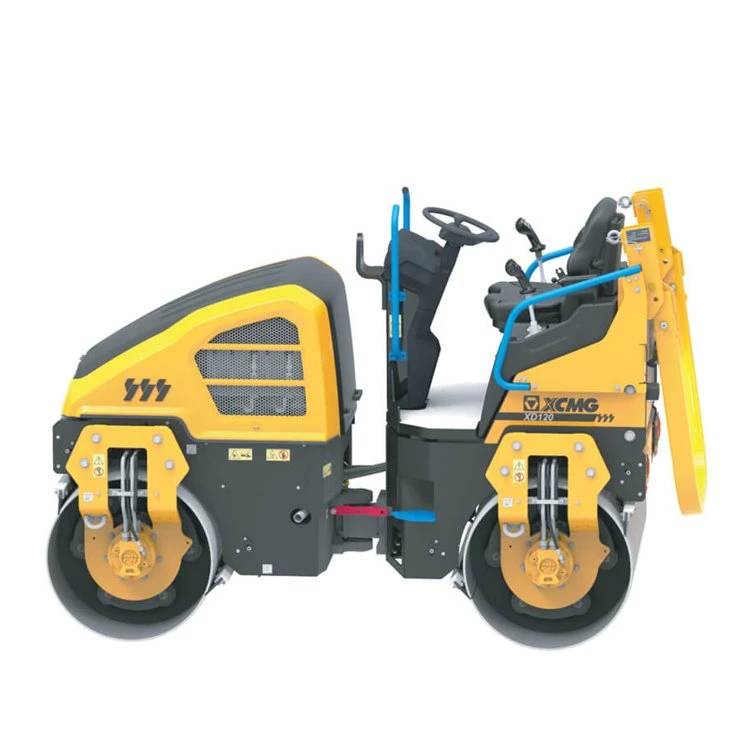

XD120 (12ton double drum roller) double-drive double-vibration roller has the advantages of compact structure, flexible transformation, small blind area, simple operation, etc. It is very suitable for European and American markets.
The 12ton double drum roller engine conforms to the Euro V standard and has the advantages of low fuel consumption, low noise and environmental protection.
The 12ton double drum roller is compacted by high-frequency large-diameter rollers, and the efficiency is increased by 20%. It is specially designed for high-grade asphalt pavement work.
The humanized design of the operation switch is arranged according to the function and frequency of use, which is convenient for operation.
The large-capacity water tank and multi-speed adjustable sprinkler head greatly improve the cruising range and work efficiency of the equipment.
Open the cover and the front and rear light brackets at a large angle, which can be opened for maintenance.
Parameter | Unit | XD120 | |
Weight distribution | Working weight | kg | 12300 |
Front wheel distribution weight | 6150 | ||
Rear wheel distribution weight | 6150 | ||
Maneuverability | Speed range | km/h | Gear I 0-6 / Gear II 0-12 |
Theoretical gradeability | % | 35 | |
Minimum turning radius (in/out) | mm | 4800/6930 | |
Largest amount of crab | mm | ±160 | |
Swing angle | ° | ±8 | |
Steering angle | ° | ±35 | |
Compaction performance | Static linear load | N/cm | 283/283 |
Nominal amplitude | mm | 0.3/0.75 | |
Vibration frequency | Hz | 55/45 | |
Exciting force (high frequency/low frequency) | kN | 85/140 | |
Engine | rated power | kw | 119 |
rated speed | r/min | 2200 | |
