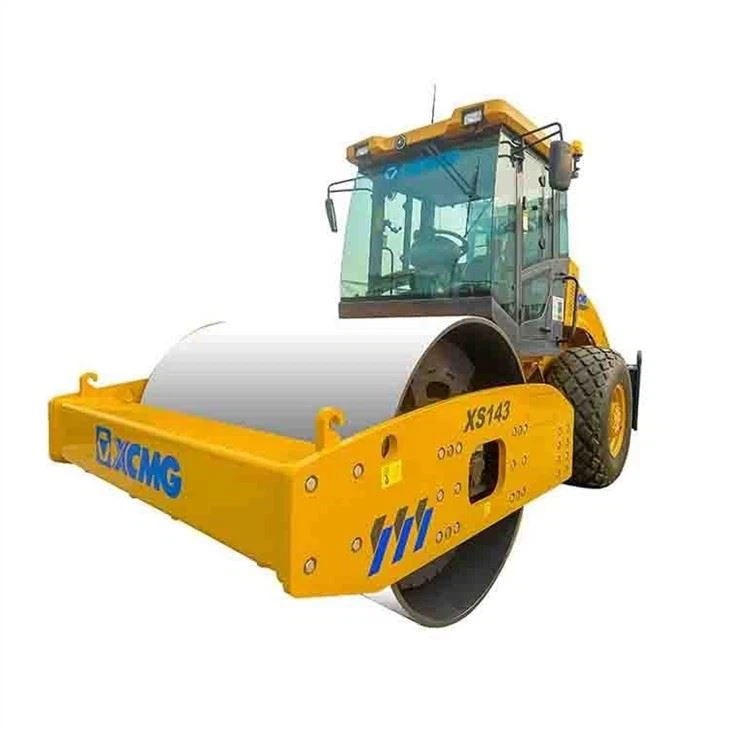

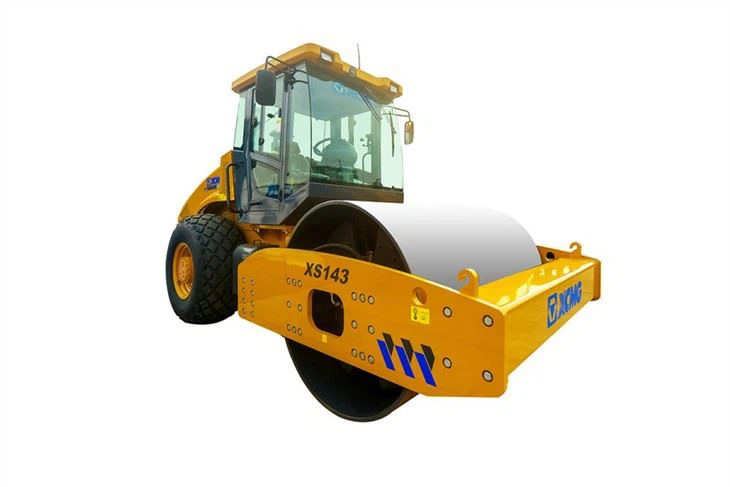

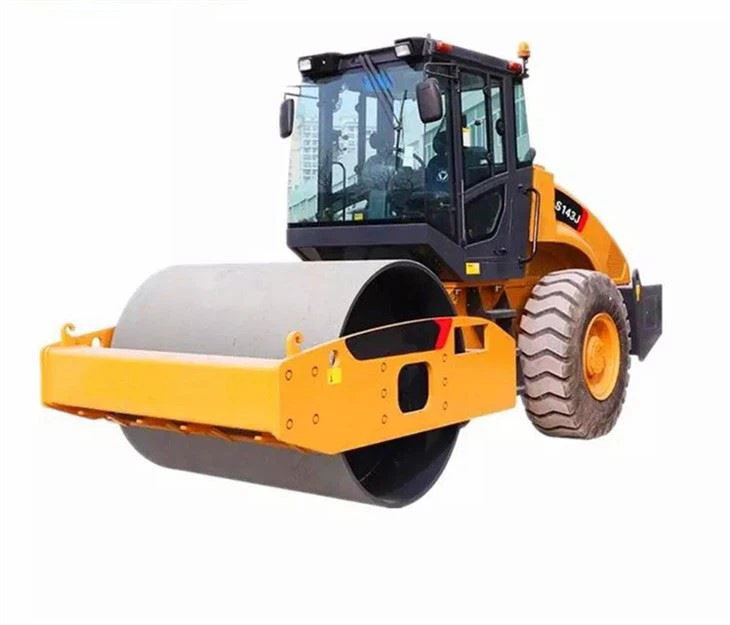

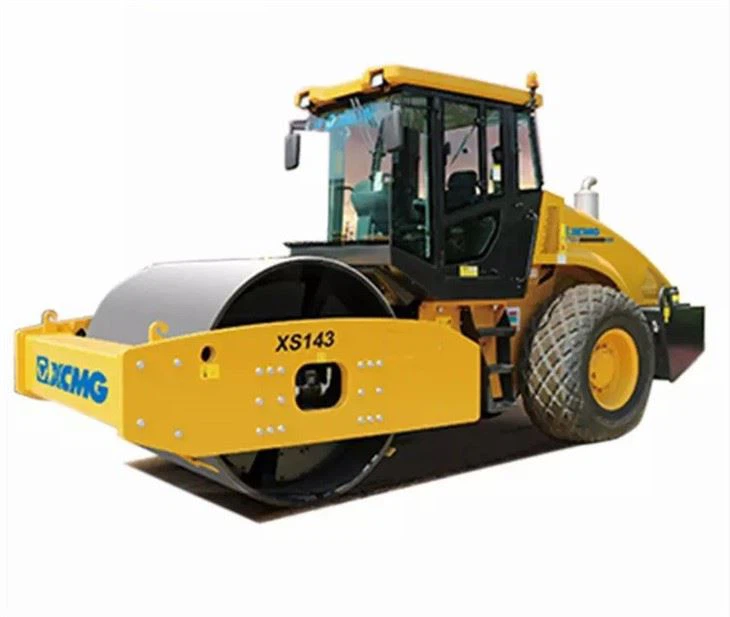

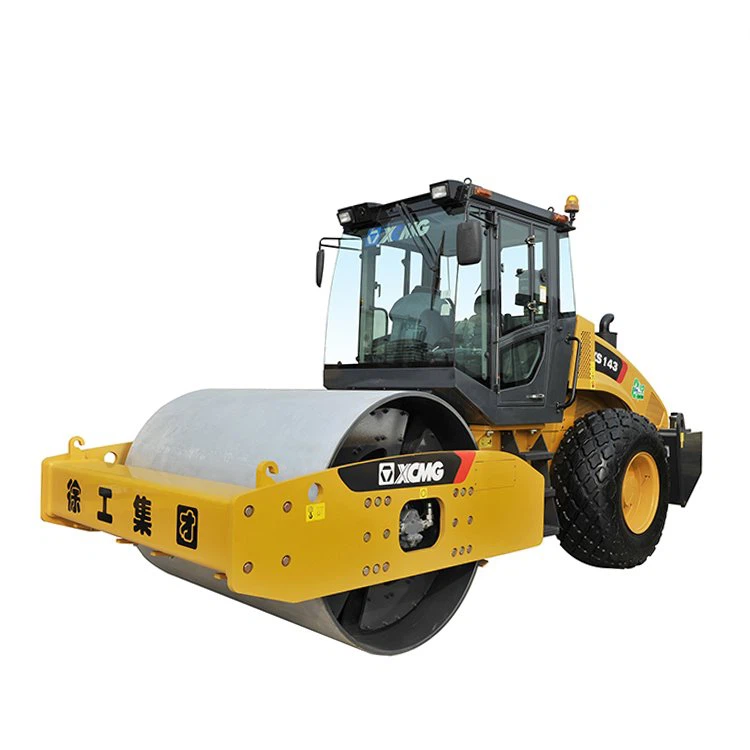

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 14 ton road roller in China. Please feel free to buy cheap 14 ton road roller for sale here from our factory. Quality products and reasonable price are available.
The 14 ton road roller is a heat dissipation system specially designed for high temperature areas, with high power and fast heat dissipation.
The double-layer air filter system can effectively prevent the damage of wind, sand and dust to the engine and effectively improve the service life of the equipment.
The oil filter replacement cycle of the 14 ton road roller can be as long as 500 hours, saving maintenance costs.
The 14 ton road roller adopts a closed hydraulic system, which has the advantages of infinitely variable speed, stable transmission, stable operation and compact structure.
The 14 ton road roller is a heavy-duty wet drive axle that can maintain good lubricity as the temperature rises, automatically adapt to harsh environments and improve gear durability.
Item | Unit | XS143 | |
Weight | Operating weight | kg | 14000 |
Distributed mass of front drum | kg | 8000 | |
Distributed mass of rear drum | kg | 6000 | |
Static linear load | kg/cm | 37.6 | |
Driving performance data | Driving speed (gear I) | km/h | 5.3 |
Driving speed (gear II) | km/h | 10.8 | |
Theoretical gradeability | % | 45 | |
Minimum turning radius | mm | 6415 | |
Tire specification | - | 23.1*26 | |
Ply rating | - | 12 | |
Air pressure | kPa | 150-170 | |
Power system | Engine manufacturer | - | DONGFENG CUMMINS |
Type | - | 6BTAA5.9-C170 | |
Rated power | kW (hp) | 125 | |
Rated speed | rpm | 2200 | |
Voltage | V | 24 | |
Vibration system | Vibrational frequency | Hz | 28/33 |
Nominal amplitude | mm | 1.8/0.9 | |
Exciting force | kN | 305/225 | |
Volume | Machine oil | L | 18 |
Fuel tank | L | 240 | |
Hydraulic tank | L | 240 | |
Coolant | L | 20 | |
Front drum chamber | L | 45 | |
Front drum reducer | L | 3 | |
Axle | L | 24 | |
