Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of small vibratory roller in China. Please feel free to buy cheap small vibratory roller for sale here from our factory. Quality products and reasonable price are available.

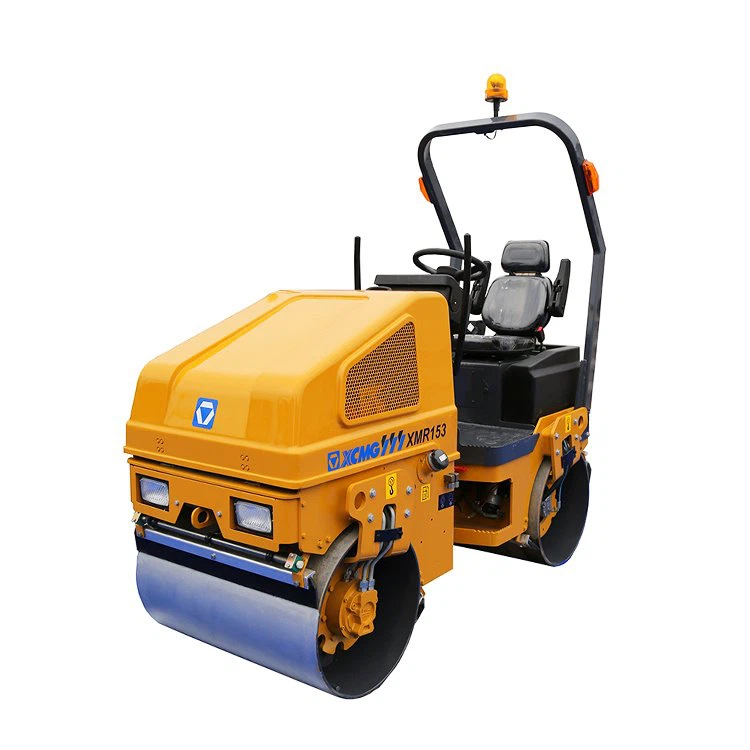

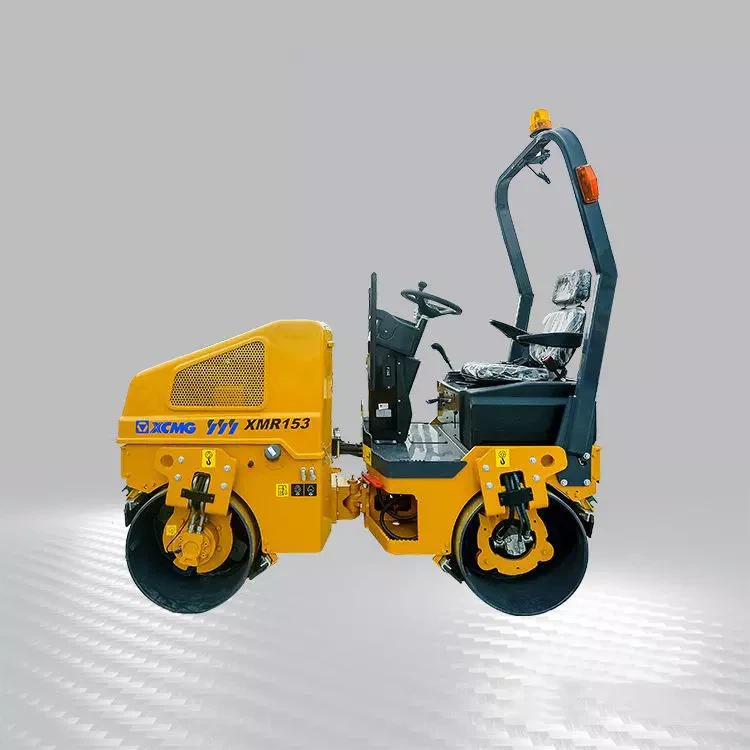

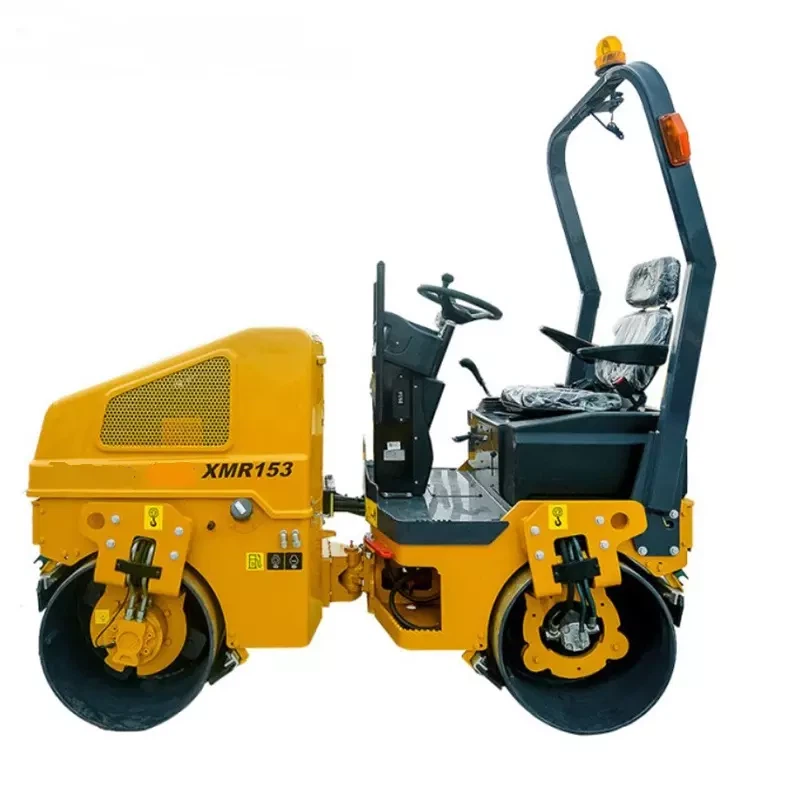

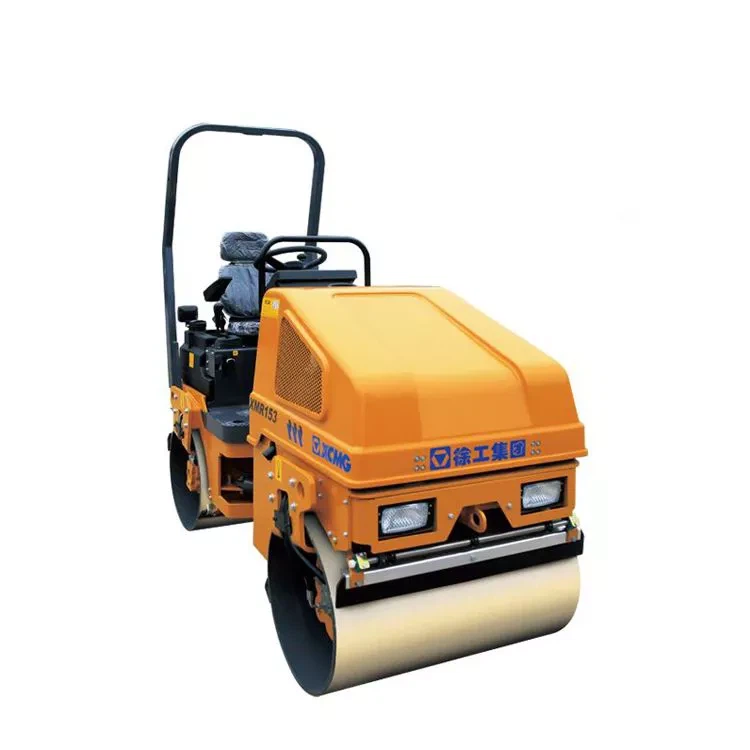

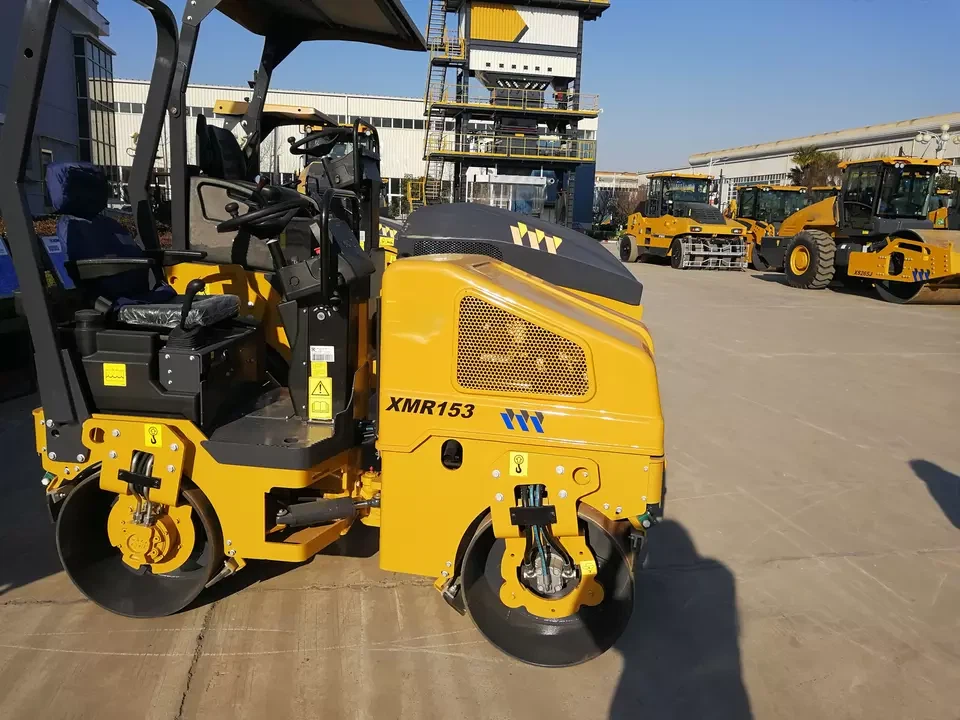

The XMR153 (small vibratory roller) weighs 1.68 tons. It is a light-duty vibratory roller. It is suitable for the compaction of the edges and surfaces of asphalt, cement and other projects, as well as the compaction of the bottom and base layers, as well as sand and gravel materials. It is suitable for small and medium-sized working conditions such as parking lot construction, road construction, and garden renovation.
XMR153 (small vibratory roller) adopts closed hydraulic drive system to realize stepless speed change and make the equipment run more smoothly. The braking adopts neutral braking, emergency braking, and parking braking, with short braking distance and large torque. At the same time, the front view of the equipment is less than 1*0.75m, and the rear view is not shading, and a good vision provides a guarantee for construction safety.
The vibration frame of XMR153 (small vibratory roller) is smaller than the vibration roller, and the compaction can be observed during construction.
The front and rear rollers of the XMR153 (small vibratory roller) can be adjusted to vibrate independently and simultaneously to help you accomplish different work needs.
High frequency vibration and vibration force greatly improve work efficiency and compaction effect.
Iltem | Unit | XMR153 |
Operating mass | kg | 1680 |
Static linear load (front drum/rear drum) | N/cm | 92/92 |
Range of speed | km/h | 0～10.5 |
Theoretical gradeability | % | 30 |
Minimum turning radius | mm | 3050 |
Minimum ground clearance | mm | 235 |
Wheel base | mm | 1550 |
Steering angle | ° | ±34 |
Swing angle | ° | ±7 |
Vibrational frequency | Hz | 65 |
Exciting force | kN | 17 |
Drum diameter | mm | 582 |
Drum width | mm | 900 |
Engine rated power | kW | 17.6 |
Engine rated speed | r/min | 2500 |
