Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 26ton single drum road roller in China. Please feel free to buy cheap 26ton single drum road roller for sale here from our factory. Quality products and reasonable price are available.

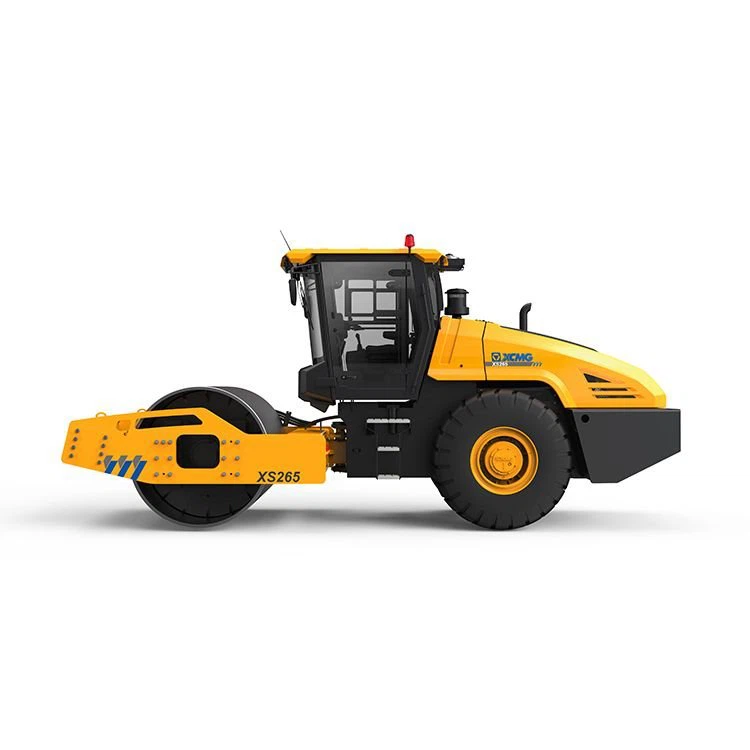

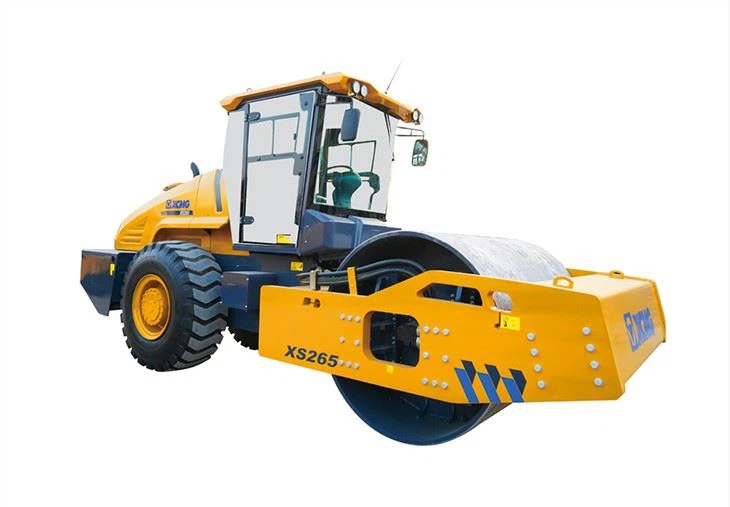

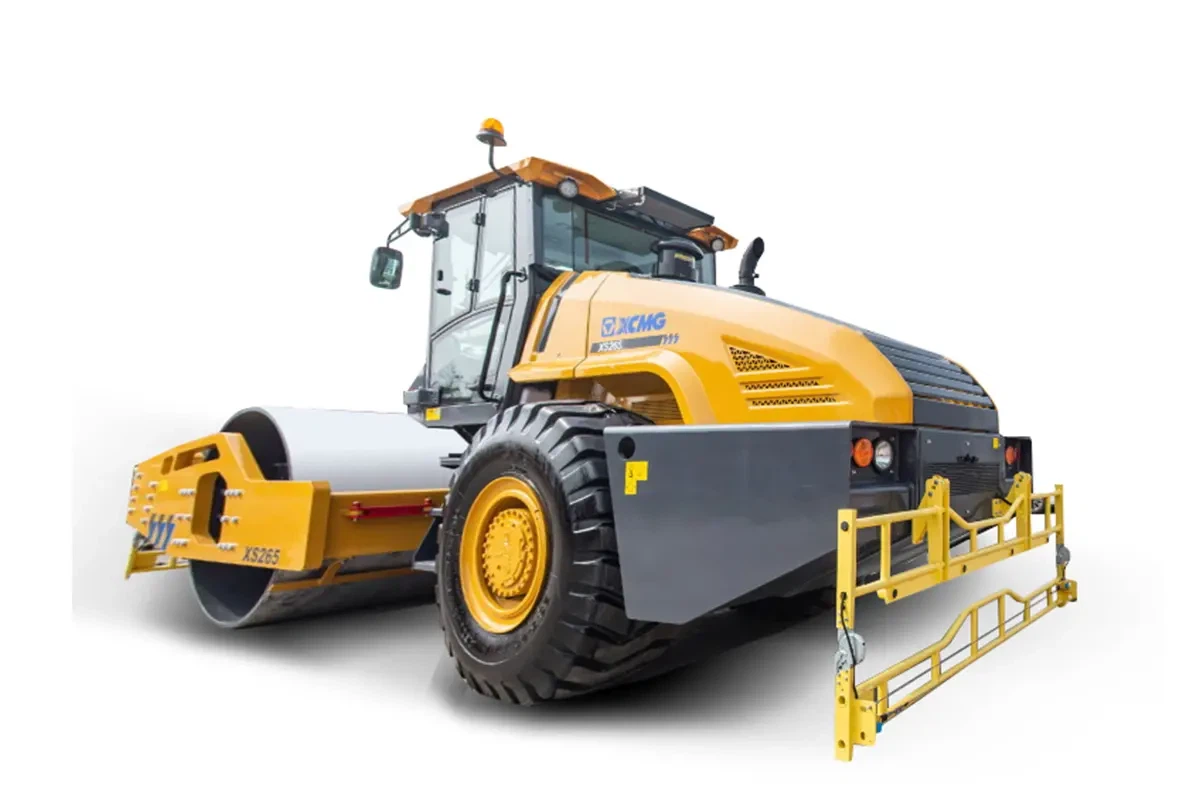

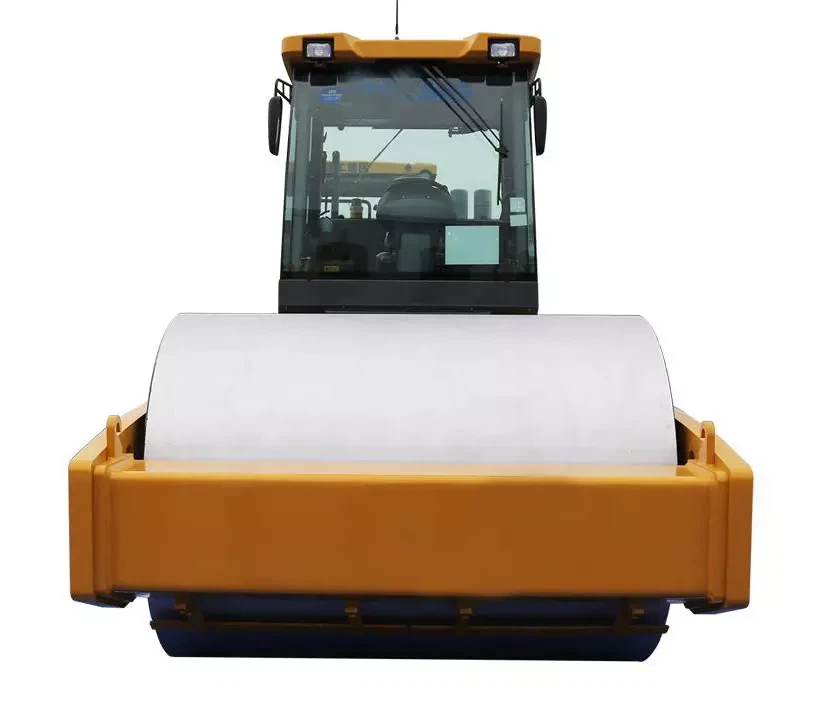

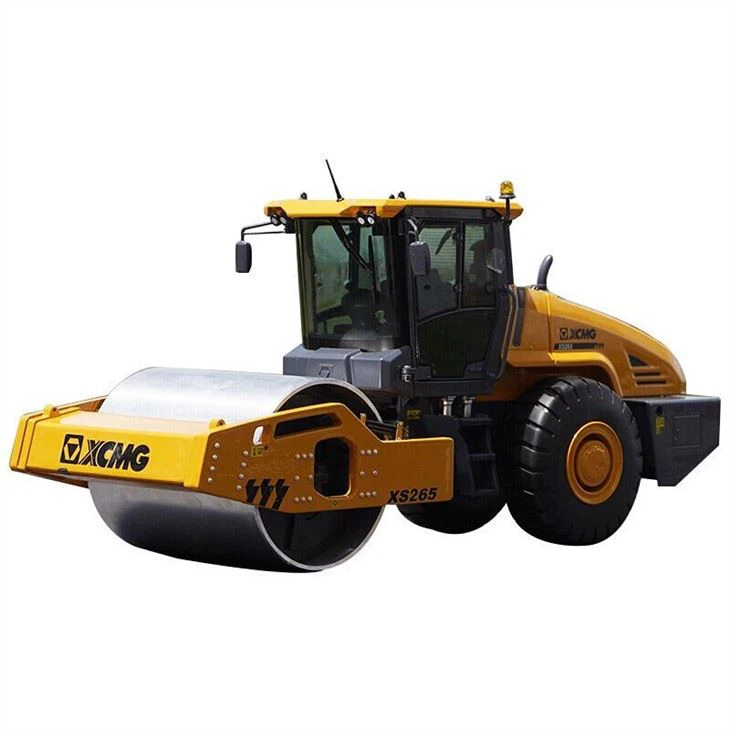

XS265 (26ton Single Drum Road Roller) single drum road roller is a medium-sized, self-propelled, fully hydraulic vibratory road roller with large excitation force, high compaction efficiency and good compaction quality. The 26ton Single Drum Road Roller is mainly used for coarse base and lower layers Coarse and high rock fill in the compaction operation. High-speed rail, high-grade highways, airports, ports, dams and industrial construction sites often use the 26ton Single Drum Road Roller.
Features
1. Hydraulic system
* Adopt imported closed hydraulic drive system, composed of variable pump and motor, to ensure better driving performance and climbing ability.
* Two-speed stepless speed change to ensure the best working speed under different working conditions.
2. Cummins engine
Equipped with Cummins electronically controlled engine, water-cooled, turbocharged, large power reserve, low fuel consumption and low noise. Euro III emission standard.
3. Braking system
The braking system consists of a drive axle, a front drum reducer wet brake and a closed hydraulic system brake. It has the functions of driving, parking and emergency braking to ensure driving safety.
Item | Unit | XS265 |
Operating mass | kg | 26000 |
Distributed mass of driving wheel | kg | 13500 |
Distributed mass of vibration wheel | kg | 6500 |
Static line load | N/cm | 621 |
Vibration frequency | Hz | 28/33 |
Theoretical amplitude | mm | 1.86/0.93 |
Exciting force | kN | 370/255 |
Speed range | km/h | 0-10.4 |
Wheel base | mm | 3310 |
Compaction width | mm | 2130 |
Theoretical gradeability | % | 50 |
Minimum turn radius | mm | 6500 |
Drum diameter | mm | 1600 |
Minimum ground clearance | mm | 466 |
Engine Rated speed | r/min | 2000 |
Engine Rated power | kW | 140 |
Overall dimension (length*width*height) | mm | 6990×2470×3260mm |
