Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of payloader 6.5ton in China. Please feel free to buy cheap payloader 6.5ton for sale here from our factory. Quality products and reasonable price are available.
Product Features

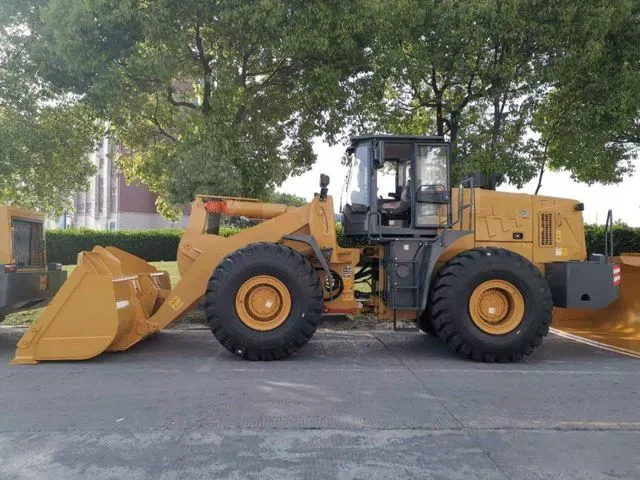

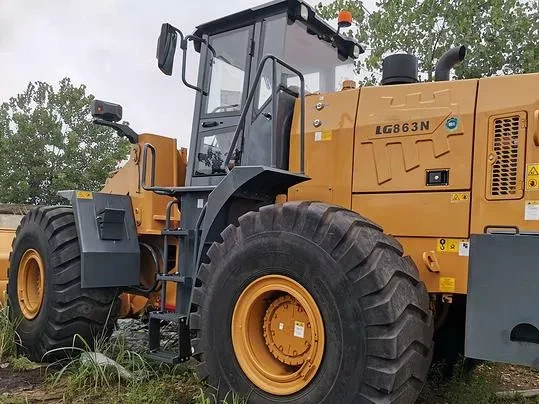

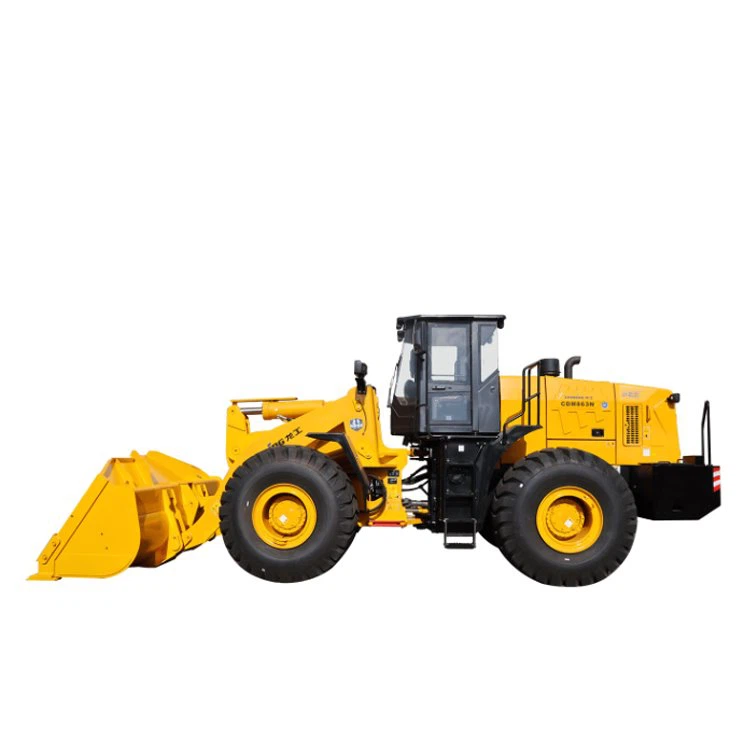

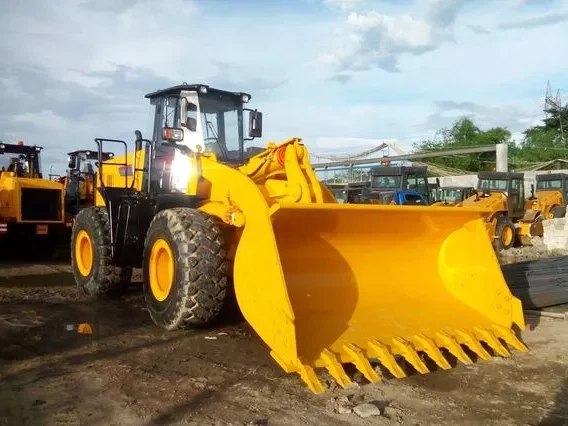

Payloader 6.5ton CDM863N is equipped with national emission engine, air-to-air intercooler, four-valve structure, low noise, full combustion and high power efficiency.
Payloader 6.5ton CDM863N is equipped with 60-type special gearbox and Longgong self-made heavy-duty drive axle, which is more reliable.
Reinforced toothed transmission shaft for more reliable transmission.
The payloader 6.5ton CDM863N is equipped with a pilot hydraulic operating system as standard, which is flexible, precise and more efficient in operation.
Super-strong frame structure, long wheelbase centering arrangement, reasonable bridge load distribution, more robust and durable, and the heavy load adaptability is further improved to meet the requirements of harsh working conditions.
Payloader 6.5ton CDM863N comes standard with 26.5-25 tires, which greatly improves the single-wheel bearing capacity.
Ultra-high unloading height, large bucket capacity and high-strength design meet the needs of various working conditions.
Optional bucket capacity 3.8m³ rock bucket, 4.2m³ gravel bucket and 5.6m³ coal bucket.
The paint of the whole machine adopts high-grade paint, which has extremely high gloss and wear resistance, and the hardness and thickness of the paint film are fuller.
Model | payloader 6.5ton CDM863N | |
Rated bucket capacity | m³ | 3.5-5.6 |
Rated load capacity | kg | 6000-6500 |
Rated power | Kw/rpm | 178/2200 |
Overall operating weight | kg | 21950±300 |
Max. traction force | kN | 175 |
Max. Rising power | kN | 200 |
Unload height | mm | 3580 |
