Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of d9 crawler dozer in China. Please feel free to buy cheap d9 crawler dozer for sale here from our factory. Quality products and reasonable price are available.

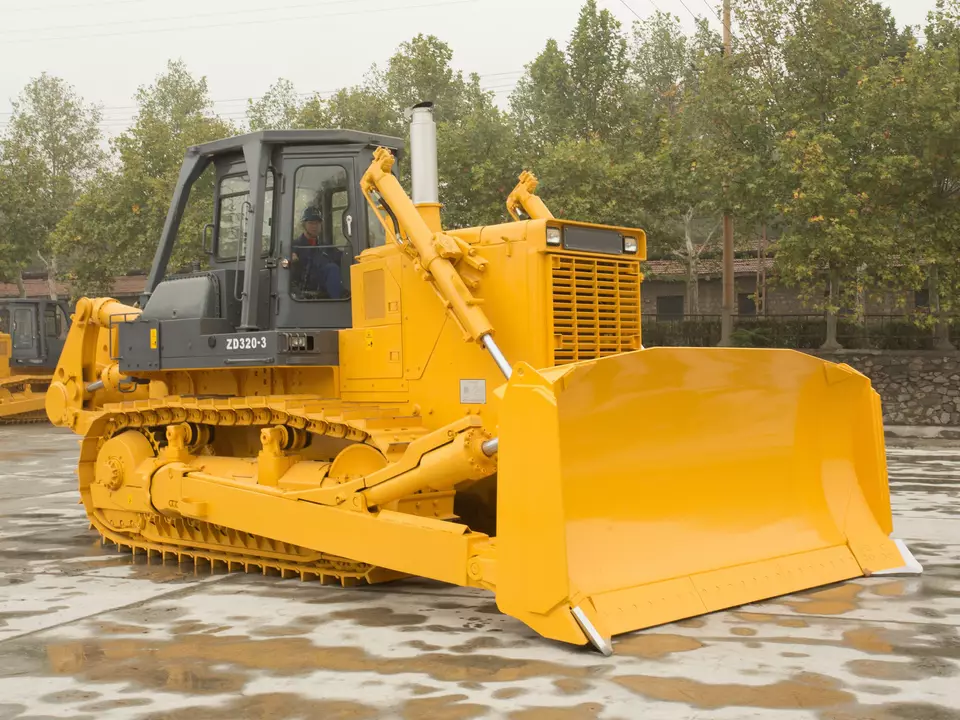

ZD320 bulldozer (ZOOMLION for d9 dozer) is developed on the basis of absorbing the advanced technology of products in the same industry at home and abroad. It is a high-horsepower bulldozer with advanced structure, high technical grade and large traction.
ZD320 bulldozer (ZOOMLION for d9 dozer) power system is equipped with Cummins NTA855-C360 turbocharged engine, ZD320 bulldozer (ZOOMLION for d9 dozer) has a global perfect after-sales service system, high reliability, long service life, low fuel consumption and low noise. It can meet the working requirements of 3000m altitude and high temperature environment.
The ZD320M-3 desert bulldozer is equipped with an air conditioning system, a dedicated water tank for desert areas, widened track shoes and an air turbine pre-filter system. The engine guard adopts a special ventilation and heat dissipation design. Optional three-stage air filtration system, cab window UV protection film and exposed hose UV protection. Suitable for working in desert areas.
The ZD320(L)-3 cold zone bulldozer is equipped with a heated intake air preheater, fuel hose and fuel filter heating jacket, double-glazed cab, heater, low temperature resistant large capacity battery and cold resistant sealing material. It can work in a low temperature environment of -50℃.
Items | Units | ZD320-3 | ZD320M-3 | |
Key Technical Parameter | Blade type | - | Small Semi-U Blade | Small Semi-U Blade |
Working mass | kg | 35044 | 35100 | |
Blade capacity | m3 | 11.6 | 11.6 | |
Engine model | - | NTA855-C360 | NTA855-C360 | |
Rated power/Slewing speed | kW/rpm | 257 | 257 | |
Max. torque | N.m/rpm | 1509/1400 | 1412/1400 | |
Min. fuel consumption | g/kW.h | 242 | 242 | |
Max. Drawbar pull | Kn | 302 | 355 | |
Ground pressure | kPa | 106 | 106 | |
Gradeability | 30 | 30 | ||
Traveling speed of forward | km/h | 3.6/6.6/11.5 | 3.7/6.8/11.8 | |
Traveling speed of Reverse | km/h | 4.4/7.8/13.5 | 4.5/8.2/13.7 | |
Basic Technical Parameter | Height of cab | mm | 3600 | 3570 |
Height of ROPS | mm | 3687 | 3673 | |
Ground contact length | mm | 3150 | 3150 | |
Height of blade | mm | 1705 | 1553 | |
Track center distance | mm | 2140 | 2140 | |
Height of grouser | mm | 80 | 80 | |
Track shoe width | mm | 560 | 560 | |
Operating Range | Max. lift height of dozer | mm | 1560 | 1560 |
Max. drop depth | mm | 560 | 560 | |
Max. lift height of ripper | mm | single-shank 960 | 890 | |
Max. ripping depth of ripper | mm | single-shank 1235 | 835 | |
Max. tilt | mm | 1000 | 1000 | |
