Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of single drum road roller in China. Please feel free to buy cheap single drum road roller for sale here from our factory. Quality products and reasonable price are available.

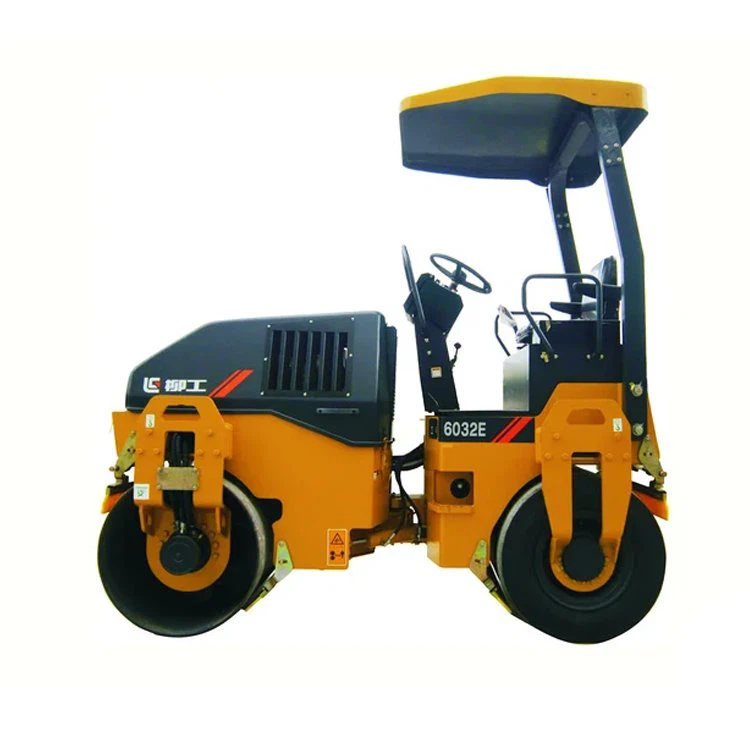

6032E (single drum road roller) roller has full hydraulic drive vibration, stepless speed change, easy operation, high frequency and low amplitude technology, not only high work efficiency, but also good compaction effect.
6032E (single drum road roller) has the first series arrangement of vibration pump and traveling pump, which reduces energy consumption and simplifies structure; adopts imported brand hydraulic pump and motor, with high stability and long service life;
The overall matching design is optimized, the excitation force is large, and the work efficiency is high;
The single drum road roller has a variety of configuration options: double-drive double-vibration, double-drive single-vibration, single-drive single-vibration, to meet the needs of different working conditions; single-drive single-vibration is without roof.
Parameter name | 6032E |
Operating Mass | 3360 kg |
Mass On Front Drum | 1620 kg |
Front Drum Static Linear Load | 135 N/cm |
Rear Drum Static Linear Load | 145 N/cm |
Model | Perkins 403D-15T |
Emission Regulation | Stage III |
Rated Power | 27.3 kW (37 hp) @ 2600 rpm |
Vibration Frequency | 60 Hz |
Nominal Amplitude | 0.45 mm |
Centrifugal Force | 33.5 kN |
Drum Diameter | 750 mm |
Drum Width | 1200 mm |
N Maximum Speed fwd | 10 km/h |
Theoretical Gradeability | 30% |
Min. Ground Clearance | 265 mm |
Wheelbase | 1860 mm |
Min. Outside Turning Radius | 4050 mm |
Overall Length | 2610 mm |
Overall Width | 1310 mm |
Overall Height | 2645 mm |
