Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of zoomlion for 25 ton in China. Please feel free to buy cheap zoomlion for 25 ton for sale here from our factory. Quality products and reasonable price are available.
Product Features

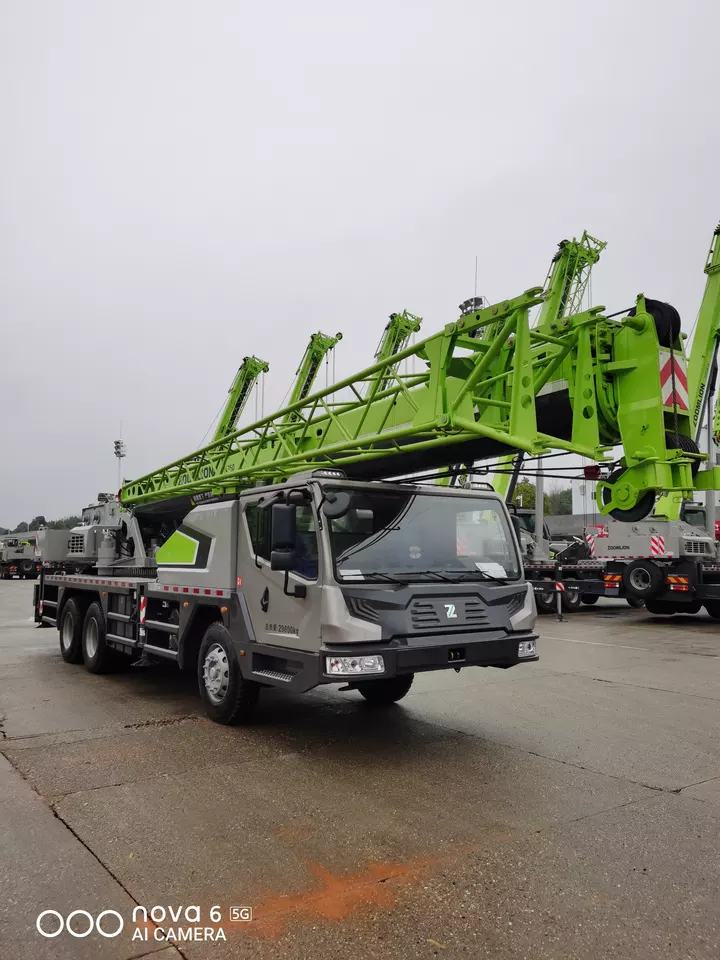

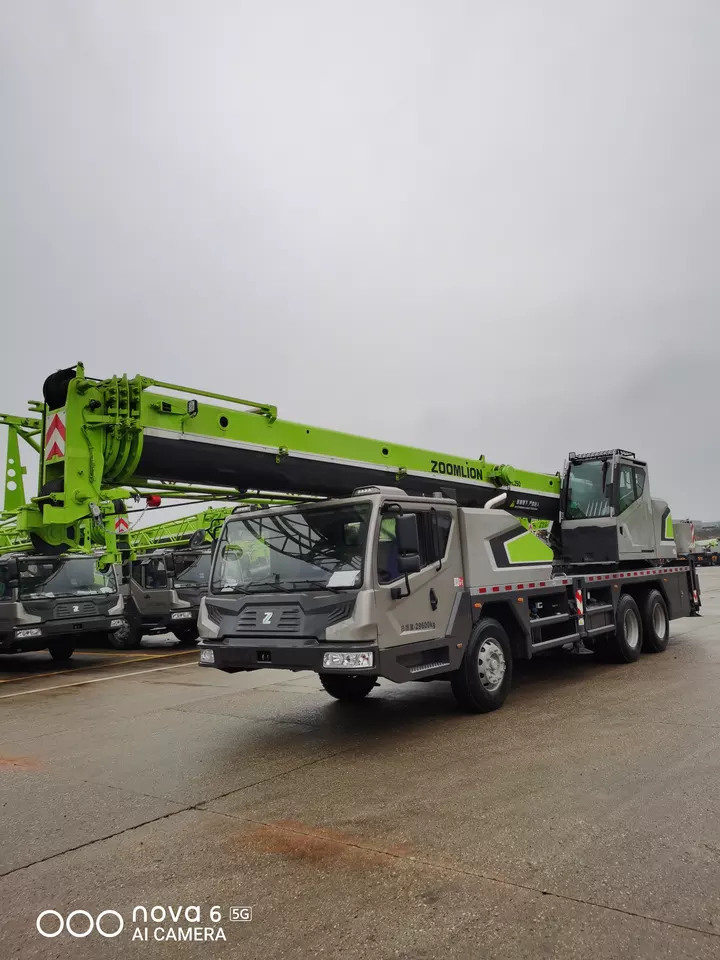

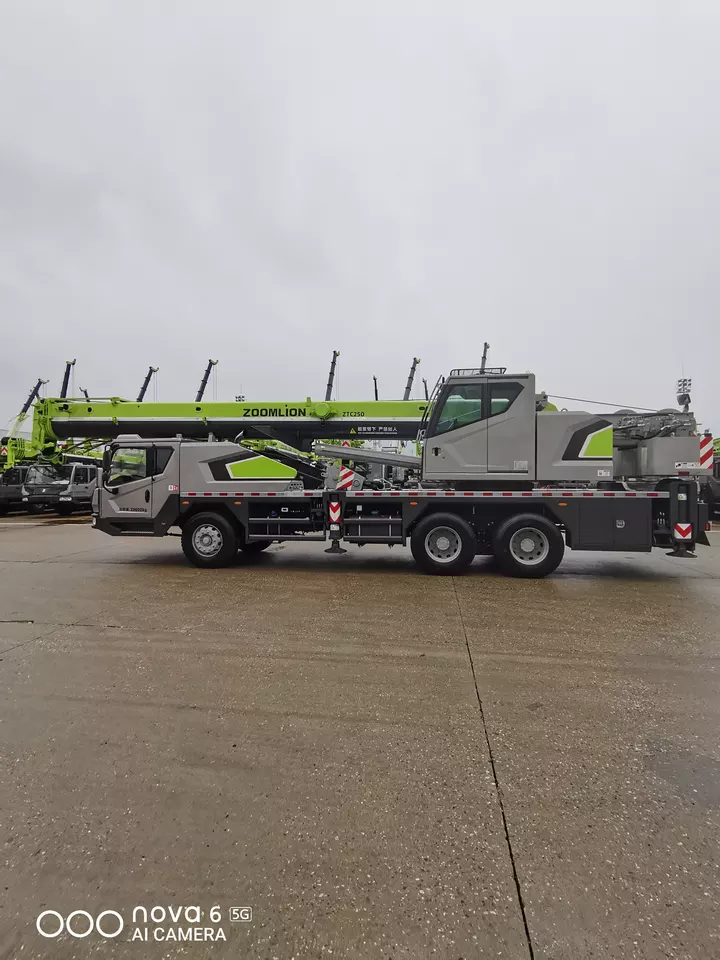

Zoomlion for 25 ton ZTC250V451.1 truck crane is a 25-ton 4-section boom 4.0 truck crane product of ZOOMLION (manual version). zoomlion for 25 ton ZTC250V451.1 follows the principle of "a wheeled crane with strong operating performance, reliable and durable, cost-effective, green and environmental protection", and comprehensively improves its lifting performance, driving performance, reliability, operating economy, green energy saving and environmental protection. The outstanding features are strong performance, high cost performance and high degree of intelligence, so that customers can see the reality and maximize the return on investment.
4-section super-long 35-meter U-shaped main boom, the maximum lifting moment of the basic boom is 960kN m, the maximum lifting moment of the full boom is 672kN m, and the maximum lifting capacity of the full boom is 8t.
The chassis platform of the three-axle heavy-duty truck crane has strong bearing capacity, good passability, maneuverability and driving reliability. The chassis meets the requirements of the G-class vehicle standard, and there is no front and lower protection device.
The comprehensively upgraded handling performance, the swing load sensing system, the initial large displacement variable motor for lifting, the working speed, the smooth movement and the fretting are perfectly balanced.
Low operating cost, zoomlion for 25 ton ZTC250V451.1 adopts quadruple pump and variable motor, which reduces operating fuel consumption by more than 10%. The WP7 engine and 9-speed gearbox are adopted to optimize the matching of the power transmission system and reduce the fuel consumption by 10%.
The all-round vehicle information platform realizes the three-dimensional monitoring of equipment operation.
The new paint with green, environmentally friendly and fashionable texture, the new two-room design, the humanized detail design, and the panoramic wide-body control room provide a convenient and safe operation experience.
Project | Numerical value | Remark | ||
Working performance parameters | Maximum Rated Gross Lifting Weight | kg | 25000 | |
The maximum lifting moment of the basic arm | KN*m | 960 | ||
Maximum lifting moment of the longest main boom | KN*m | 672 | ||
Basic boom maximum lift height | m | 11.4 | ||
Main boom maximum lift height | m | 35.4 | Boom deformation is not considered | |
Maximum lifting height of jib | m | 43.0 | ||
Working speed | Single rope maximum speed (main winch) | m/min | 120 | four floors |
Maximum speed of single rope (auxiliary winch) | m/min | 120 | four floors | |
Boom lifting time | s | 25 | ||
Boom extension time | s | 64 | ||
Swing speed | R/min | 0-3 | ||
Driving parameters | Maximum use altitude | m | 2000 | |
top speed | Km/h | 85 | ||
Maximum grade | % | 42 | ||
Minimum turning diameter | m | ≤20 | ||
Minimum ground clearance | mm | 260 | ||
Fuel consumption per 100 km | L | 28 | ||
Quality parameters | Driving state self-weight (total mass) | kg | 29600 | |
Vehicle curb weight | kg | 29470 | ||
front axle load | kg | 6300 | ||
rear axle load | kg | 23300 | ||
Size parameters | Dimensions (L×W×H) | mm | 13100*2500*3450 | |
Longitudinal distance of outriggers | m | 5.40 | ||
Outrigger lateral distance | m | Full extension 6.2, half extension 4.25 | ||
Tail turning radius | mm | 3265 | ||
main arm length | m | 10.7-35.0 | ||
Main boom elevation | ° | -2-80 | ||
Jib length | m | 8 | ||
Jib mounting angle | ° | 0、15、30 | ||
