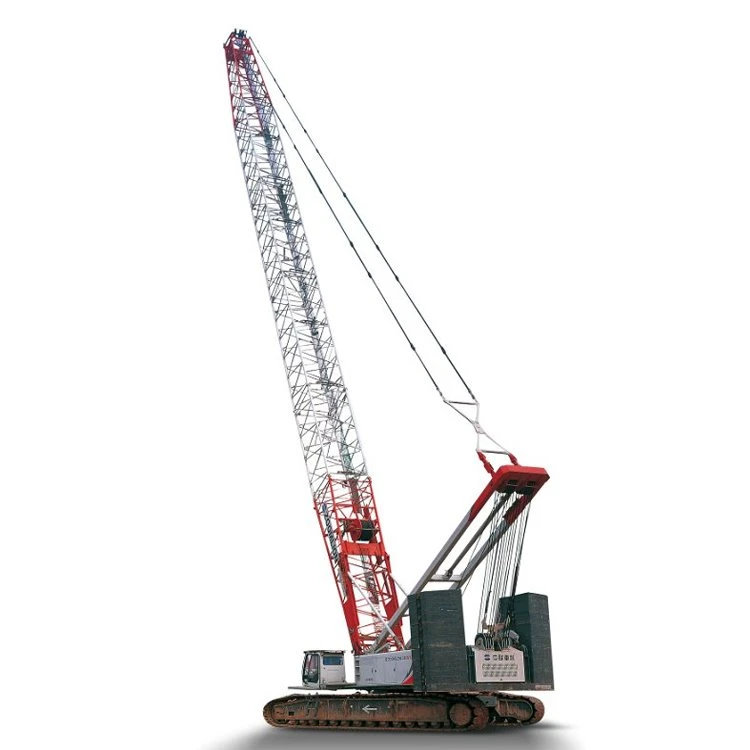

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 180 tons crane truck in China. Please feel free to buy cheap 180 tons crane truck for sale here from our factory. Quality products and reasonable price are available.
EFFICIENT, QUICK AND SAFETY
180 tons crane truck the mechanism operating speed up 20%, and the speed of each mechanism don’t slow down while operating 2 functions simultaneously;
Time of erecting the whole crane is less than 6 hours;
Omni-directional real-time LMI and monitoring system, to ensure safety operation.
CONVENIENT, COMFORTABLE AND INTELLIGENCE
180 tons crane truck the max. Single transport weight is 30.5t, transport width is 3m;
Omni-directional vehicle information platform, real time monitoring equipment operation,
180 tons crane truck the IOT intelligent interaction system make the mobile service come true.
Full view cabin, buttons and switches are all within reach, all-around air conditioner form a comfortable operating space
Item | Unit | Value | Remarks | |
Maximum lifting capacity × radius | t × m | 180 × 5 | ||
Deadweight of crane with basic boom | t | 167 | ||
Length of main boom | Heavy duty boom | m | 20-83 | |
Light duty boom | m | 86-92 | ||
Length of fixed jib | m | 13-31 | ||
Maximum lifting capacity with fixed jib | t | 22 | ||
Fixed jib angle | 。 | 10,30 | ||
Maximum length of main boom + fixed jib | m | 71+31 | Length of main boom 47-71 | |
Length of luffing jib | m | 24-51 | ||
Maximum lifting capacity with luffing jib | t | 38 | ||
Working angle of main boom in crane operation with luffing jib | 。 | 85,75,65 | ||
Maximum length of main boom + luffing jib | m | 56+51 | Length of main boom 38-56 | |
Single rope speed of winches | Main winch(hoisting winch 1) | m/min | 110 | Sixth layer of drum |
Auxiliary Winch(hosting winch 2)) | m/min | 110 | Sixth layer of drum | |
derricking winch | m/min | 30 | Fifth layer of drum | |
Slewing speed | rpm | 1.4 | ||
Traveling speed | km/h | 1.2 | ||
Gradeability | % | 30 | ||
Ground pressure | MPa | 0.1 | ||
Overall dimensions(L × W × H) | m | 10.6×7.1×3.65 | Without A-frame and boom frame | |
Engine | Rated power/rotational speed | Kw/rpm | 227/2000 | QSL9-C305 |
Max. output torque/rotational speed | Nm/rpm | 1505/1400 | ||
Exhaust emission standard | U.S.EPA Tier 3 and EU Stage 3 | |||
Distance between track center × crawler contact length × crawler shoe width | mm | 6000×7750×1100 | ||
