Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 500 ton crane truck in China. Please feel free to buy cheap 500 ton crane truck for sale here from our factory. Quality products and reasonable price are available.
Product Features

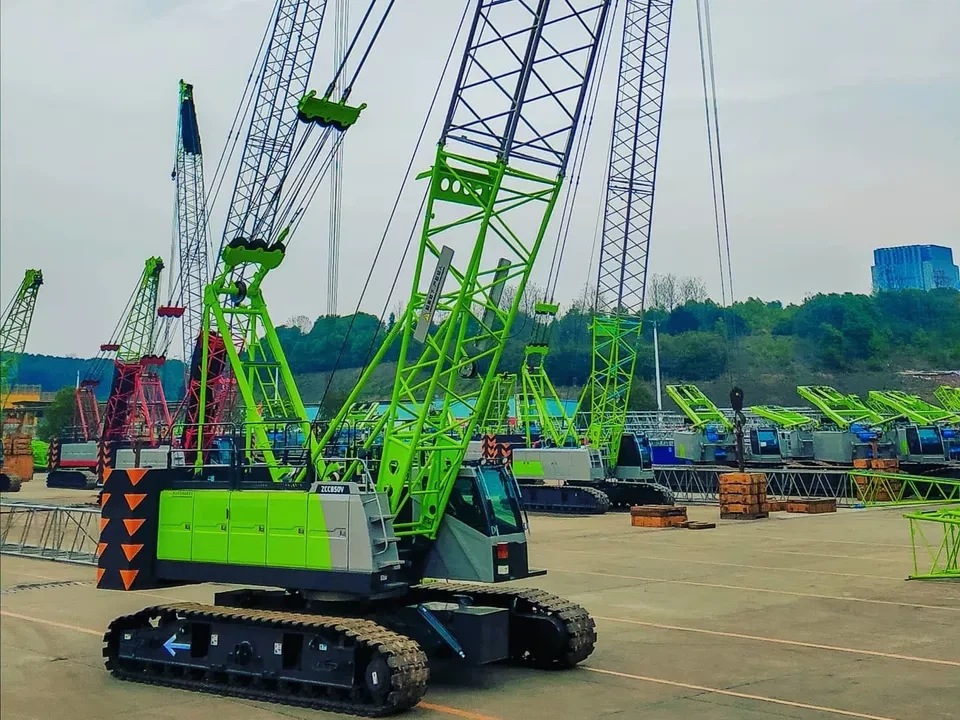

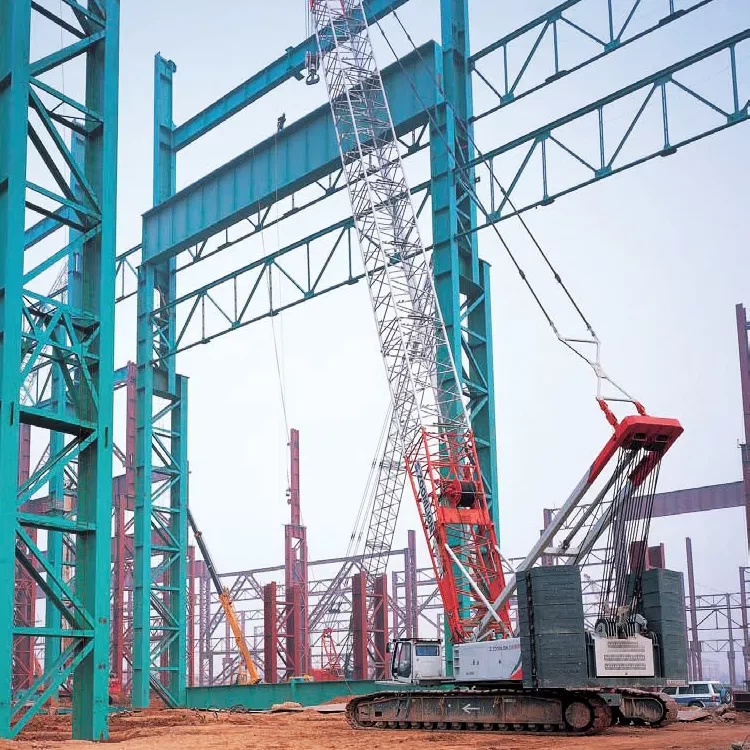

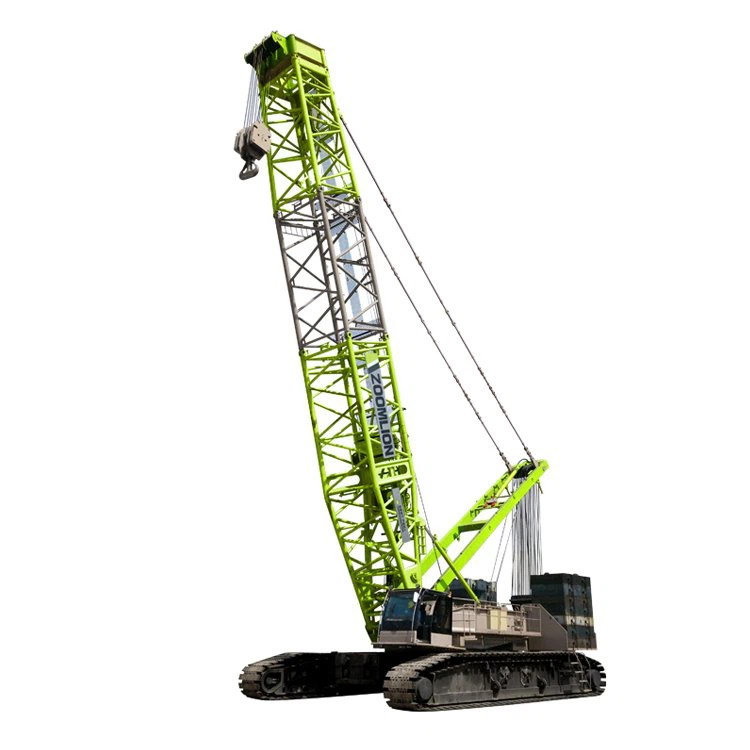

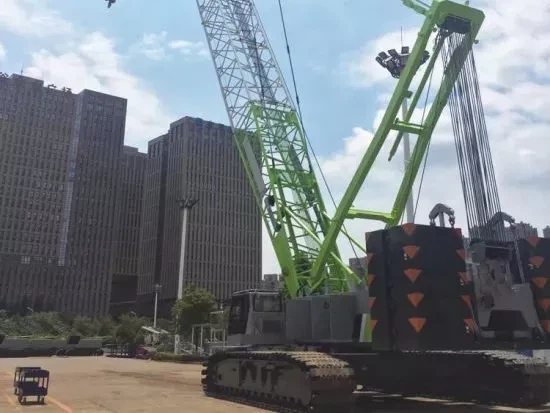

ZOOMLION 500 Ton crane truck ZCC5000-1 crawler crane is a new generation of 500-ton product built by the company. Equipped with Mercedes-Benz high-power engine and REXROTH hydraulic system, the work efficiency is high. The structure is optimized, the working condition configuration is enhanced, and it has the leading lifting performance of the same tonnage. Convenient disassembly and transportation, all-round monitoring, intelligent management, and perfect safety control. It is suitable for large-scale hoisting such as wind power, thermal power, petrochemical, stadiums, subways, etc.
Powerful lifting capacity
The comprehensive lifting performance is higher than that of products of the same tonnage.
The wind power conditions meet the hoisting of 3MW wind turbines at 100m and 2.0MW~2.5MW wind turbines at 120m.
Wide range of construction applications

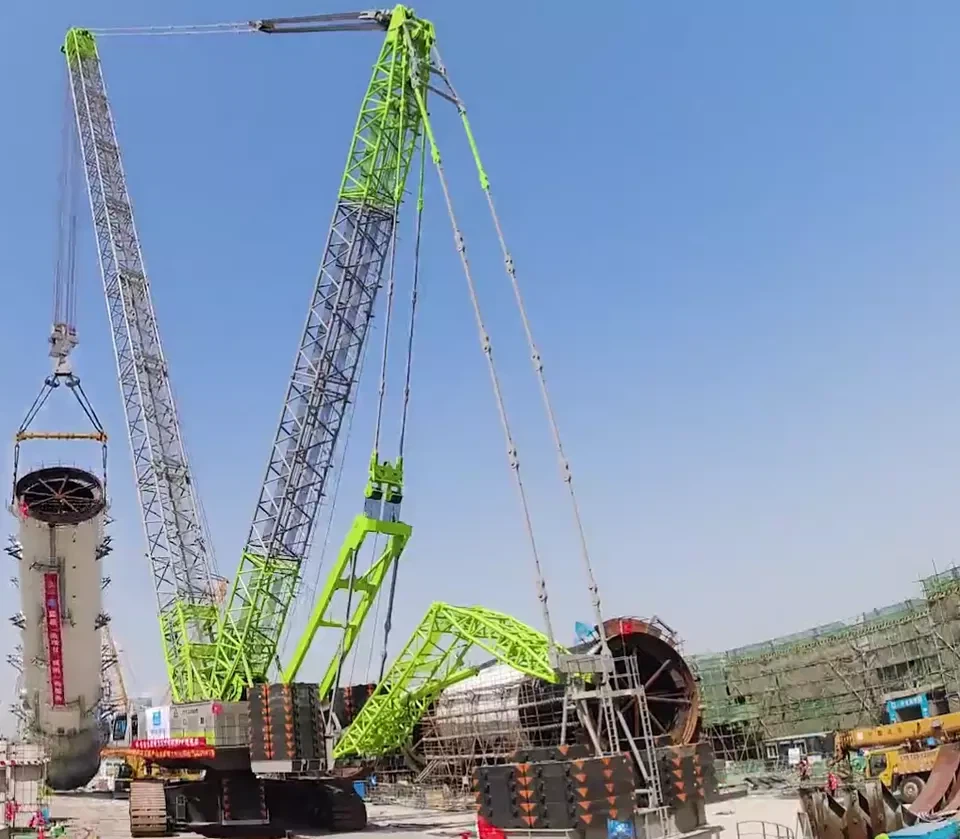

The working conditions are fully configured, and special wind power and shield working conditions are set up, covering large-scale construction fields such as wind power, thermal power, petrochemical, shipbuilding, subway, and water conservancy.
Convenient and efficient disassembly, global transportation
The installation and disassembly of 500 Ton crane truck ZCC5000-1 is 20% faster than that of similar products.
The maximum transport weight of a single piece is 48.6t.
New intelligent functions and improved security control
Added crane equipment management, statistical reports, maintenance, fault alarm, equipment positioning and other functions on the mobile APP to improve the 500 Ton crane truck ZCC5000-1 management level and operational efficiency.
New and comfortable control room
Full view, large operating space, all-round air-conditioning outlet, comfortable and cool indoor temperature.
The operation switch buttons are centrally arranged, within reach and easy to operate.
Item | Unit | Value | Remarks | |
Max. lifting capacity on heavy duty boom(S)/Radius | Without D and B t × m | 450*6 | ||
With D and B m | 500*12 | |||
Length of heavy duth boom(S) | Without D and B m | 24-90 | ||
With D and B m | 36-96 | |||
Length of light duty boom(SL) | Without D and B m-- | 48-108 | ||
With D and B m | 78-126 | |||
Dead weight of crane with basis boom | m | 370 | ||
Length of luffing jib(W) | m | 28-84 | ||
Max.lifting capacity on luffing jib | Without D and B t × m | 190*13 | ||
With D and B t × m | 235*16 | |||
Boom angle when luffing jib is used | ° | 65,75,85 | ||
Max. length of heavy duty boom with | Without D and B m | 60+72 | ||
With D and B m | 84+84 | |||
SLHS boom | Main boom m | 84-108 | ||
Wind plant jib m | 7 | |||
Max.lifting capacity t×m | 126*16 | |||
Single rope speed of winches | Hoisting winch 1 | m/min | 0-137 | |
Hoisting winch 2 | 0-137 | |||
Main boom derricking winch | 0-50 | |||
Luffing jib derricking winch | 0-123 | |||
Superlift derricking winch | 0-143 | |||
Hoisting winch 3 | 0-109 | |||
Slewing speed | Rpm | 0-1.0 | ||
Traveling speed | Km/h | 0-1.0 | ||
Gradeability | % | 30 | ||
Ground pressure | Mpa | 0.139 | ||
Transport dimensions of basic machine | mm | 12180*3345*3205 | Without A-frame | |
Max.transport weight of single piece | 48.6 | |||
Engine | Rated power / rotational speed | Kw/r/min | 360/1800 | |
Output torque /rotational speed | Nm/r/min | 2200/1300 | ||
Exhaust emission | EU Stufe 3A | |||
Distance between track center × crawler contact length × crawler width | mm | 8000*9800*1350 | ||
