Product Features

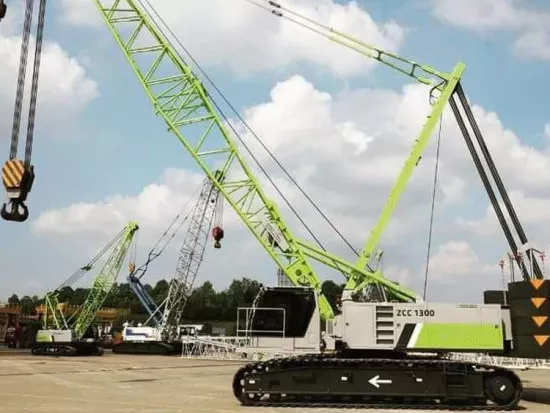

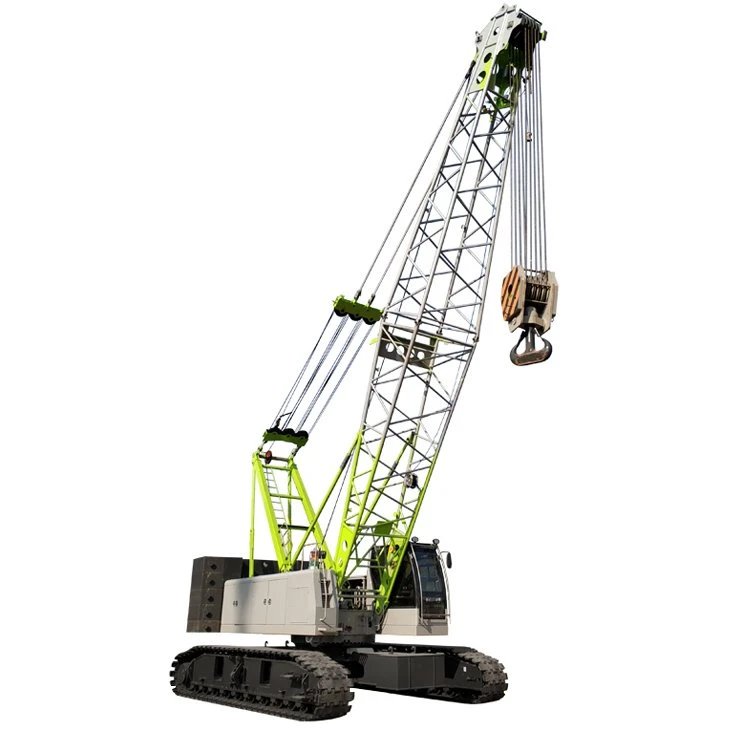

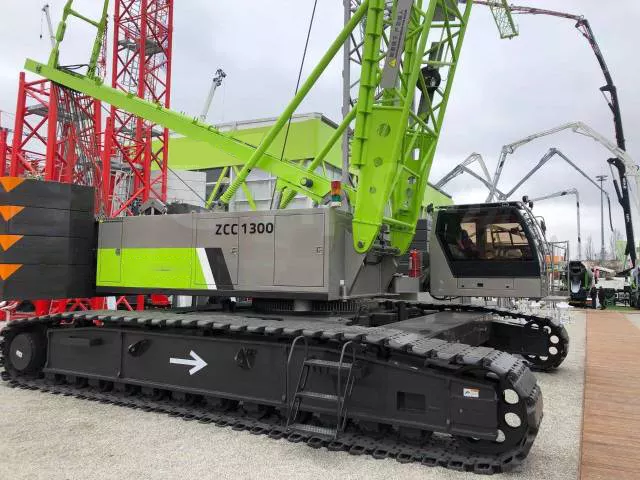

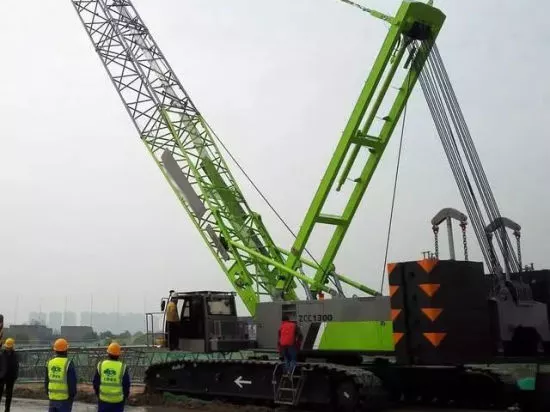

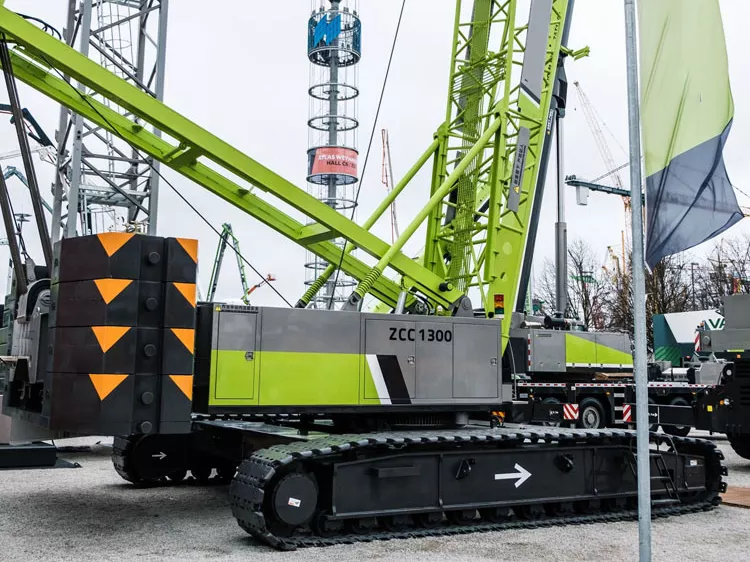

130 tons crane truck ZCC1300 crawler crane is a new generation of medium tonnage 4.0 products built by ZOOMLION. It integrates advanced technologies such as structural optimization, intelligent manufacturing, intelligent control, and information interconnection. The intelligent functions are convenient and practical, the safety control is perfect, the newly upgraded control room is comfortable and convenient, and the electro-hydraulic system is mature and reliable. It is especially suitable for hoisting industries such as municipal construction, subway construction, bridge construction, steel structure installation, port loading and unloading goods, etc.
Leading lifting capacity:
The working conditions of the main boom are 10% to 15% ahead of domestic counterparts.
The maximum lifting capacity of the fixed jib is ahead of the domestic counterparts.
Convenient and efficient disassembly and transportation:
130 tons crane truck ZCC1300 has newly added self-loading and unloading oil cylinder, which is highly efficient and completely self-loading and disassembling.
The maximum transport weight of a single piece is 33.5t, and the transport width is 2.98m, which conforms to the new road regulations.
After the pull plate is disconnected, it can be transported with the boom section, which is convenient for disassembly and assembly, and the assembly time of the whole machine is ≤6 hours.
New intelligent functions and improved security control:
Added functions such as crane equipment management, statistical reports, fault alarms, equipment positioning and trajectory playback on the mobile APP to improve equipment management and operational efficiency.
130 tons crane truck ZCC1300 fully complies with EU EN13000 safety control logic.
New and comfortable control room:
Full field of vision, large operating space, all-round air-conditioning outlets, and comfortable indoor temperature.
The operation switch buttons are centrally arranged, within reach and easy to operate.
The electro-hydraulic system is mature and reliable, and the component reliability is good.
Project | Unit | Numerical value | Remark | |
main arm | Maximum lifting weight × width | T*m | 130*5 | |
Maximum Lifting Moment | T*m | 717.6 | ||
Boom length | m | 19-76 | ||
Fixed jib | Maximum lifting weight × width | T*m | 24*14 | |
Fixed jib length | m | 13-31 | ||
Install Jib Main Boom Length | T*m | 40-64 | ||
Main boom + fixed jib maximum length | m | 61+31 | ||
Fixed Jib Mounting Angle | ° | 10,30 | ||
Winch speed | main lift speed | M/min | 117 | sixth floor |
Vice lift speed | M/min | 110 | the fifth floor | |
main luffing speed | M/min | 56 | sixth floor | |
Vehicle parameters | Swing speed | R/min | 0-2.2 | |
Walking speed | Km/h | 0-1.3 | ||
Turntable counterweight | t | 47 | ||
Body weight | t | 10 | ||
Maximum single piece shipping weight | t | 33 | ||
Overall weight with basic arm | m | 121.8 | Without hook | |
No-load average ground pressure with basic arm | Mpa | 0.1 | ||
Maximum Shipping Dimensions (L×W×H) | m | 11.5*3*3 | ||
Engine | Model | QSL9-C280 | ||
Rated power/speed | Kw/rpm | 209/2000 | ||
Max. torque/speed | Nm/rpm | 1424/1500 | ||
Emission Rating | U.S EPA Tier Ⅲ | |||
Track Gauge * Grounding Length * Track Shoe Width | mm | 5850*6850*900 | ||
