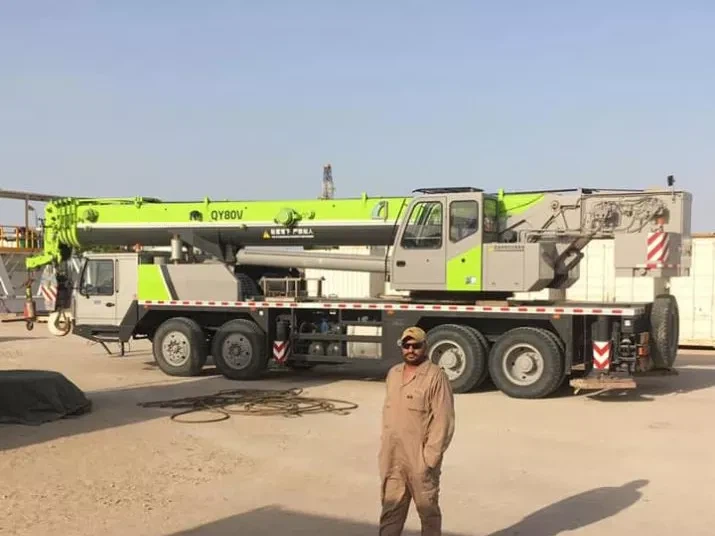

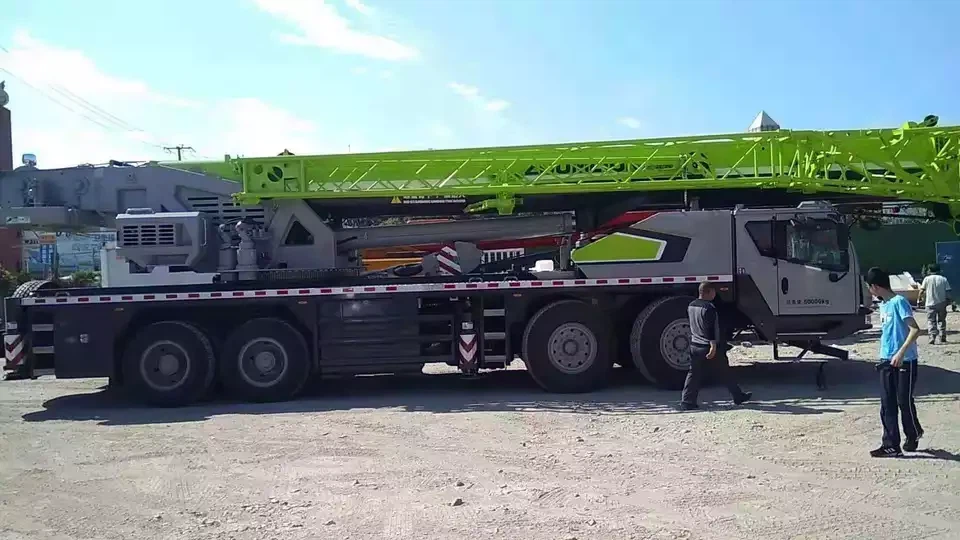

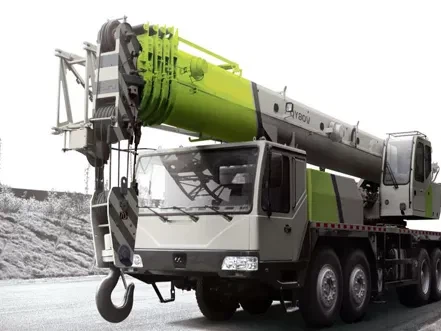

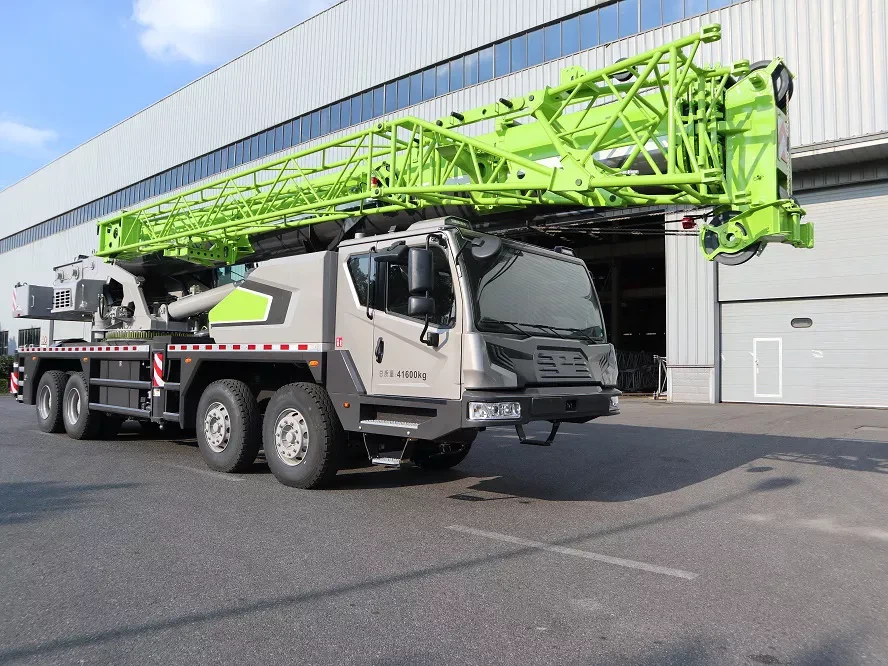

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of zoomlion qy80v in China. Please feel free to buy cheap zoomlion qy80v for sale here from our factory. Quality products and reasonable price are available.
Product Features
Zoomlion qy80v appearance:
Stable and bright appearance, novel and comfortable.
Component configuration:
The international first-class brand Linde hydraulic main pump is stable and reliable, and has a long service life.
Load-sensitive hydraulic proportional main valve, energy saving and fast response.
The main and auxiliary hoists can be equipped with double free-fall hook hoists to adapt to a wider range of industries.
Handling comfort:
10.4-inch color display, good visual experience.
Angle-adjustable panel armrest box, suitable for all kinds of people.
Cross hydraulic control handle, flexible operation.
Panoramic pitch control room, wide field of vision, not easy to fatigue.
Transport performance:
The maximum transport width of zoomlion qy80v does not exceed 3 meters, which meets the transport requirements of different regions.
Intelligent:
Intelligent interconnection, real-time monitoring of zoomlion qy80v running status and efficient equipment management.
Project | Unit | Numerical value | Remark |
Maximum Lifting Moment | T*m | 357 | |
Maximum lifting weight | t | 85 | |
Maximum lifting capacity of fixed jib | t | 15 | |
Boom length | m | 13-61 | |
Fixed jib length | m | 7-19 | |
Longest main boom + fixed jib | m | 49+19 | |
Main boom working angle | ° | 30-80 | |
Fixed Jib Mounting Angle | ° | 10,30 | |
Main and auxiliary hoisting mechanism single rope speed | M/min | 140 | the third floor |
Single rope speed of luffing mechanism | M/min | 82 | the third floor |
Swing speed | rpm | 0-2.6 | |
Walking speed | Km/h | 0-1.4 | |
Gradeability | % | 30 | |
Ground pressure | MPa | 0.086 | |
Counterweight | t | 75.5 | Basic armband main hook |
Weight of the whole machine | t | 28.5 | |
Overall dimensions(L*W*H) | mm | 13000*5100(3400)*3340 | Including herringbone frame, bottom section arm |
Engine model | WP7G270E301 | Optional QSC8.3-C260 | |
Engine rated power/speed | Kw/rpm | 199/2000 | 194/2200 |
Engine maximum output torque/speed | Nm/rpm | 1200/(1200-1500) | 1135/(1300-1600) |
Engine Emission Rating | Country Ⅲ | Country Ⅲ ，EURO Ⅲ A | |
Track Gauge * Grounding Length * Track Shoe Width | mm | 2600*5440*800 | The Return of the Track Shackles |
mm | 4300*5440*800 | Track frame extended |
