Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of truck crane 320ton in China. Please feel free to buy cheap truck crane 320ton for sale here from our factory. Quality products and reasonable price are available.

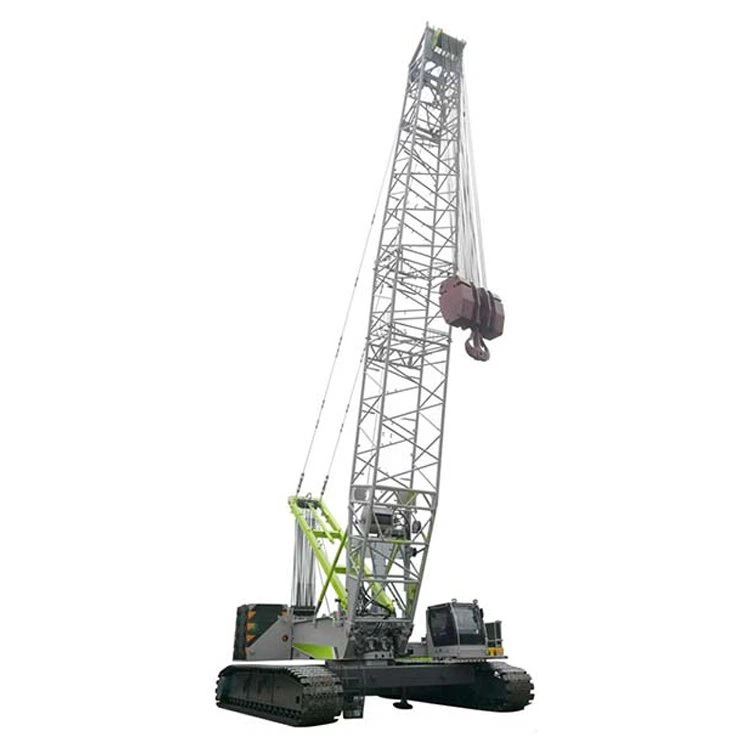

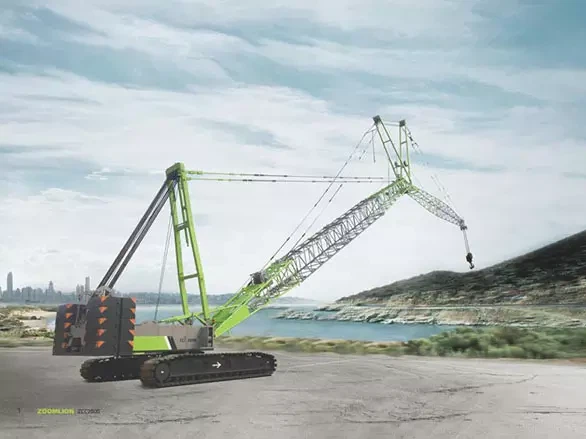

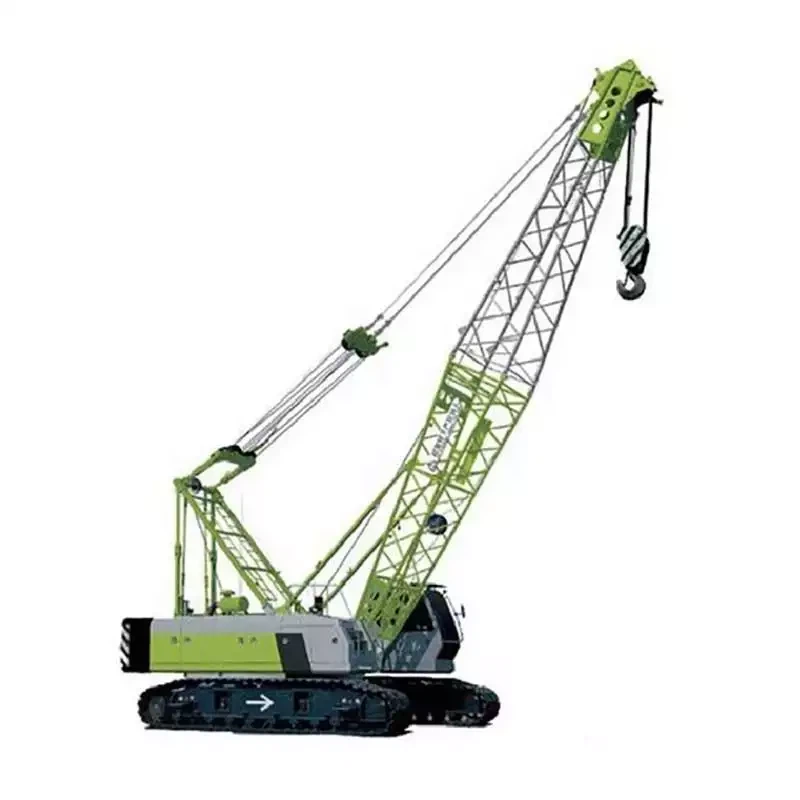

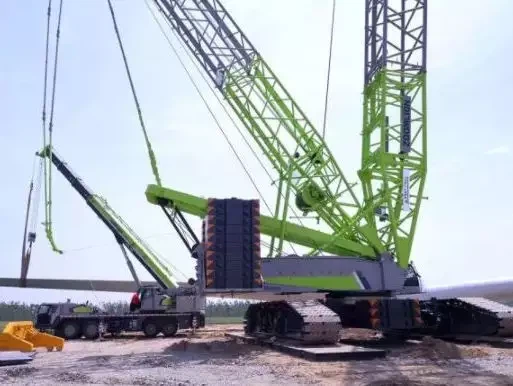

Truck crane 3200ton Zoomlion ZCC3200NP crane is an ultra-large tonnage crawler crane independently developed and manufactured by Zoomlion. It was successfully rolled off the production line on May 28. The crane is specially developed for the construction and hoisting of nuclear power plants, with a maximum lifting capacity of 3,200 tons. The torque reaches 82,000 ton meters.
truck crane 3200ton Zoomlion ZCC3200NP's super large lifting capacity and lifting torque can help you complete all the work you want to complete.
Items | Unit | ZCC3200V | Remarks | |
Main boom | Max. lifting capacity ×radius | t×m | 320×6 | |
Max. lifting moment | t×m | 1935 | ||
Main boom length | m | 24～93 | ||
Light main boom | Max. lifting capacity ×radius | t×m | 122×11 | |
Main boom length | m | 67.5～106.5 | ||
Max. lifting capacity ×radius | t×m | 130×9 | ||
Fixed jib length | m | 9～36 | ||
Main boom length (with fixed jib) | m | 24～81 | ||
Max. length of main boom + fixed jib | m | 81+9、63+36 | ||
Fixed jib | Fixed jib angle | ° | 10°、20°、 30° | |
Max. lifting capacity ×radius | t×m | 118×12 | ||
Luffing jib length | m | 24～66 | ||
Main boom length (with | m | 24～60 | ||
luffing jib) | ||||
Luffing jib | Max. length of main boom + luffing jib | m | 60+66 | |
Main boom angle | ° | 85°、75°、65° | ||
Speed of hoisting winch 1 | m/min | 120 | The 6th layer | |
Winch | Speed of hoisting winch 2 | m/min | 116 | The 6th layer |
speed | Speed of derricking winch | m/min | 2×50 | The 6th layer |
Slewing speed | rpm | 0～1 | ||
Traveling speed | km/h | 0～1 | ||
Rear counterweight | t | 120 | ||
Central counterweight | t | 40 | ||
Max. transport weight of a single component | t | 44.5 | With mast and winch | |
Total weight with main boom | t | 272 | With a load hook of 260t | |
Average ground pressure | Mpa | 0.135 | ||
Crane parameters | Max. dimensions for transport (length × width × height) | m | 13.7×3×3.22 | |
Manufacturer / Model | Weichai / WP10G336E344 | |||
Engine | Rated power / rotational | kw/rpm | 247/1900 | |
speed | ||||
Max. output torque / | Nm/rpm | 1550/1400 | ||
rotational speed | ||||
Exhaust emission | GB III | |||
Track gauge ×crawler contact length × crawler width | mm | 7000×8675×1200 | ||
