Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of zoomlion d6 dozer in China. Please feel free to buy cheap zoomlion d6 dozer for sale here from our factory. Quality products and reasonable price are available.
The Zoomlion D6 Dozer power system is equipped with a Weichai WD10G178E25 turbocharged engine. Fuel consumption is reduced by 20% to 25%. The environmentally friendly engine has high reliability, energy saving and low noise. Cooperated with the advanced transmission system, it provides advanced power matching and high power rating. The accurate and reliable electronic monitoring system allows operators to understand the equipment operating status in real time.
The Zoomlion D6 Dozer dozer is equipped with an air conditioning system and water tank specially designed for desert areas. Optional UV protection film for cab windows and UV protection for hoses. Can work in high temperature environment of about 50℃.
The Zoomlion D6 Dozer bulldozer in cold areas is equipped with an air intake preheater, an engine with integrated fuel filter pumping preheating device, a double-glazed window cab, a heater, a large-capacity low-temperature-resistant battery, and cold-resistant material seals. Can work in low temperature environment of -35℃.

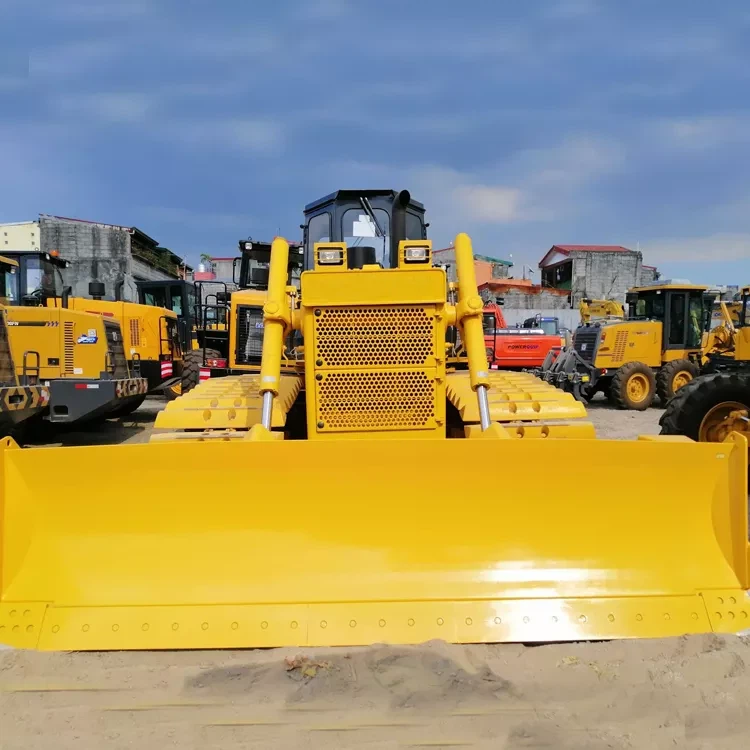

The Zoomlion D6 Dozer is equipped with a high-capacity R-type blade. It has extremely high operating efficiency and is specially developed for shoveling loose materials with low density and large individual volume.
Items | Units | ZD160S-3/6 | |
Engine | Manufacturer | / | WEICHAI |
Model | / | WD10G178E25/WP10G178E355 | |
Displacement | L | 9.726 | |
Rated Speed | r/min | 1850 | |
Rated Power | kW | 131 | |
Electric Generator | / | 28V,1.54kW | |
Fuel Consumption Rate | g/kW·h | ≤215/191 | |
Starter Motor | / | 24V,6.6kW | |
Undercarriage | Width of Track Shoe | mm | 950 |
Pitch | mm | 203.2 | |
Track Gauge | mm | 2300 | |
Length of Track On Ground | mm | 2935 | |
Ground Clearance | mm | 444 | |
Number of Track Shoes (per side) | piece | 42 | |
Working Device | Blade Type | / | Swamp straight tilt blade |
Width | mm | 3416 | |
Height | mm | 1150 | |
Max. Lift of Blade Above Ground | mm | 1095 | |
Max. Drop of Blade Below Ground | mm | 545 | |
Blade Capacity | m³ | 4.7 | |
Operating Weight | kg | 18100 | |
Dimensions and Weight | Length (without ripper) | mm | 5305 |
Length (with multi-shank ripper) | mm | / | |
width | mm | 4150 | |
Height(to top of cab) | mm | 3140 | |
