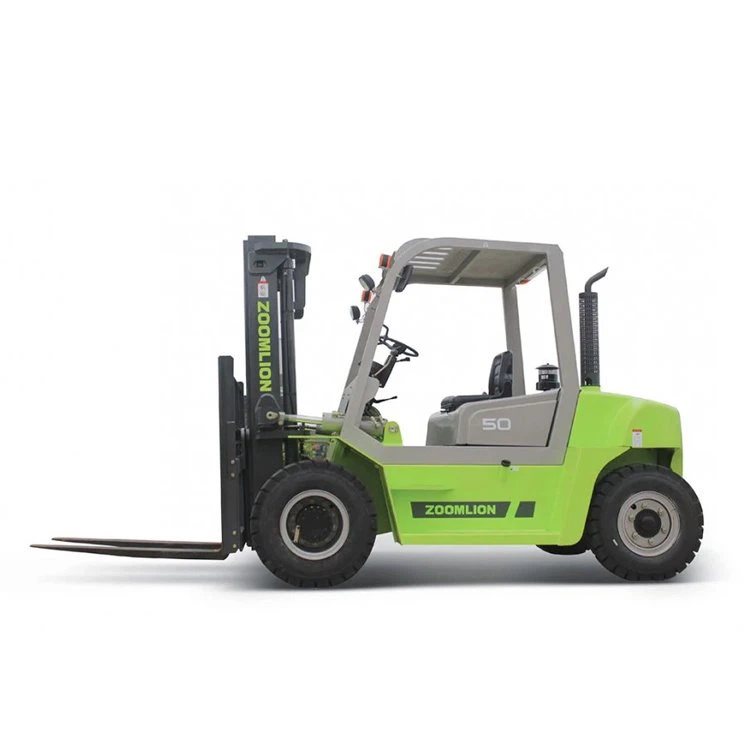

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of zoomlion for reach truck in China. Please feel free to buy cheap zoomlion for reach truck for sale here from our factory. Quality products and reasonable price are available.
Product Highlights
Zoomlion for reach truck More reliable
Self-made gantry frame, high-precision welding of robotic arms, more durable;
The cooling system has been optimized and designed, and the intercooling, water cooling and oil cooling are independently arranged, which greatly improves the reliability of the core components of the engine and gearbox;
High-precision welding of the robotic arm The engine intake is equipped with two-stage filtration (cyclone pre-filter and dry air filter) as standard;
The hydraulic system is equipped with explosion-proof valve to ensure safe operation and reliable work;
The hoisting system is equipped with a lower buffer cylinder, which effectively reduces the impact and vibration of the gantry; the high-pressure hose is sealed with a 24° cone to prevent leakage;
24° cone seal The neutral start protection function can effectively prevent misoperation.
zoomlion for reach truck More comfortable
Spacious upper and lower pedals and driving space reduce the fatigue of leg manipulation; the control valve stem is ergonomic.
zoomlion for reach truck more efficient
Generous driving space
The streamlined design of the whole vehicle has a beautiful appearance, and has the advantages of stable working conditions, high operating efficiency, high power, and good climbing performance, which can be operated in harsh working conditions;
Standard Weichai WP4.1G125 high-pressure common rail engine with a displacement of 4.09L; low fuel consumption, large low-speed torque, and stable power output;
Hydraulic reversing gearbox + 315M high-capacity torque converter, the performance is more stable and reliable.
Weichai WP4.1G125
Zoomlion for reach truck High pressure common rail engine is more environmentally friendly
Built-in thermal insulation and sound-absorbing materials and rubber seals greatly reduce vibration and noise; the engine meets the national three emission requirements..

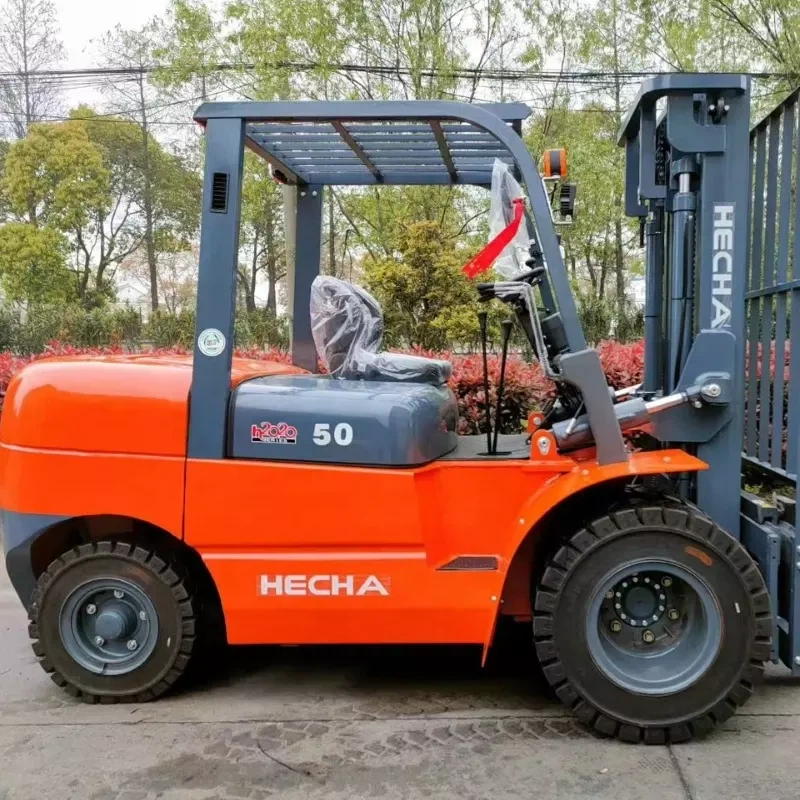

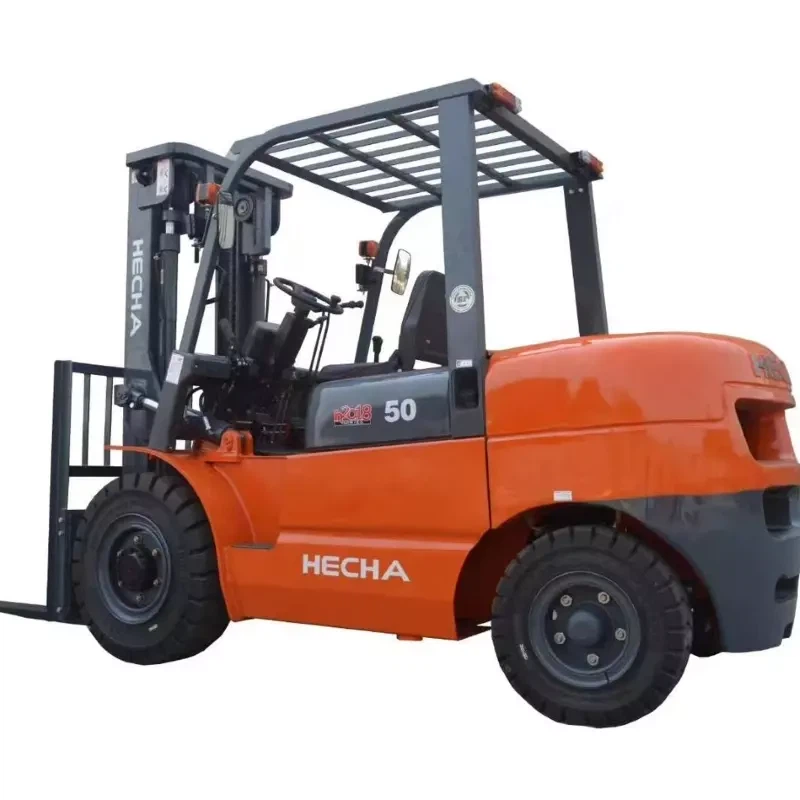

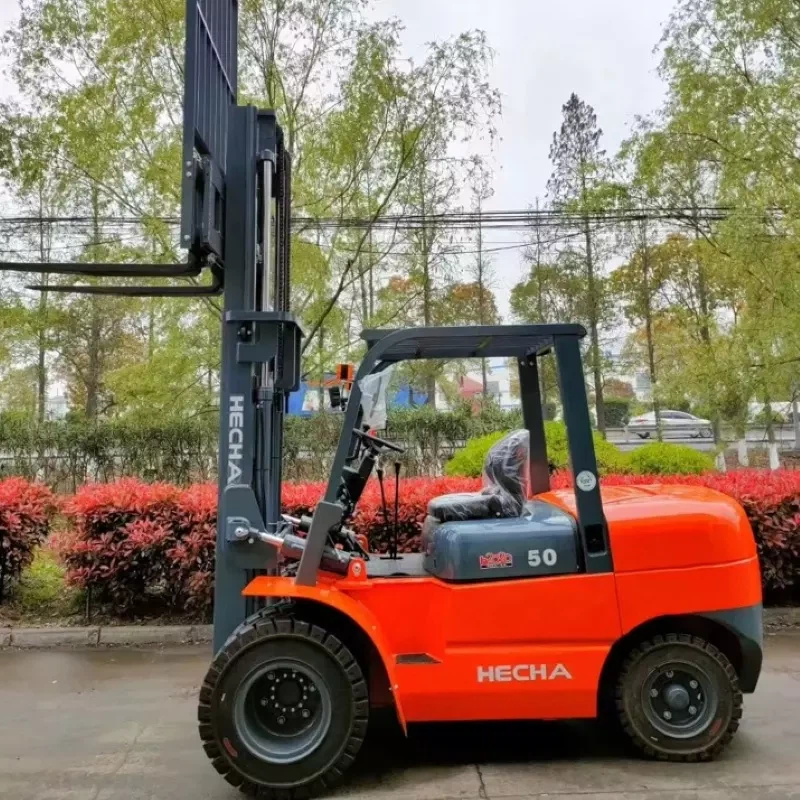

Parameter name Unit | FD50 |
Features Power Type | Diesel |
Rated load | 5000kg |
Load center distance | 600mm |
Maximum lifting height | 3000mm |
Free lift height | 203mm |
Fork size LxWxD | 1220×150×55mm |
Gantryinclination front/rear. | 6/12 |
Minimum turning radius | 3250mm |
Minimum ground clearance (gantry) | 200 mm |
Head guard height | 2460 mm |
Seat to overhead guard height | 1050 mm |
Front overhang | 610mm |
Performance Maximum travel speed (full load) | 26 km/h |
Maximum lifting speed (full load/no load) | 370/450mm/s |
Maximum traction/full load climbing ability | 51.4/20 kN/% |
Dimensions Overall length (without forks) | 3431mm |
Overall width | 2235mm |
Gantry height | 2500mm |
Maximum height during operation | 4417mm |
Chassis Tires Front Wheel | 8.25-15-14PR |
Rear Wheel | 8.25-15-14PR |
Wheelbase | 2250mm |
Wheelbase Front/Rear | 1470/1700mm |
Self-weight without load | 7980kg |
Drive Battery Voltage/Capacity | (12/90)x2V/Ah |
Engine Model | CY6102BG6 |
Rated power kw/r.p.m | 81/2500 |
Rated torque Nm/r.p.m | 353/1700 |
Number of cylinders | 6 |
Bore x Stroke | 102×118 mm |
Displacement | 5.785 |
Fuel tank capacity | 140L |
Transmission/gear/front and rear | 2/2manual shift |
Working pressure | 20MPa |
