Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of reach truck 2022 in China. Please feel free to buy cheap reach truck 2022 for sale here from our factory. Quality products and reasonable price are available.

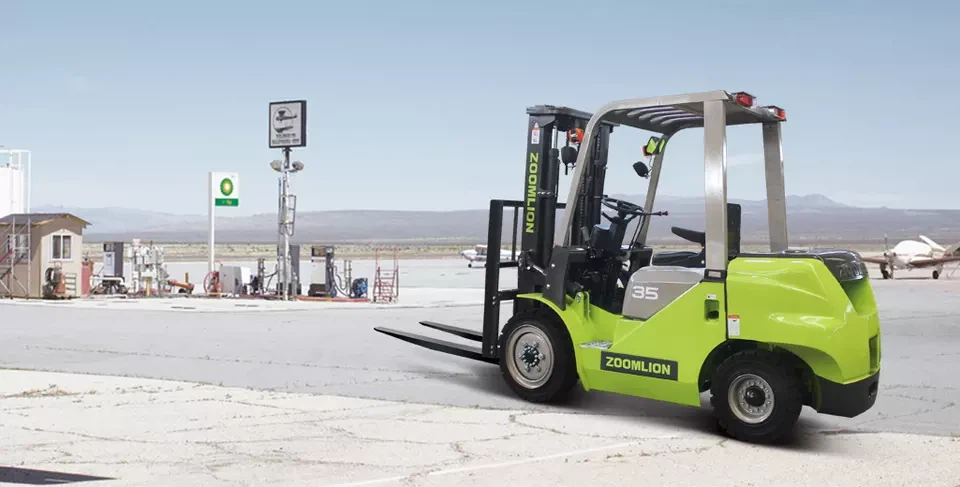

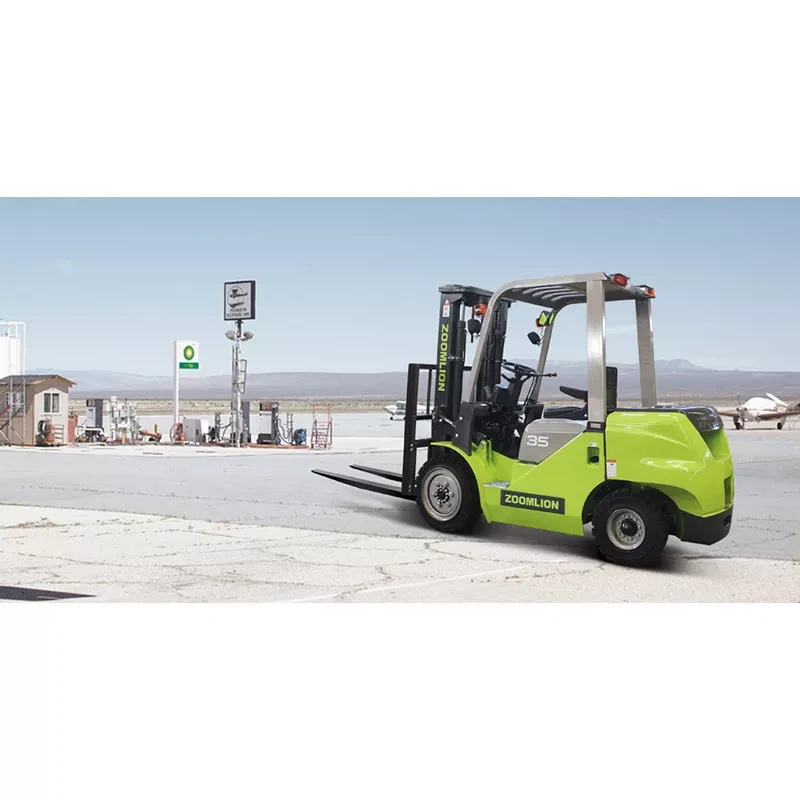

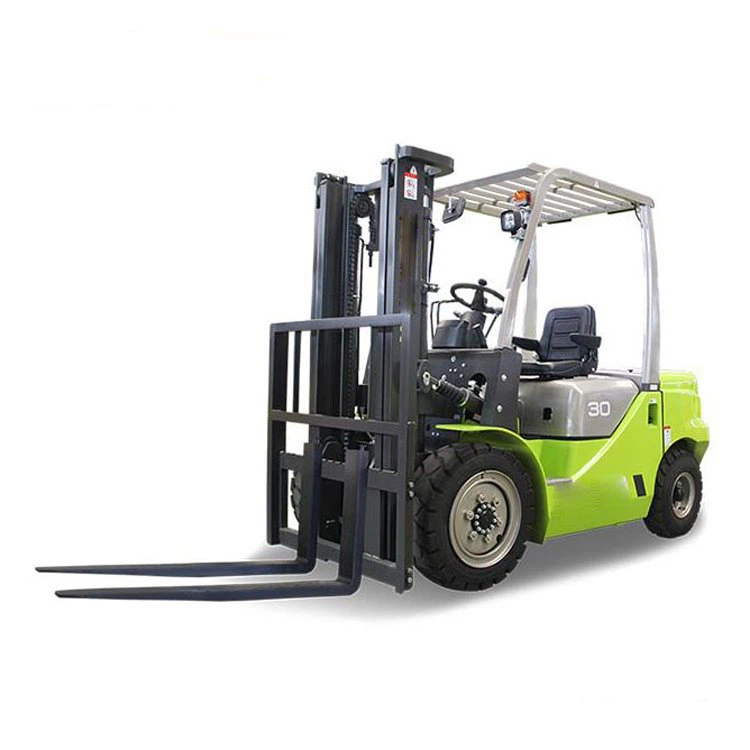

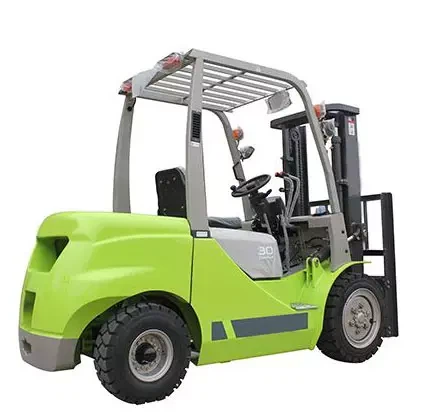

FD20/25/30/35/40E Zoomlion FD20/25/30/35/40E Internal combustion counterbalanced forklift 2-4 tons
Reach truck 2022 Features Safe & Green Safe & Green
The parking brake increases safety protection measures;
The emission of the whole machine complies with the latest national environmental protection standards of Taiwan;
The grille-type ceiling is adopted, which has a good operating field of vision and excellent reliability;
The 2-3.5 ton model adopts J-shaped channel steel and composite roller fork frame, which is stable in opening and high in strength.
Advanced design
The driving speed is increased and the work efficiency is higher;
The ventilation area at the rear of the balance weight is increased by 10%, which is more conducive to system heat dissipation;
The car-like dual-handle combination switch design makes the operation easier and more convenient;
The connection between the steering axle and the frame is subjected to shock absorption treatment, and the vibration of the whole vehicle is reduced by 30%;
Reach truck 2022Compared with other brands of the same series of products, it is more self-contained, has stronger carrying capacity, and is cost-effective;
The lifting system has upper and lower buffer functions, which effectively reduces the impact and vibration of the gantry.
Comfortable & practical
New paint, fresh and eye-catching colors, more reasonable color matching, which is eye-catching;
Spacious getting on and off pedals and driving space can reduce the fatigue of leg operation;
The central exhaust tailpipe setting effectively avoids the dust problem caused by low exhaust;
The hoses and joints in the hydraulic pipeline are sealed with a conical surface, which has a good sealing effect and will not leak oil after long-term use;
Optimized operating lever arrangement, new operating handle, spacious driver operating space, more comfortable operation.
Parameter name Unit | FD20E |
Features Power Type | Diesel |
Rated load | 2000 kg |
Load center distance | 500mm |
Maximum lifting height | 3000mm |
Free lift height | 135mm |
Fork size LxWxD | 1070x122x40mm |
Gantry inclination | 6/12 front/rear. |
Minimum turning radius | 2240mm |
Minimum ground clearance(Door frame) | 110mm |
Head guard height | 2120mm |
Seat to overhead guard height | 943mm |
Front overhang | 473mm |
Performance Maximum travel speed (full load) | 19km/h |
Max lift speed(full load/no load)m | 470/510m/s |
Largest traction/Full load climbing ability | 17/20 kN/% |
Dimensions Overall length (without forks) | 2570 mm |
Overall width | 1175mm |
Gantry height | 1990mm |
Maximum height during operation | 4000mm |
Chassis Tires Front | 7.00-12-12PR |
Rear wheel | 6.00-9-10PR |
Wheelbase | 1600mm |
Wheelbase Front/Rear | 970/970mm |
Self-weight without load | 3350 kg |
Drive Battery Voltage/Capacity | 12/90V/Ah |
Engine Model | Xinchang 490BPG |
Rated power | 37/2650kw/r.p.m |
Rated torque | 148/2000Nm/r.p.m |
Number of cylinders | 4 |
Bore x Stroke | 90x100 mm |
Displacement | 2.54 |
Fuel tank capacity | 60 L |
Transmission/gear/front and rear | 2/2 manual shift |
Working pressure | 17.5MPa |
