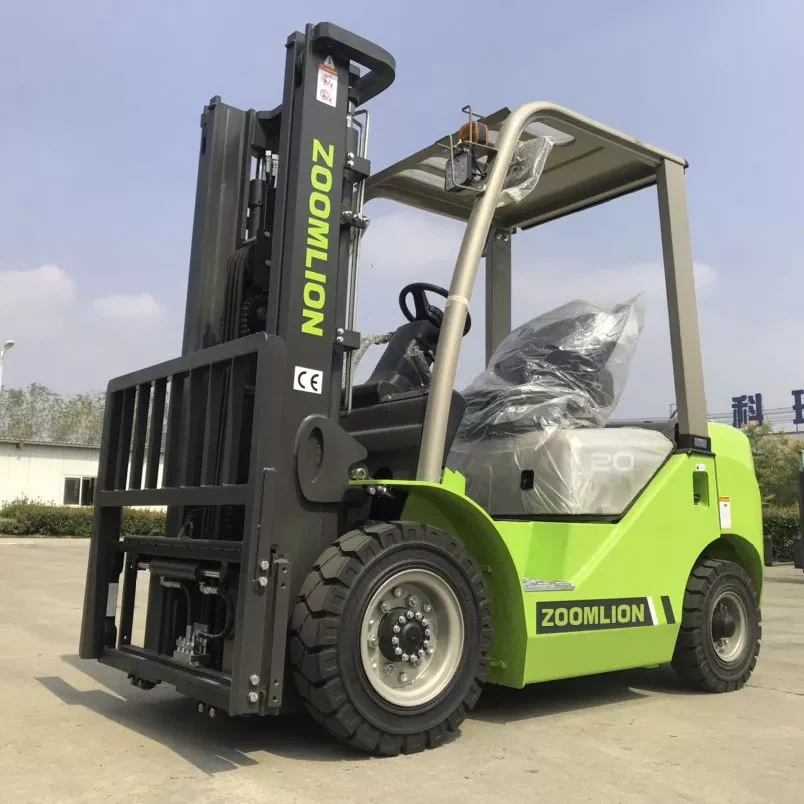

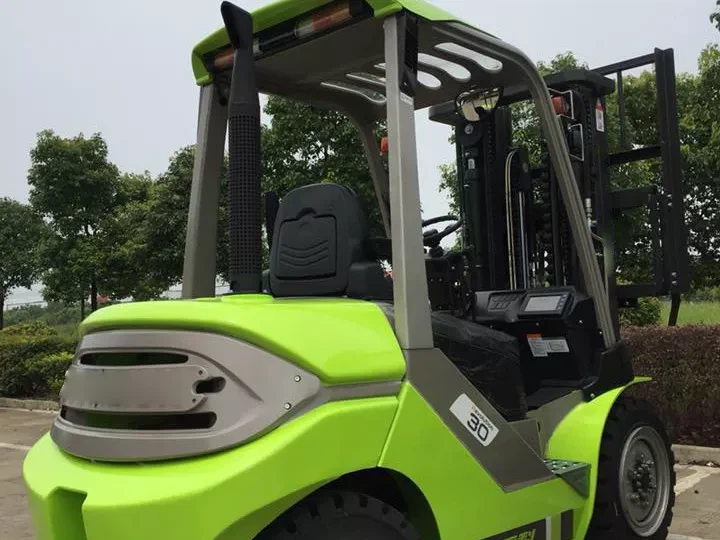

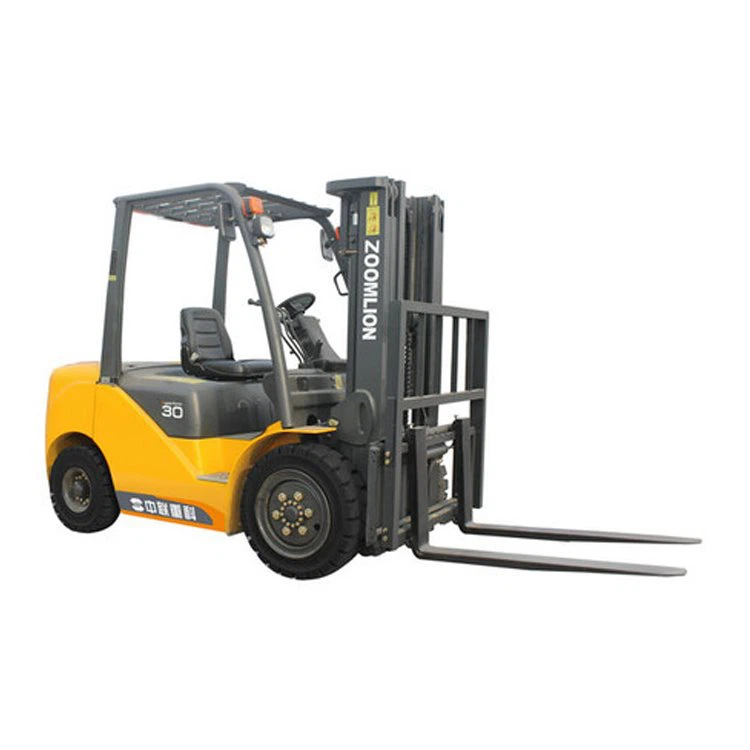

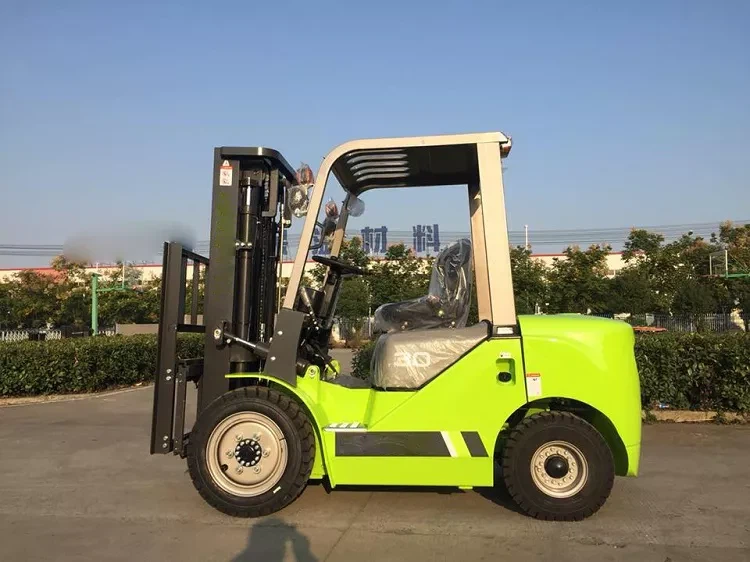

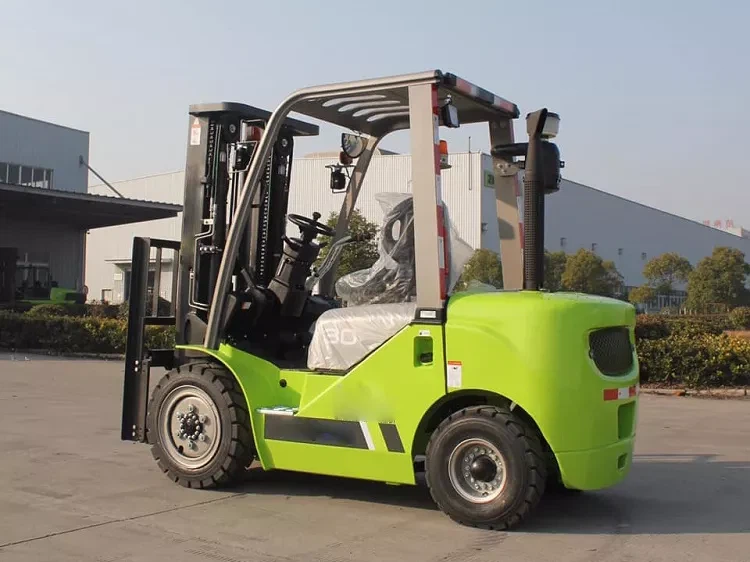

Zoomlion FD20/25/30/35 Internal Combustion Counterbalanced Forklift
FD20/25/30/35 2 ton forklift ，internal combustion counterbalanced forklift adopts LED lamps for safety and environmental protection. Compared with traditional lamps, it has the advantages of high light efficiency, environmental protection, no pollution, energy saving, long service life, low heat, shock resistance and high color purity; t2 ton forklift gantry adopts independent The main side roller guide structure design greatly improves the reliability and stability of the gantry during the lifting process. 2 ton forklift ，Comfortable and efficient, the international advanced ergonomics technology is adopted, and the operating system design is optimized, which further increases the operating space of the driver; the working device adopts the buffer oil cylinder, the pipeline is rearranged, the field of vision is increased, and the operation safety is improved;
Parameter name Unit | FD20H |
Features Power Type | Diesel |
Rated load | 2000 kg |
Load center distance | 500mm |
Maximum lifting height | 3000mm |
Free lifting height | 135mm |
Fork size LxWxD | 1070x122x40mm |
Gantry inclination | 6/12front/rear. |
Minimum turning radius | 2240mm |
Minimum ground clearance (gantry) | 110mm |
Head guard height | 2090mm |
Seat to overhead guard height | 1005mm |
Front overhang | 473mm |
Performance Maximum travel speed (full load) | 19km/h |
Maximum lifting speed (full load/no load) | 490/510mm/s |
Maximum traction/full load climbing ability | 17/20kN/% |
Dimensions Overall length (without forks) | 2570mm |
Full width | 1160mm |
Gantry height | 1990mm |
Maximum height when working | 4000 mm |
Chassis Tires Front Wheel | 7.00-12-12PR |
Rear wheel | 6.00-9-10PR |
Wheelbase | 1600mm |
Wheelbase Front/Rear | 970/970mm |
Self-weight without load | 3350kg |
Drive Battery Voltage/Capacity | 12/90V/Ah |
Engine Model | Xinchang 490BPG |
Rated power | 37/2650kw/r.p.m |
Rated torque | 148/2000Nm/r.p.m |
Number of cylinders | 4 |
Bore x Stroke | 90x100mm |
Displacement | 2.54 |
Fuel tank capacity | 60L |
Transmission/gear/front and rear | 2/2 manual shift |
Working pressure | 17.5 MPa |
