Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 16ton road roller in China. Please feel free to buy cheap 16ton road roller for sale here from our factory. Quality products and reasonable price are available.

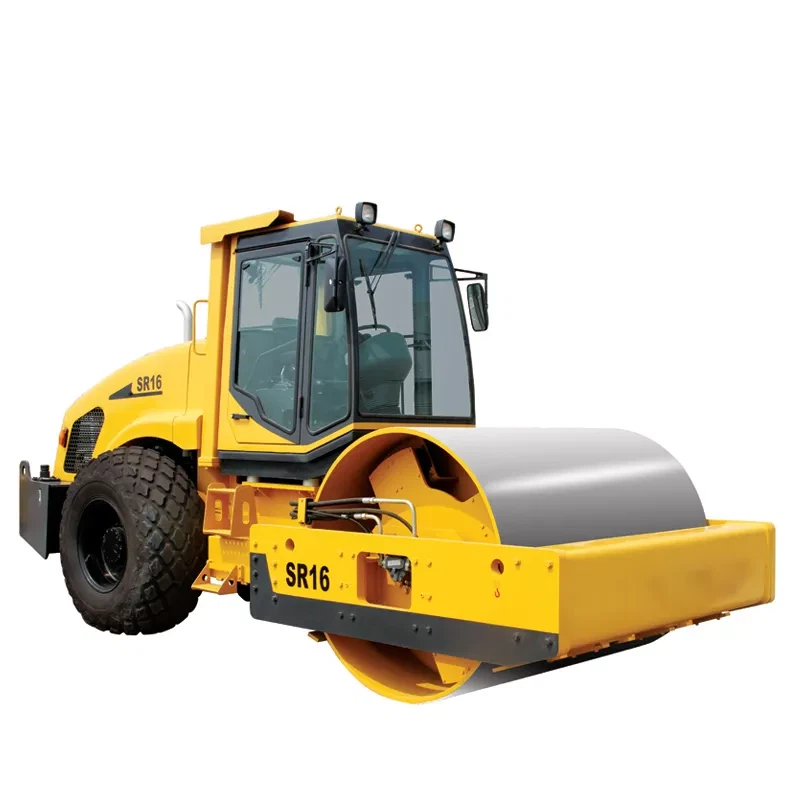

SR16(16ton Road Roller) is a full hydraulic road roller, which is simpler to operate and more flexible to turn than traditional mechanical rollers, and has higher construction efficiency.
SR16(16ton Road Roller) starting is stable and will not cause too much damage to the road surface, resulting in repeated repair of the road surface, thereby reducing the working time and increasing the work efficiency.
The 16ton Road Roller single lever shift lever can effectively improve the operator's work efficiency and reduce fatigue.
Comfortable and sturdy adjustable seat with foldable armrests and retractable seat belts;
The cab is equipped with air conditioning, and the rubber shock absorption design isolates the operator from the vibration source, increasing the driver's comfort.
The large-angle opening of the hood, the maintenance-free battery, the real-time monitoring of various pressures and temperatures, and the reasonable arrangement of diesel and working oil tanks make the roller have good maintenance performance.
Parameter name | SR16 |
Performance parameters | |
Operating weight (Kg) | 16000 |
Exciting force (KN) | 335/220 |
Vibration frequency (Hz) | 28/32 |
Nominal amplitude (mm) | 1.60/0.65 |
Gradeability (%) | 45 |
Engine | |
Engine model | Weichai WP6G175E22 |
Rated power/rated speed (kW/rpm) | 129kw/2200rpm |
Overall dimensions | |
Overall dimensions of machine (mm) | 6240*2300*3100 |
Driving performance | |
Forward speed (km/h) | F1: 0-5.5, F2: 0-10 |
Reversing speed (km/h) | R1: 0-5.5, R2: 0-10 |
Chassis System | |
Wheelbase (mm) | 3150 |
Tank capacity | |
Fuel tank (L) | 280 |
Working device | |
Compacting width（mm） | 2130 |
