Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 140hp mini motor grader in China. Please feel free to buy cheap 140hp mini motor grader for sale here from our factory. Quality products and reasonable price are available.
Product Features

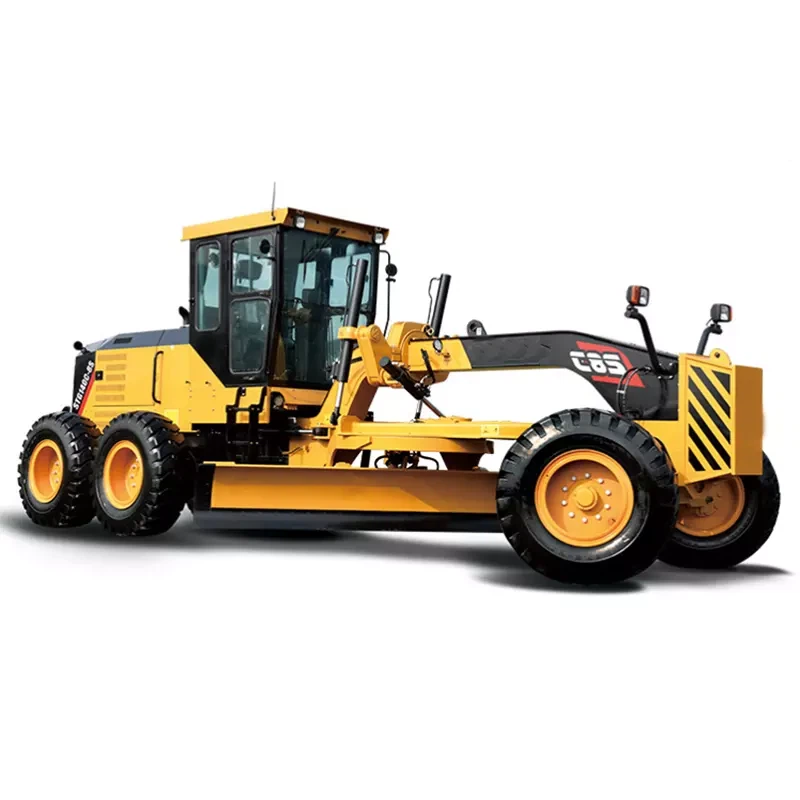

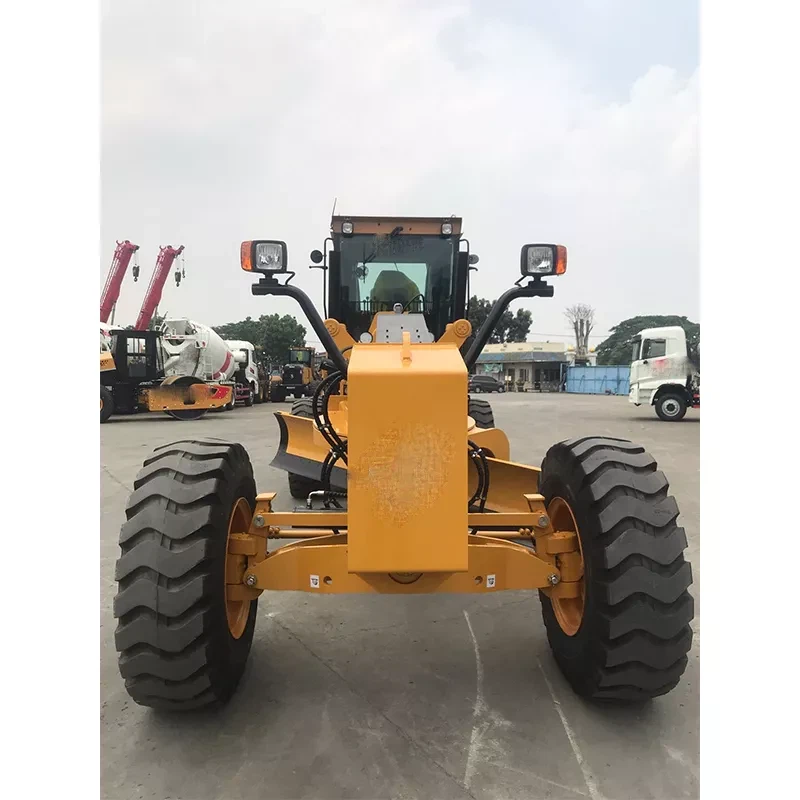

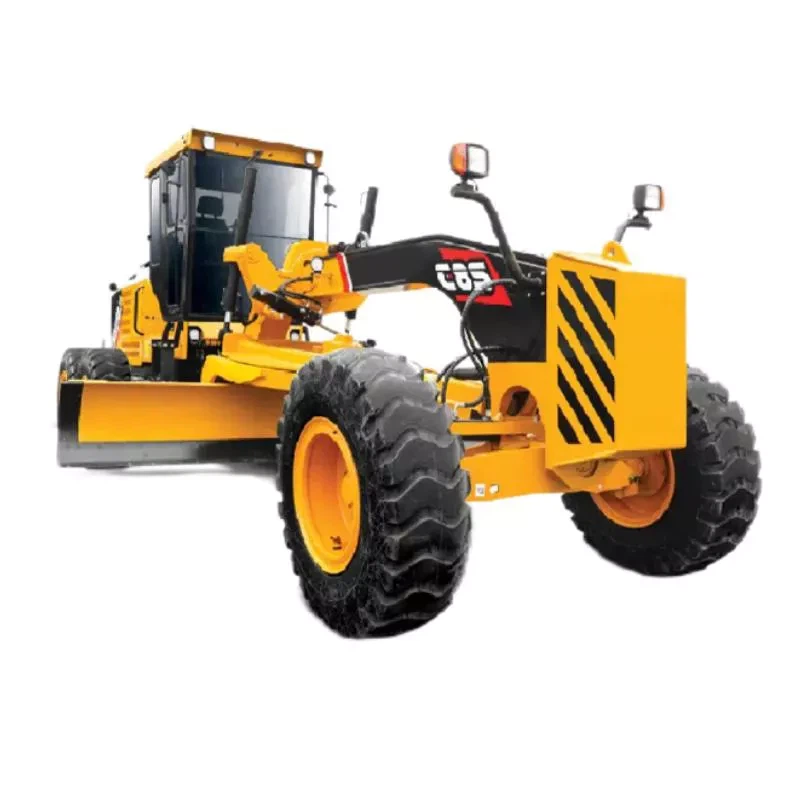

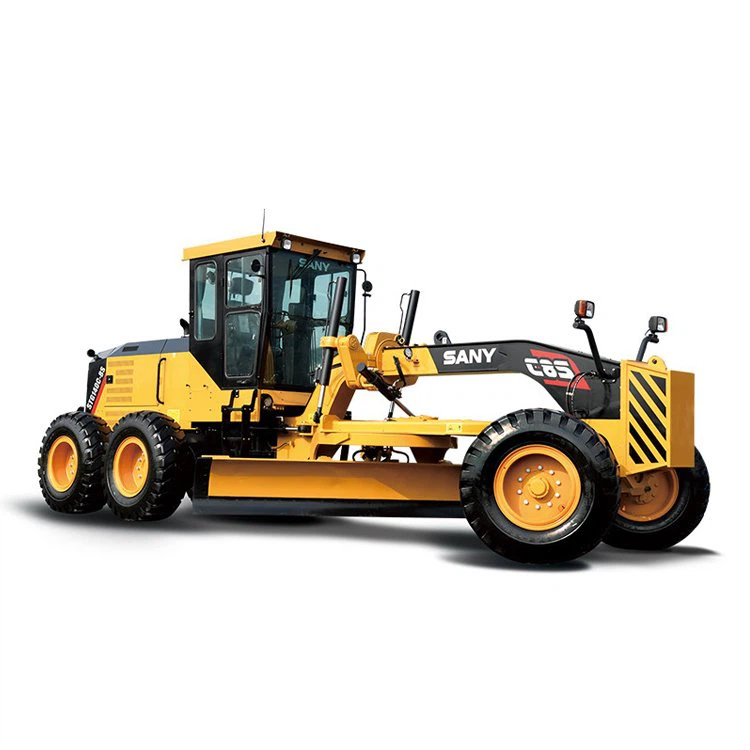

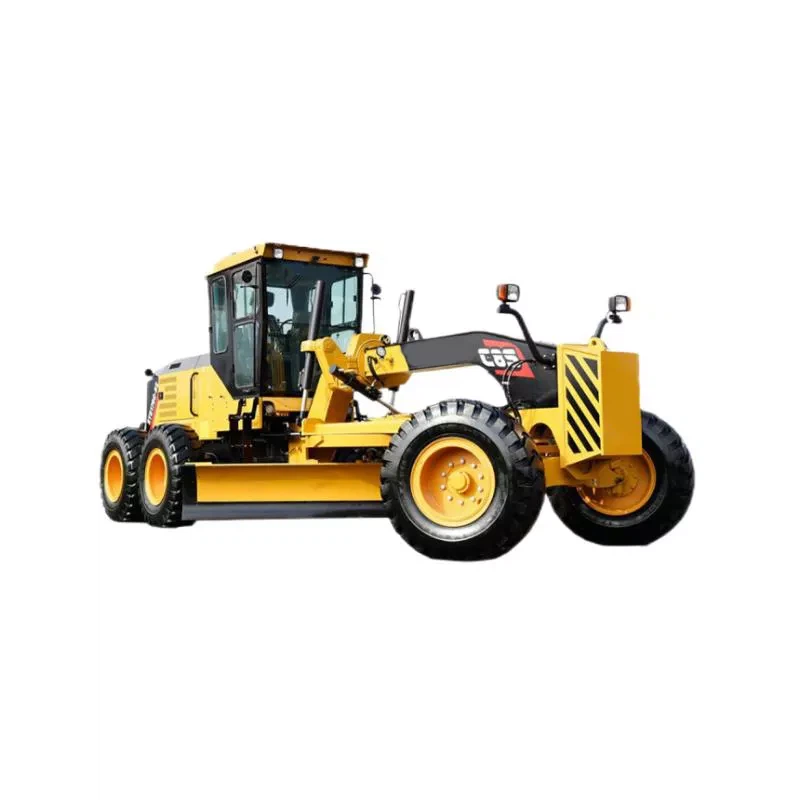

140hp Mini Motor Grader STG140C-8S powerful engine, high efficiency
The WEICHAI/SANY heavy-duty engine is powerful and powerful.
VHP technology can adapt to different working conditions such as light load, medium load and heavy load, and has different power curves, so that the machine can always work within the minimum fuel consumption range.
Reliable working tools for rear axle and slewing bearing structure
The working machine adopts a fully sealed rotary bearing structure, which is easy to maintain, has high running accuracy, low cost, and has a service life of more than 10,000 hours.
The rear axle adopts the rotary bearing structure instead of the traditional copper sleeve structure, which is convenient for maintenance, high running precision and has a service life of more than 10,000 hours.
4 front 2 rear disc brakes are safer than drum brakes, with shorter stopping distances and lower maintenance costs.
Simple and convenient maintenance
High-end SYCD LCD display with multilingual operating instructions.
The 140hp Mini Motor Grader STG140C-8S large opening engine hood provides a large maintenance space for easy daily maintenance.
Common electrical components are centrally arranged for easy maintenance.
Automatic fault diagnosis and maintenance prompts, automatic monitoring of engine and transmission operating conditions.
The extra-large capacity fuel tank is located at the rear of the frame for easy refueling.
A variety of filter elements and wearing parts, as well as 27 high-quality maintenance tools, are provided with the package.
Safe and comfortable ride and operation experience
ROPS/FOPS safety cab is equipped with high-end interior, heating and cooling air conditioning, fan, radio, audio system, cup holder, cigarette lighter (same as the USB interface in the car).
The 140hp Mini Motor Grader STG140C-8S also features horizontal sliding windows, sun visors, curtains, radio, dual mirrors and mechanically suspended seats with headrests.
The LED lights are arranged in many places, and the night vision is better.
Engine Model | DONGFENG Cummins 6BTA5.9-C150-Ⅱ |
Rated Power | 112kw |
Peak Torque | 655NM |
Overall Dimensions (L×W×H) | 8765×2460×3310mm |
Operating Weight | 13000kg |
Forward Speed | 5/8/12/19/28/41km/h |
Reverse Speed | 5/12/28km/h |
Min. Turning Radius | / |
Length of Blade | 3660(12ft)mm |
Height of Blade | 620mm |
Max. Lift Above Ground | 420mm |
Max. Depth of Cut | 630mm |
