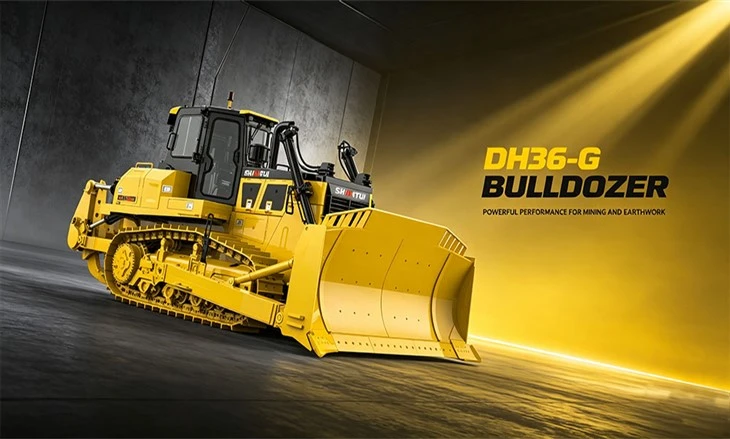

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of shantui bulldozer machine dh36-g in China. Please feel free to buy cheap shantui bulldozer machine dh36-g for sale here from our factory. Quality products and reasonable price are available.
| Parameter | DH36-G |
|---|---|
| Work quality | 36,935 kg |
| Ground contact pressure | 100.5 kPa |
| Engine Model | 潍柴 WP13 |
| Rated power/speed | 280 kW / 1800 rpm |
| Overall dimensions | 6800 × 4130 × 3675 mm |
| Forward speed | 0～11 km/h |
| Retraction speed | 0～11 km/h |
| Track center distance | 2140 mm |
| Track shoe width | 560 mm |
| Ground contact length | 3275 mm |
| Fuel tank capacity | 690 L |
| Working hydraulic oil tank capacity | 172 L |
| Blade type | Straight-tilt blade |
| Blade lift height | 1375 mm |
| Excavation depth | 560 mm |
| Ripper type | Single-tooth ripper (optional) |
| Soil loosening depth | 1250 mm |
Powerful performance meets the demands of heavy-duty operations.
The DH36-G is equipped with a Weichai WP13 engine, delivering a rated power of 280 kW at 1,800 rpm. With an operating weight of 36.9 tonnes and a high-output powertrain, the machine is capable of handling heavy-load dozing and continuous operational tasks.
For large-scale projects, equipment requires not only ample power but also stability during prolonged operation. Configured specifically for heavy-duty construction needs, the DH36-G is suitable for large-scale earthworks, road construction, mining operations, and site development.
A fully hydraulic system ensures more direct operational response.
The DH36-G utilizes a fully hydraulic drive system with forward and reverse speeds ranging from 0 to 11 km/h, allowing for flexible adjustment of operating speeds to suit varying job site conditions.
The combination of the fully hydraulic system and the crawler undercarriage ensures excellent traction and operational stability on-site; this configuration enables operators to maintain greater control flexibility during projects requiring frequent dozing, turning, and back-and-forth maneuvering.
The straight-tilt blade design is ideal for high-volume earthmoving operations.
Equipped with a straight-tilt blade, the machine offers a lift height of 1,375 mm and a digging depth of 560 mm; this extensive operating range meets the requirements for common tasks such as earth pushing, ground leveling, and site preparation.
For contractors, earthmoving firms, and mining project purchasers seeking a large bulldozer, the DH36-G-with its 36.9-ton operating weight and high-power configuration-is ideally suited for large-scale, continuous earthmoving operations.
Crawler-type undercarriage balancing load-bearing capacity and operational stability
The DH36-G features a crawler-type undercarriage with a track gauge of 2,140 mm, a track shoe width of 560 mm, and a ground contact length of 3,275 mm, resulting in a ground pressure of 100.5 kPa.
This undercarriage configuration provides a stable foundation for the machine, ensuring reliable travel and operation in demanding environments such as general construction, road building, and mining sites.
Optional single-shank ripper to expand operational capabilities
The DH36-G can be equipped with a single-shank ripper capable of a maximum ripping depth of 1,250 mm; this attachment extends the machine's working range, making it suitable for environments with hard soil or applications requiring deep ripping.
By configuring various work attachments, the machine can handle a wider range of earthmoving tasks tailored to specific project requirements, offering overseas contractors and equipment buyers greater flexibility in their equipment selection.
Application Scenarios
The DH36-G is primarily suited for construction projects demanding high equipment tonnage, power, and sustained operational capability. Applications include mining operations, loosening hard soil, earthmoving and site preparation, road and infrastructure construction, large-scale earthworks, and the leveling of extensive construction sites. For contractors, equipment dealers, and large-scale project procurement teams, the DH36-G serves as an ideal heavy-duty dozer solution for projects requiring superior pushing power and continuous operational performance.
The DH36-G is not designed for small-scale landscaping or light-duty construction tasks; rather, it is a 36.9-ton class, fully hydraulic bulldozer engineered for large-scale projects and heavy-duty operations. For buyers seeking a Shantui bulldozer, the DH36-G-featuring an operating weight of 36,935 kg, a 280 kW engine, and an optional ripper-represents a strong candidate for large-scale earthmoving and heavy construction equipment procurement.
