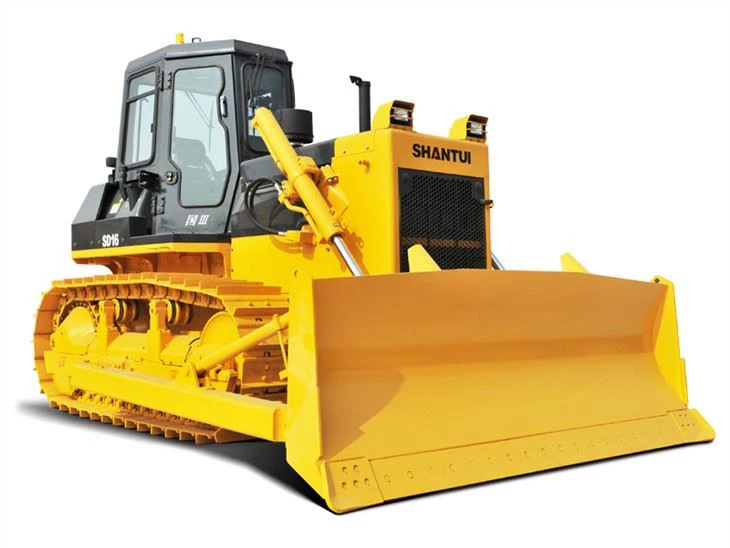

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of shantui official bulldozer in China. Please feel free to buy cheap shantui official bulldozer for sale here from our factory. Quality products and reasonable price are available.
power system
Equipped with WP10 electronically controlled engine to meet the national stage III emission requirements for non-road machinery, with strong power, high efficiency and energy saving, and low maintenance costs;
Bulldozer D6 Dozer torque reserve coefficient is large, and the rated power reaches 131kW;
Shantui official bulldozer D6 bulldozer adopts a radially sealed air intake system, which effectively improves the service life of the engine.
Transmission system
The Bulldozer D6 bulldozer transmission system perfectly matches the engine curve, with a wider high-efficiency area and higher transmission efficiency;
Shantui's self-made transmission system has been tested in the market for a long time, with stable performance and reliable quality.
job suitability
Shantui official bulldozerStraight tilting shovels, U-shaped shovels, angle shovels, coal push shovels, rock shovels, sanitation shovels, scarifiers, traction frames, etc. can be selected according to specific working conditions, with stronger work adaptability, and LED work can choose light to improve nighttime construction Lighting ability, more safe and reliable.
Ease of maintenance
Shantui Official Bulldozer D6 Dozer electrical wiring harness is protected by bellows and splitter, and the protection level is high;
Open type large space side shield, maintenance is more convenient;
Fuel filter, air filter and other side design, one-stop maintenance;
Lubrication points for key parts such as fan shaft and balance beam are drawn out, making maintenance more convenient.
Engine | Model & type | Shangchai SC11CB184G2B1/Weichai WD10G178E25; | ||
Horsepower | Gross power: 131/175/1850 kW/HP/rpm // | |||
Number of cylinders | 6—126 x 130 mm (bore x stroke) | |||
Piston displacement | 9.726 L | |||
Min. fuel consumption | 214 g/kW·h | |||
Maximum torque | 765 N·m@1300 rpm | |||
Power | Torque converter | 3-element, 1 stage, 1 phase | ||
Transmission | Planetary gear type, power-shift, forced lubrication | |||
Main drive | Spiral bevel gear, single-stage speed reduction, | |||
Steering clutch | Lubricated, multi-disc, spring loaded, hand hydraulically separated, inter-linking with steering brake | |||
Steering brake | Lubricated, floating band structure, foot brake | |||
Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||
Travel speed | Gear | 1st | 2nd | 3rd |
Forward | 0~3.29 km/h | 0~5.82 km/h | 0~9.63 km/h | |
Reverse | 0~4.28 km/h | 0~7.59 km/h | 0~12.53 km/h | |
Undercarriage | Type | Sprayed beam, suspended structure of equalizer | ||
Carrier rollers | 2 each side | |||
Track rollers | 6 each side | |||
Track type | Assembled, single-grouser | |||
Width of track shoes | 510 mm | |||
Pitch | 203.2 mm | |||
Hydraulic | Maximum pressure | 14 MPa | ||
Pump type | Gear pump | |||
Discharge | 243 L/min | |||
Bore of | 110 mm × 2 | |||
Blade | Blade Type | Straight-tilt | Angle | U- Blade |
Dozing capacity | 4.5 m 3 | 4.4 m 3 | 5.0 m 3 | |
Efficiency | 225 m 3 /h | 225 m 3 /h | 250 m 3 /h | |
Blade width | 3388 mm | 3970 mm | 3556 mm | |
Blade height | 1149 mm | 1040 mm | 1120 mm | |
Maximum drop | 540 mm | 530 mm | 540 mm | |
Lifting height of blade | 1095 mm | 1110 mm | 1095 mm | |

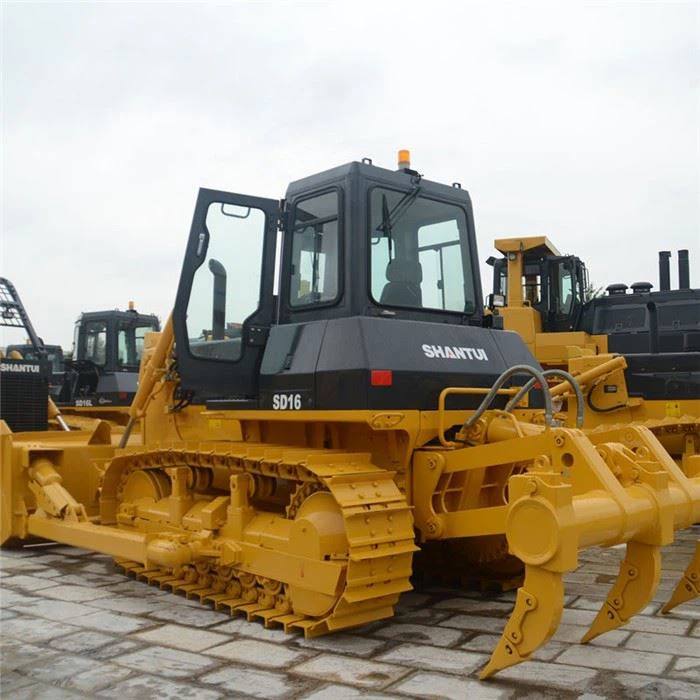

Riipper | Maximum digging depth | 572 mm | ||
Maximum lift | 592 mm | |||
Weight of 3-shank ripper | 1667 kg | |||
