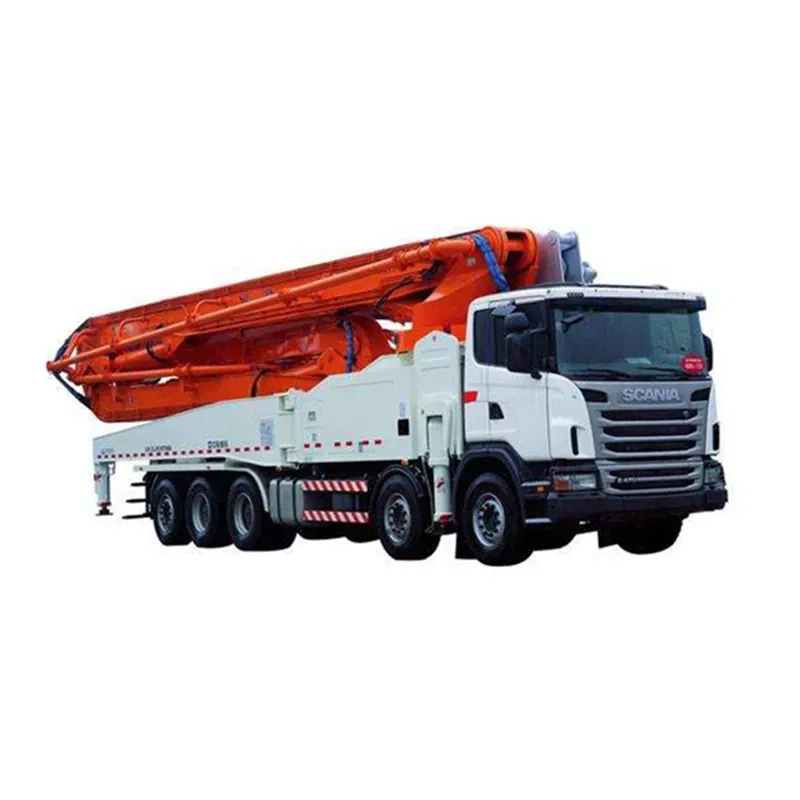

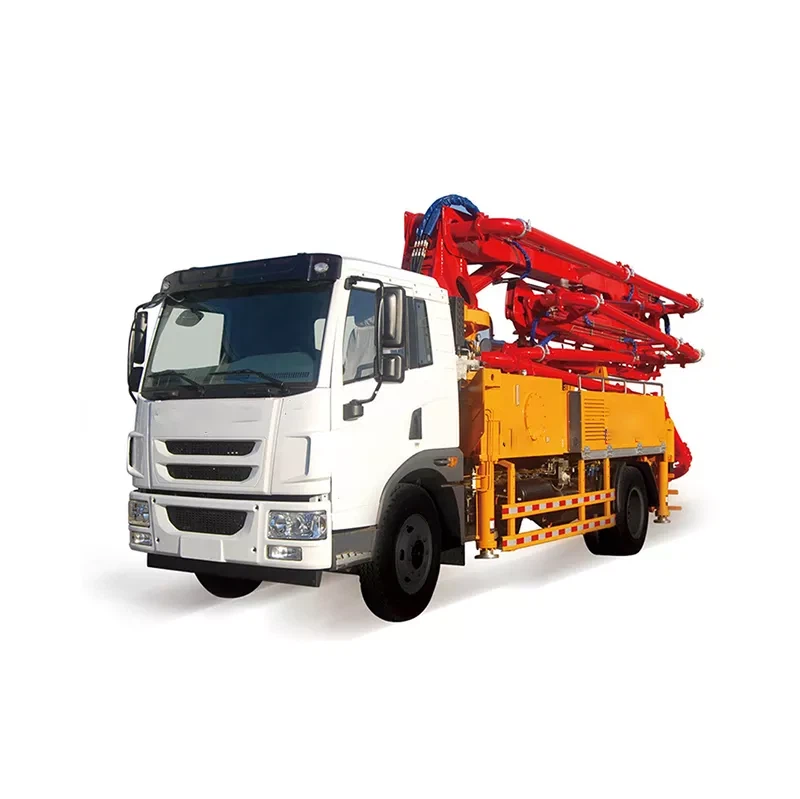

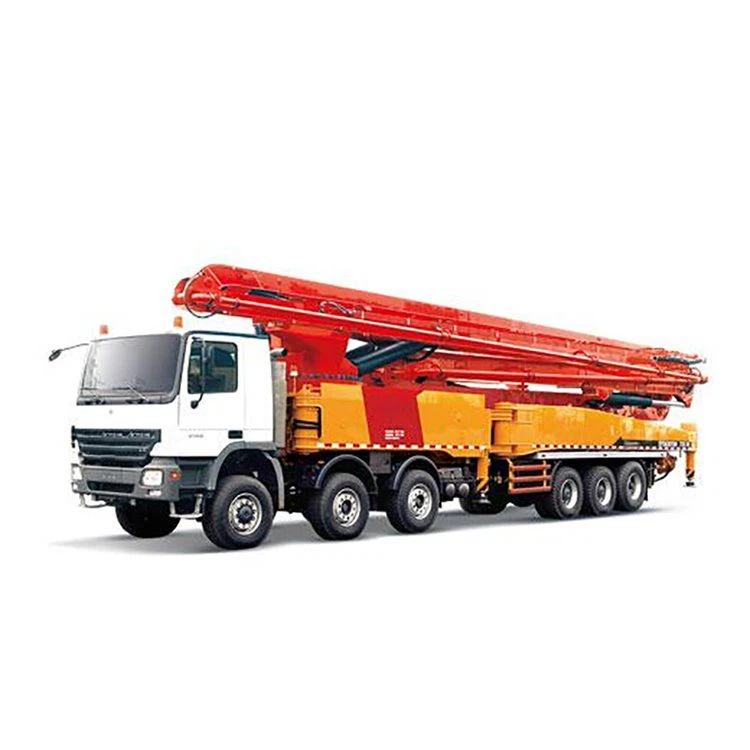

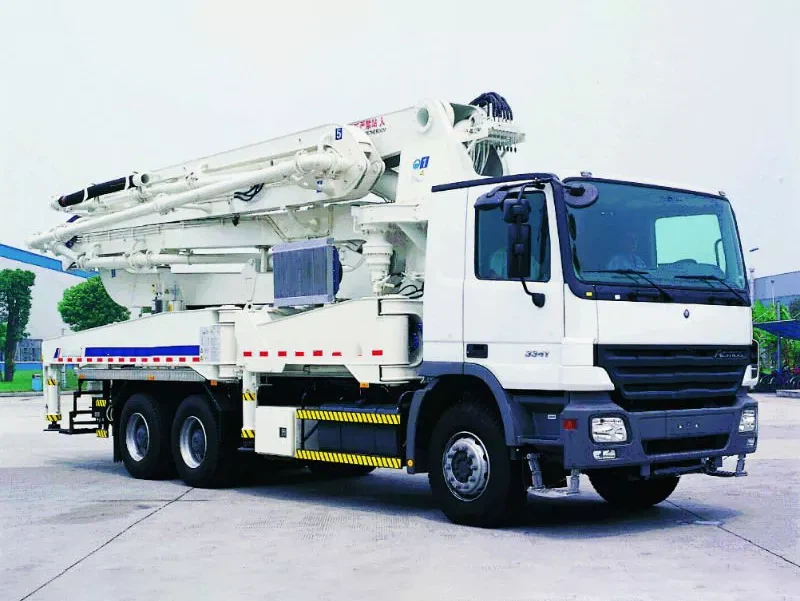

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 62m concrete pumps truck in China. Please feel free to buy cheap 62m concrete pumps truck for sale here from our factory. Quality products and reasonable price are available.
Products Description
62M Concrete Pumps Truck has Chassis and power system
Chassis is famous brand,strong carrying capacity,good dynamic performance and low fuel consumption.Emission system is up to National IV standard, low noise and easy to repair.
62M Concrete Pumps Truck has Jib structure system
jib structure system is based on the finite element analysis,dynamic analysis and test,and the accurate date support. High strenth low alloy steel plate,all materials and welding line by 100% non-destructive technology ensure the jib structure reasonable and highly reliable. "R" type arms with speed stepless adjustment,pressure compensation and load sensing proportion control syetem ensure the arm running freely and excellent operating performance.
Item | Unit | Parameter |
Pumping System | ||
Model | JH5025 | |
Max. Output | m³/h | 50 |
Max. outlet pressure (H/L pressure) | Mpa | 13/7.6 |
Rated working pressure | Mpa | 31.5 |
Pumping frequency (H/L pressure) | times/min | 14/23 |
Hopper capacity | m3 | 0.65 |
Feeding height | mm | 1500 |
Hydraulic system type | Open circuit | |
The type of distribution valve | S VALVE | |
Oil cylinder diameter | mm | DN125 |
Concrete cylinder diameter | mm | DN200 |
Cooling type of hydraulic oil | Fan cooling | |
Jib Structure System | ||
Max. placing height | m | 25 |
Rotary angle | ° | 365 |
Arm foldable angle | ° | 90/180/360/540 |
Arms section quantity | section | 4 |
Chassis and Vehicle | ||
Wheelbase | mm | 4700/5000/5200 |
Power of engine | kw | 132 |
Rated speed of engine | rpm | 2200 |
Emission standard | National IV | |
Total weight of vehicle | kg | 15500 |
Overall dimension of vehicle (L*W*H) | mm | 9650×2500×3500 |
Others parameter | ||
Hydraulic oil hopper capacity | L | 300 |
Water tank capacity | L | 300 |
Lubricating mode | Centralized automatic | |
Control mode | Manual and Remote control | |
