Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 1ton mini excavator in China. Please feel free to buy cheap 1ton mini excavator for sale here from our factory. Quality products and reasonable price are available.
Product Features

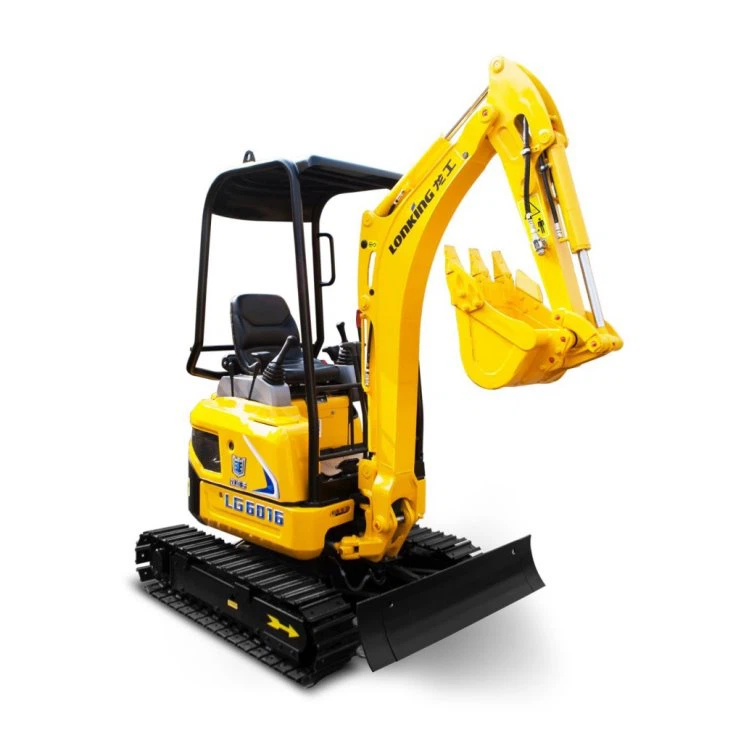

The 1Ton mini Excavator LG6016 is equipped with a Kubota D782-E3B engine as standard, which meets the national emission standards, with low fuel consumption and low noise.
1Ton mini Excavator LG6016 adopts multi-pump hydraulic system, each action is controlled by each pump independently, which improves the coordination of compound action. The confluence channel and boom priority valve are set in the valve to improve the working speed.
The main valve, main pump, rotary motor, travel motor and other key components are imported to ensure product reliability.
The standard yaw device can realize the side shift of the working device and adapt to various working conditions.
The retractable function of the crawler ensures the passage of the excavator in narrow spaces such as elevators and house doors, and can extend the crawler during work to improve work stability.
The standard breaker pipeline and reserved main valve backup connection ensure the normal switching of the multi-functional attachments of the whole machine.
The tailless design of 1Ton mini Excavator LG6016 ensures that the excavator can work in a small space without worrying about the collision of the tail.
The boom cylinder is placed on the top to avoid the collision of the cylinder during deep digging, and at the same time, the digging depth can be increased.
The cab is detachable to ensure normal work in places with limited heights and improve adaptability to working conditions.
Whole machine mass | kg | 1700 |
Bucket capacity | m³ | 0.04 |
Engine Model | D782-E3B | |
Engine power | Kw/rpm | 9.8/2300 |
Fuel tank capacity | L | 13 |
Maximum flow of main pump | L/min | 2*7.2+4.5 |
Working pressure | Mpa | 21.6/18.6 |
Hydraulic tank capacity | L | 18 |
Maximum excavation radius | mm | 3900 |
Maximum excavation height | mm | 3540 |
Maximum excavation depth | mm | 2310 |
Maximum unloading height | mm | 2440 |
Walking speed (high/low) | Km/h | 3.6/2.0 |
Rotation speed | n/min | 8.5 |
Tail turning radius | mm | 620 |
Track wheelbase | mm | 1233 |
Gauge | mm | 1010/760 |
Bucket Max Digging Force | kN (ISO/SAE) | 15.2 |
Stick Max Digging Force | kN (ISO/SAE) | 8.8 |
Bulldozer size (width, height) | mm | 990/260 |
Bulldozer working height (above, underground) | mm | 168/249 |
Shipping Dimensions L×W×H | mm | 3771*1240(990)*2332 |
