Excavator 6 Ton

Excavator 6 Ton

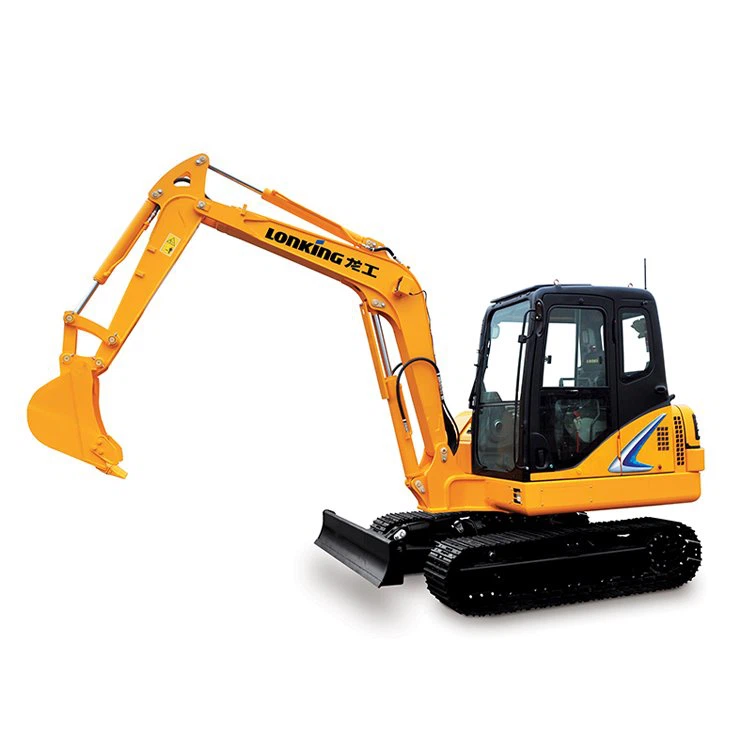

Excavator 6 Ton CDM6060 comes standard with Yanmar 4TNV94L engine, which meets China III emission standards, with lower fuel consumption and lower noise.
Send Inquiry
Description

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of excavator 6 ton in China. Please feel free to buy cheap excavator 6 ton for sale here from our factory. Quality products and reasonable price are available.



Product Features

Excavator 6 Ton CDM6060 comes standard with Yanmar 4TNV94L engine, which meets China III emission standards, with lower fuel consumption and lower noise.

The hydraulic main valve, main pump, rotary motor, travel motor and other key components are further optimized, the product is more reliable, and the action coordination and controllability are better.

Increase the optimized radiator, the heat dissipation efficiency is higher, and the effect is better.

The platform and cover are lengthened to improve the internal space, improve the ventilation efficiency of the air duct, and increase the stability of the Excavator 6 Ton CDM6060.

The working device is placed on the side to reduce hydraulic loss and improve efficiency.

Excavator 6 Ton CDM6060 adopts double-sided door opening design, which is more convenient for maintenance.

The Excavator 6 Ton CDM6060 adopts a new appearance and a new cab, and is equipped with luxurious suspension leather seats. The structure and strength of the pilot control system are optimized through ergonomics, which greatly relieves the operator's operating fatigue.

Whole machine mass

kg

6080

Bucket capacity

0.25

Engine Model


Yanmar 4TNV94L-BVLKC

Engine power

Kw/rpm

36.2/2100

Fuel tank capacity

L

125

Maximum flow of main pump

L/min

151

Working pressure

Mpa

25.1

Hydraulic tank capacity

L

80

Maximum excavation radius

mm

5946

Maximum excavation height

mm

5962

Maximum excavation depth

mm

3812

Maximum unloading height

mm

4071

Walking speed (high/low)

Km/h

5.0/2.5

Rotation speed

n/min

11

Tail turning radius

mm

1641

Track wheelbase

mm

1919

Gauge

mm

1550

Bucket Max Digging Force

kN (ISO/SAE)

40

Stick Max Digging Force

kN (ISO/SAE)

28

Bulldozer size (width, height)

mm

1950/306

Bulldozer working height (above, underground)

mm

366/386

Shipping Dimensions L×W×H

mm

5827*2000*2600
