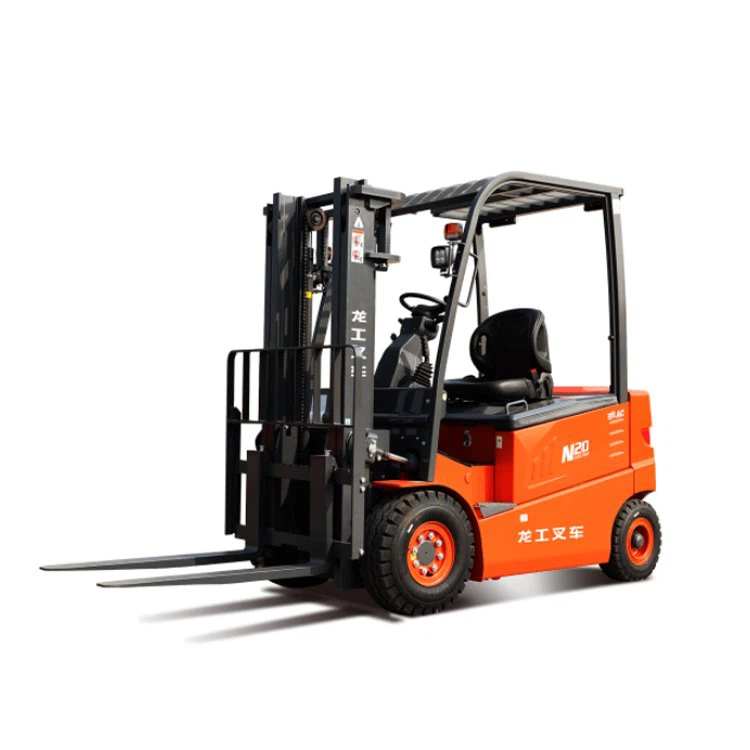

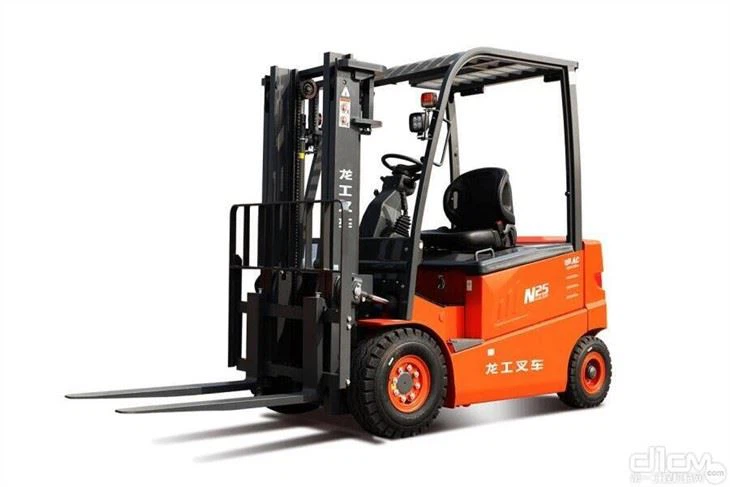

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of cpd20n electric forklift in China. Please feel free to buy cheap cpd20n electric forklift for sale here from our factory. Quality products and reasonable price are available.
CPD20N Electric Forklift power system
Equipped with WP10 electronically controlled engine to meet the national stage III emission requirements for non-road machinery, with strong power, high efficiency and energy saving, and low maintenance costs;
The torque reserve coefficient is large, and the rated power reaches 131kW;
The radial sealing air intake system is adopted to effectively improve the service life of the engine.
CPD20N Electric Forklift Transmission system
The transmission system is perfectly matched with the engine curve, the high-efficiency area is wider, and the transmission efficiency is higher;
Shantui's self-made transmission system has been tested by the market for a long time, with stable performance and reliable quality.
CPD20N Electric Forklift work adaptability
According to the specific working conditions, it can be equipped with straight tilting shovel, U shovel, angle shovel, coal push shovel, rock shovel, sanitation shovel, ripper, traction frame, etc., with stronger adaptability to work, and optional LED work light to improve nighttime construction lighting capability, more secure and reliable.
CPD20N Electric Forklift Ease of maintenance
The electrical wiring harness is protected by bellows and splitter, and the protection level is high;
Open type large space side shield, maintenance is more convenient;
Fuel filter, air filter and other side design, one-stop maintenance;
Lubrication points for key parts such as fan shaft and balance beam are drawn out, making maintenance more convenient.
Engine | Model & type | Shangchai SC11CB184G2B1/Weichai WD10G178E25; | ||
Horsepower | Gross power: 131/175/1850 kW/HP/rpm // | |||
Number of cylinders | 6—126 x 130 mm (bore x stroke) | |||
Piston displacement | 9.726 L | |||
Min. fuel consumption | 214 g/kW·h | |||
Maximum torque | 765 N·m@1300 rpm | |||
Power | Torque converter | 3-element, 1 stage, 1 phase | ||
Transmission | Planetary gear type, power-shift, forced lubrication | |||
Main drive | Spiral bevel gear, single-stage speed reduction, | |||
Steering clutch | Lubricated, multi-disc, spring loaded, hand hydraulically separated, inter-linking with steering brake | |||
Steering brake | Lubricated, floating band structure, foot brake | |||
Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||
Travel speed | Gear | 1st | 2nd | 3rd |
Forward | 0~3.29 km/h | 0~5.82 km/h | 0~9.63 km/h | |
Reverse | 0~4.28 km/h | 0~7.59 km/h | 0~12.53 km/h | |
Undercarriage | Type | Sprayed beam, suspended structure of equalizer | ||
Carrier rollers | 2 each side | |||
Track rollers | 6 each side | |||
Track type | Assembled, single-grouser | |||
Width of track shoes | 510 mm | |||
Pitch | 203.2 mm | |||
Hydraulic | Maximum pressure | 14 MPa | ||
Pump type | Gear pump | |||
Discharge | 243 L/min | |||
Bore of | 110 mm × 2 | |||
Blade | Blade Type | Straight-tilt | Angle | U- Blade |
Dozing capacity | 4.5 m 3 | 4.4 m 3 | 5.0 m 3 | |
Efficiency | 225 m 3 /h | 225 m 3 /h | 250 m 3 /h | |
Blade width | 3388 mm | 3970 mm | 3556 mm | |
Blade height | 1149 mm | 1040 mm | 1120 mm | |
Maximum drop | 540 mm | 530 mm | 540 mm | |
Lifting height of blade | 1095 mm | 1110 mm | 1095 mm | |
Riipper | Maximum digging depth | 572 mm | ||
Maximum lift | 592 mm | |||
Weight of 3-shank ripper | 1667 kg | |||
