Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of crane sany 25 ton in China. Please feel free to buy cheap crane sany 25 ton for sale here from our factory. Quality products and reasonable price are available.
Product features

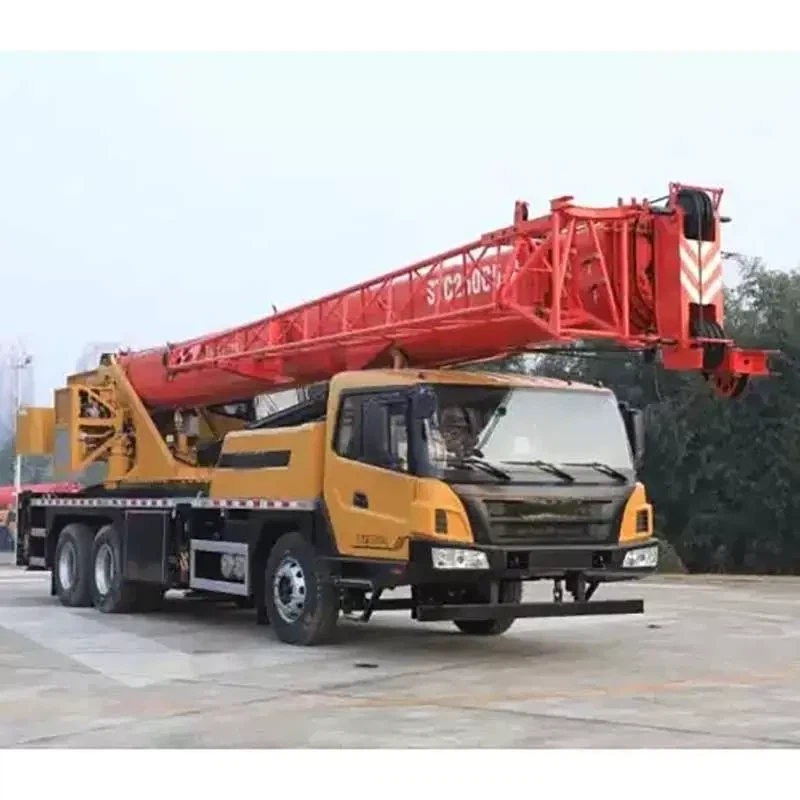

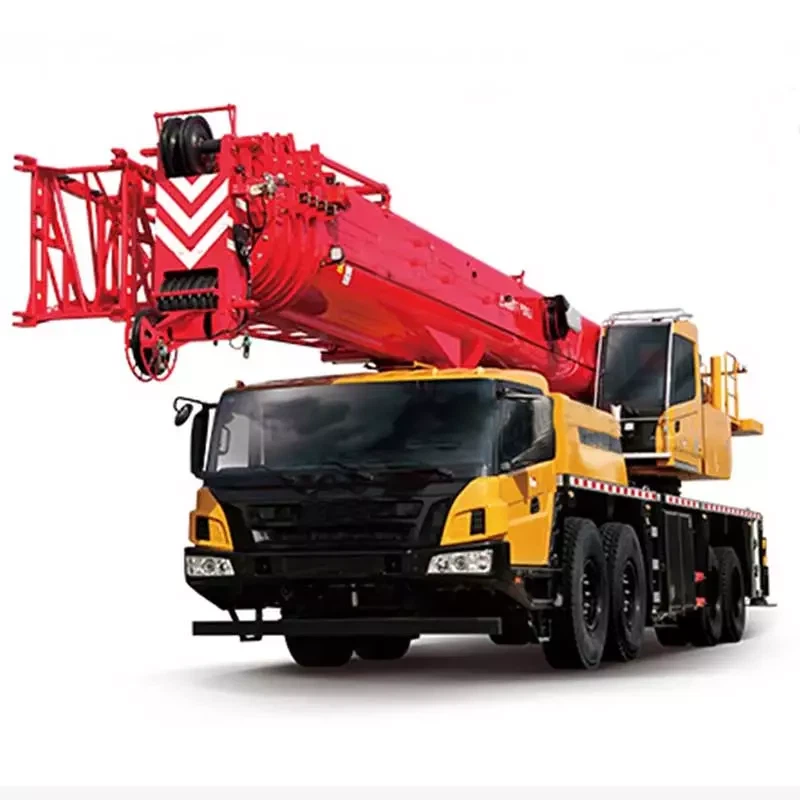

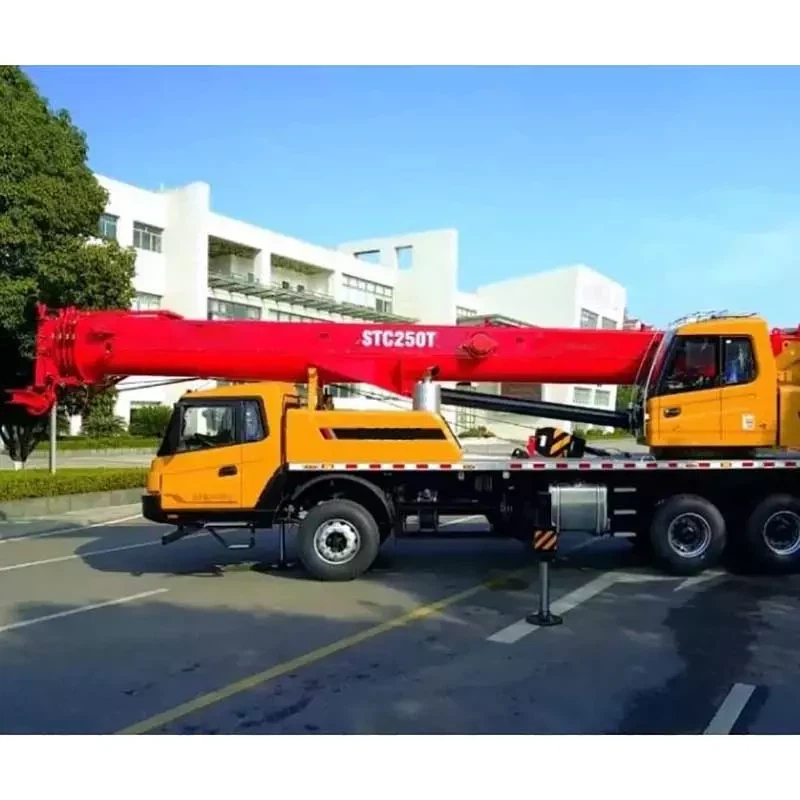

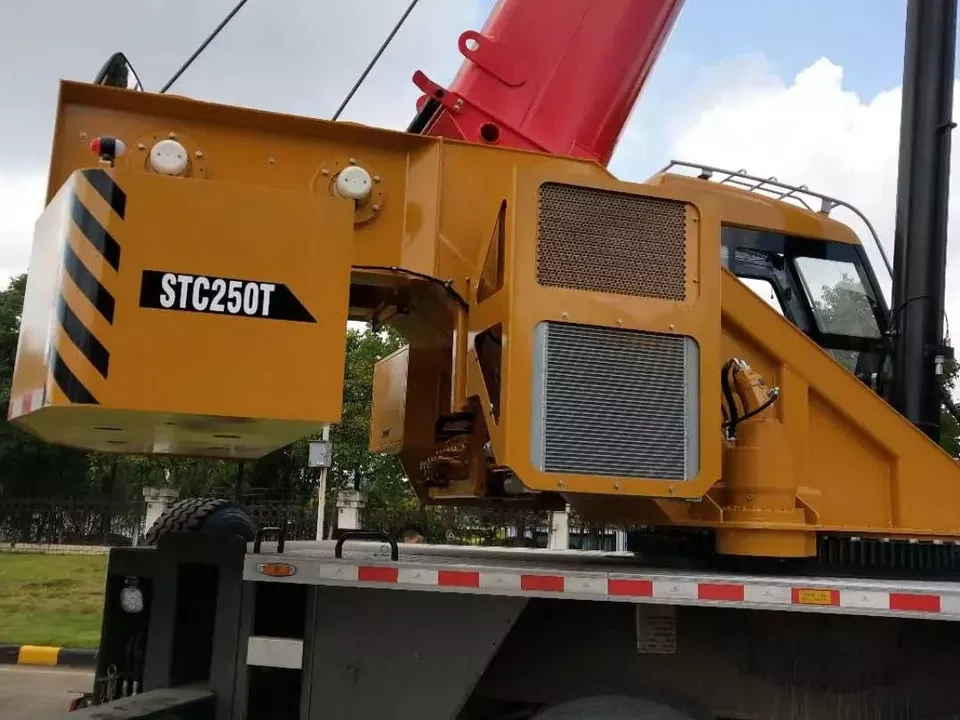

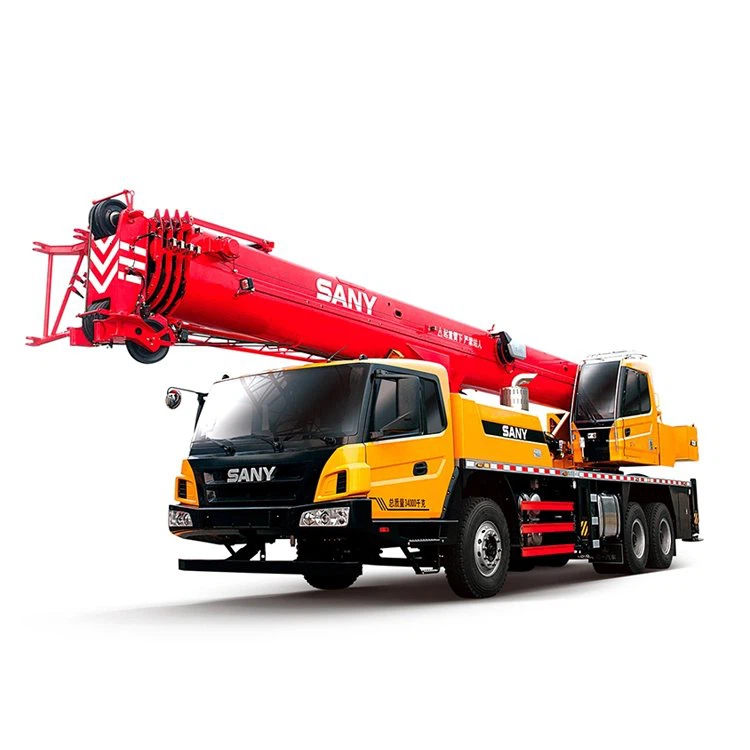

The standard configuration of crane sany 25 ton STC250T
Weichai WP9.310E50 engine
Fast 9JS150T-B transmission
Double variable piston pump
Rubber suspension, steel wire tires
Crane sany 25 ton STC250T has an industry-leading veneer arm and compact arm tail interarm lap
The five-section large-section U-shaped main arm has a full extension of 42.5m
The upturned design has a small deflection
Carrying strong lifting weights is safer
The heightened and widened rectangular variable-section frame lifting anti-torsion and bending resistance has been comprehensively strengthened
The power of crane sany 25 ton STC250T
Weichai high-horsepower engine is used
Weichai high-horsepower engine Fast 9 gear with synchronizer gearbox
Maximum climb 49%
The maximum speed is 90km/h
Hydraulics of the crane sany 25 ton STC250T
Dual-variable pump intelligent flow distribution system
The amplitude changes independently when combining actions
Not disturbed by other actions
Dramatically improve the maneuverability of the combination action
Energy savings at crane sany 25 ton STC250T
Intelligent energy-saving system: intelligent energy-saving mode
Energy efficient and powerful in two modes
Reduced fuel consumption and industry-leading operating conditions
Whole machine mass | kg | 34000 |
Maximum lifting height | m | 51 |
Maximum lifting torque | KN/m | 1158 |
Maximum lifting capacity | t | 25 |
Main winch maximum single rope speed | m/min | 145 |
Lifting arm full extension/contraction time | s | 90/100 |
Lifting arm lifting/landing time | s | 45/50 |
Maximum counterweight | t | 5.9 |
The whole machine is the whole length | mm | 13030 |
The whole machine is full width | mm | 2550 |
The whole machine is fully high | mm | 3590 |
Outrigger span(Horizontal x vertical) | m | 6.4x5.4 |
Engine model) | _ | Weichai WP9H310E62 |
Maximum engine power | kW/rpm | 228/1900 |
| N·m/rpm | 1500/(1000-1400) |
Maximum engine output torque | ||
Maximum travel speed | km/h | 90 |
Minimum turning radius | m | 10.5 |
Maximum climb | % | 49 |
Approach angle | _ | 10° |
Departure corner | _ | 13° |
Minimum ground clearance | mm | 260 |
