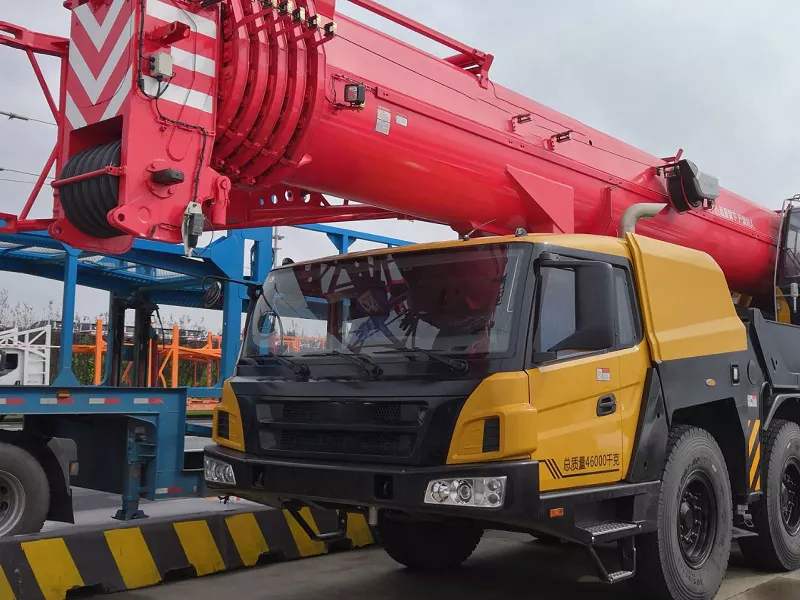

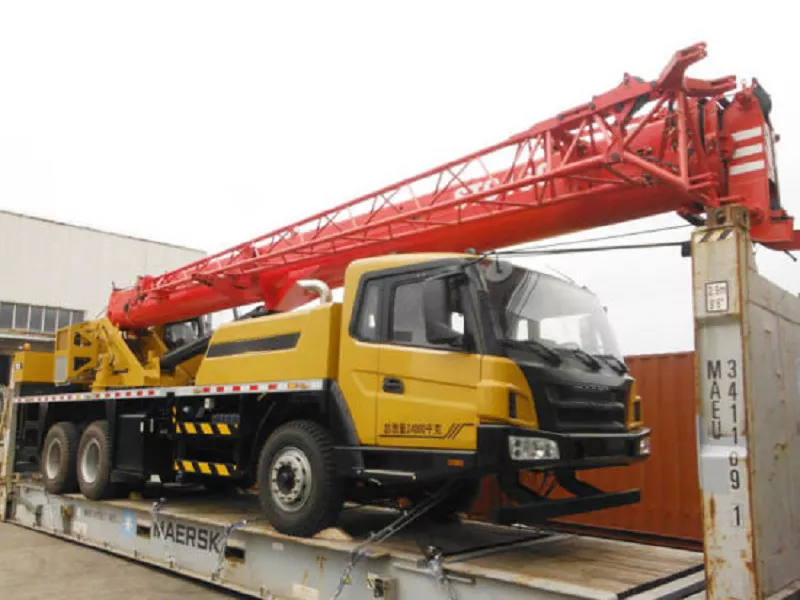

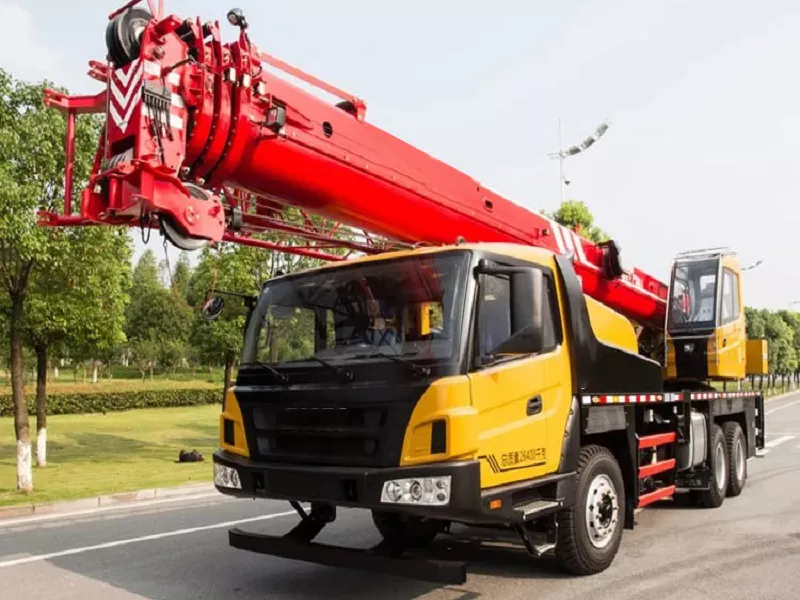

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of small truck crane 16 ton capacity stc160 in China. Please feel free to buy cheap small truck crane 16 ton capacity stc160 for sale here from our factory. Quality products and reasonable price are available.
Product features
Standard configuration of small truck crane 16 ton capacity STC160
Fast 9 boxes
Double reduced bridge with differential lockPlunger hoist motor
Plunger slewing motor
315 meridian large wire tires
Small truck crane 16 ton capacity STC160 is the industry's first 2-bridge 16-ton product
U-shaped main arm
The lifting arm length is 32m and the lifting height is 32.5m
The maximum lifting torque is 735 kN·m
Fast nine gears with synchronizer gearbox
Two-stage deceleration heavy-duty rear axle/192kW upper diesel engine
Small truck crane 16 ton capacity STC160 has ultra-high driving performance
High speed 95km/h; Maximum climb 48%
With differential lock rear axle + 315 steel wire large tire, strong ability to get rid of the minimum ground clearance of 275mm
The approach angle reaches 18°
Off-road performance is very strong, harsh construction sites can be in and out, do not get stuck in the car
Small truck crane 16 ton capacity STC160 has Smooth handling performance
Load-sensitive systems with in-valve compensation consume less fuel/are more smooth
The rotary hoist piston motor + high speed is faster than the reducer to control precisely/faster
New material slider
Less coefficient of friction / smoother telescopic arm
Whole machine mass | kg | 20600 |
Maximum lifting height | m | 32.5 |
Maximum lifting torque | KN/m | 735 |
Maximum lifting capacity | t | 16 |
Main winch maximum single rope speed | m/min | 120 |
Lifting arm full extension/contraction time | s | 40/35 |
Lifting arm lifting/landing time | s | 40/50 |
Maximum counterweight | t | 1.7 |
The whole machine is the whole length | mm | 11700 |
The whole machine is full width | mm | 2500 |
The whole machine is fully high | mm | 3700 |
Outrigger span(Horizontal x vertical) | m | 6x4.98 |
Engine model) | _ | SCH7270Q6 |
Maximum engine power | kW/rpm | 199/2300 |
| N·m/rpm | 1000/(1300-1500) |
Maximum travel speed | km/h | 95 |
Minimum turning radius | m | 10 |
Maximum climb | % | 48 |
Approach angle | _ | 18° |
Departure corner | _ | 11° |
Minimum ground clearance | mm | 275 |
