Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of crane truck 100 ton in China. Please feel free to buy cheap crane truck 100 ton for sale here from our factory. Quality products and reasonable price are available.
Product selling point

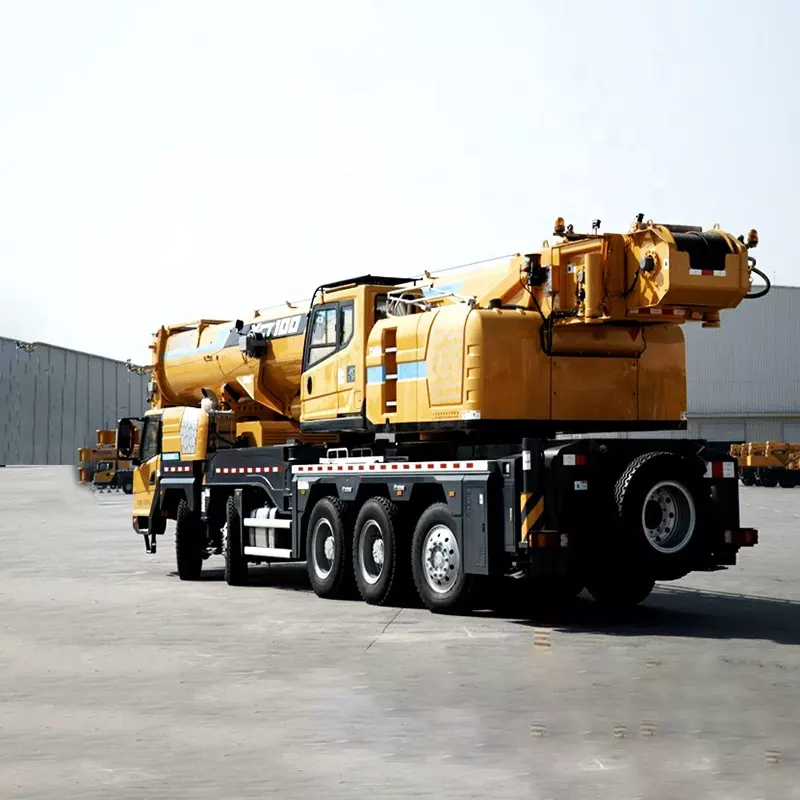

New appearance, K-type outriggers, compact structure, leading performance, safety and reliability, economical and environmental protection, crane truck 100 ton XCT100 is a boutique model tailored for users.
The lifting performance is in the leading position, and the lifting performance of the whole machine is 15% higher than the industry's highest level.
crane truck 100 ton XCT100 adopts a low-speed high-torque power system to achieve the perfect combination of optimal power and optimal economy.
Automatic working condition planning technology, safe and efficient hoisting operation.
The newly upgraded appearance and humanized design make the crane truck 100 ton XCT100 more comfortable to drive and operate.
Project | Unit | Parameters |
parameter item | - | crane truck 100 ton XCT100 |
Size parameters | ||
Overall length of the machine | mm | 15600 |
full width | mm | 3000 |
Overall height | mm | 3870 |
Axle base | mm | 1920+3500+1420+1505 |
wheelbase | mm | 2449/2449/2315/2315/2449 |
Weight parameter | ||
Total mass in driving state (kg) | 54990 | |
Axle load | kg | 10000+10000+13000+13000+9000 |
Dynamic parameters | ||
engine model | - | (Get on) WEICHAI WP6G240E330 or Mercedes-Benz OM906LA.E3A/2 (Get off) WP12.430E50 or ISM11E5 440 |
Engine rated power (kw/(r/min)) | (Get on) 176/2300 or 190/2200 (Get off) 316/1900 or 324/1900 | |
Engine rated torque | N*m/(r/min) | (Get on) 860/(1200-1700) or 1000/(1200-1600) (Get off) 2060/(1100-1400) or 2080/1200 |
driving parameters | ||
drive | ||
Maximum travel speed | (km/h) | 90 |
Minimum stable driving speed | km/h | 2.5-3 |
turn | ||
Minimum turning diameter | m | 23 |
Arm head minimum turning diameter (m) | 26.8 | |
Maximum grade | % | 45 |
Minimum ground clearance (mm) | 326 | |
approach angle | ° | 18 |
departure angle | ° | 13 |
Braking distance (m) | ≤10 | |
Fuel consumption per 100 kilometers (L) | 70 (Weichai)/65 (Xikang) | |
Main performance parameters | ||
Maximum rated total lifting weight (t) | 100 | |
Minimum rated amplitude (m) | 3 | |
The maximum lifting moment of the basic arm | (kN*m) | 4704 |
Turntable tail turning radius (mm) | 4970 | |
outrigger | ||
Longitudinal | m | - |
Horizontal | m | - |
Maximum lift height | ||
basic arm | m | 13.9 |
Longest main arm | m | 63.3 |
Longest main boom + jib | m | 92.6 |
The longest main boom + jib + extension | - | |
Boom length | ||
basic arm | m | 13.5 |
Longest main arm | m | 64 |
Longest main boom + jib | - | 82.1 |
The longest main boom + jib + extension | m | 96.1 |
Working speed | ||
maximum rotation speed | r/min | 2 |
Lifting speed | ||
main hoisting mechanism | - | 135 |
Auxiliary lifting mechanism | - | 105 |
Boom extension time | ||
Full extension | s | 480 |
full shrink | - | - |
Amplitude time | ||
Full arm lift | s | 60 |
Full arm drop | s | - |
Outrigger retraction--level | ||
At the same time put -- level | s | 40 |
At the same time close - level | s | 40 |
Outrigger retraction-vertical | ||
put at the same time | s | 50 |
receive at the same time | s | - |
