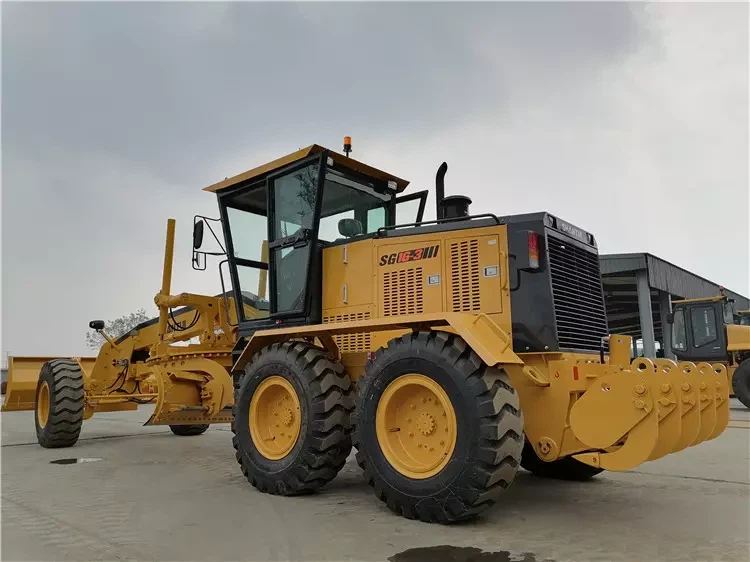

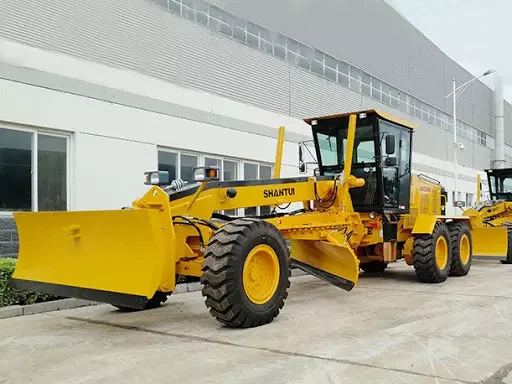

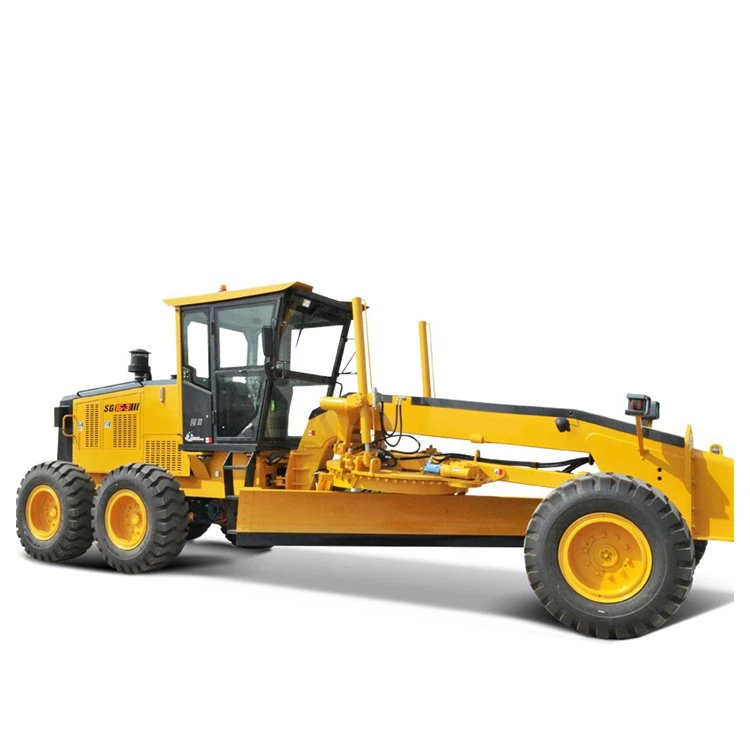

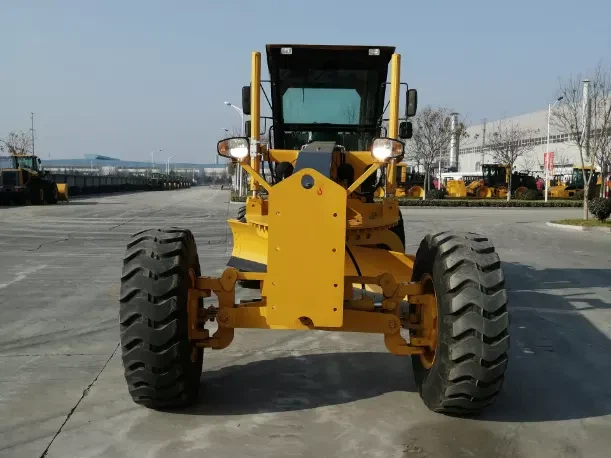

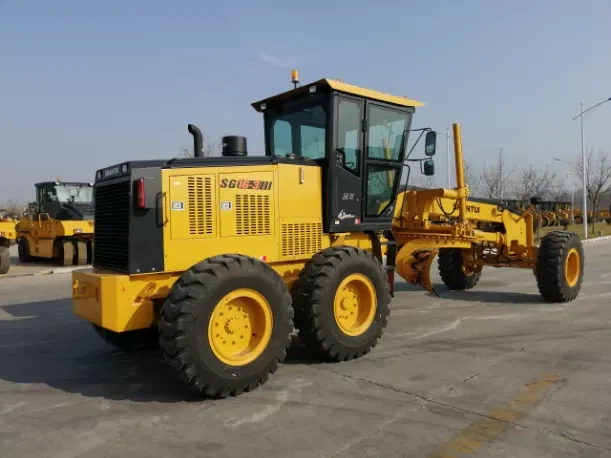

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of motor grader sg16 in China. Please feel free to buy cheap motor grader sg16 for sale here from our factory. Quality products and reasonable price are available.
Motor Grader SG16 has a six-speed hydraulic electronically controlled transmission, intelligent speed ratio distribution, so that the machine has three working gears to choose from, smooth operation while ensuring flexibility.
The overall box structure is welded by the sheet metal, with high strength, corrosion resistance and other characteristics.
Motor Grader SG16 is easy to operate and has excellent resistance to external impact. It is suitable for working conditions with large amount of work and harsh environment.
Motor Grader SG16 adopts international advanced hydraulic brake control technology and internationally renowned hydraulic unit to ensure safe and reliable braking.
The upscale, fully sealed luxury cab with full view and efficient shock absorbing seats maximizes operating comfort.
The cab and main frame are connected by shock absorber to ensure safe and reliable operation.
Motor Grader SG16 standard with large capacity heating and cooling air conditioning system and double-layer sealed side door, noise less than 84dB, effectively reduce the labor intensity of operators.
The Motor Grader SG16 comes with maintenance-free high-performance batteries.
A four-door steel hood facilitates engine maintenance and heat dissipation.
Hydraulic tank adopts overhead removable filter element, convenient maintenance.
Technical characteristics
Power system
Weichai WP6 electronic control engine (optional DCEC engine), the emissions meet the national non-road machinery stage Ⅲ emission requirements, intelligent and efficient, strong parts versatility, low maintenance cost.
The whole machine matches reasonably, the transmission efficiency is high, the fuel consumption is low.
Driving environment
High efficiency shock absorbing seat, maximizes operating comfort.
Overall seal vibration reduction system of cab, double-layer seal, equipped with sound-absorbing sponge, low vibration noise, noise can be reduced to 80 db below.
Standard cooling and heating air conditioning, intelligent display control terminal integrated instrument, radio, toolbox, fire extinguisher, reversing alarm, etc., to provide more user-friendly driving experience, driving environment comfortable and safe.
Adaptability to work
Electric hydraulic control power shift transmission, with front 6 and rear 3 gears, can choose the best gear according to the operation road conditions, to achieve the best collocation of walking and operation.Three-section integral drive axle, built-in imported no-SPIN automatic anti-slip differential, smooth and reliable transmission.Motor Grader SG16 Has balance box, up and down 15° angle swing, heavy roller chain drive, so that the machine has better terrain adaptability. It can meet normal construction operation under special road conditions, stable power output and strong driving force.
Operating performance
Motor Grader SG16 in the same type of domestic grader with greater traction, compared with the same type of domestic products more efficient operation.
Independent patented external gear working device, large transmission torque, strong resistance to external impact.Larger Angle range of shovel (44°-91°), improve material control ability, especially useful in dealing with dry materials and clay, can significantly improve the operation efficiency of grader.
It has the ability of moving forward two gear full load scraping, which can significantly improve the production of the whole machine compared with similar domestic products.
Easy maintainability
The hydraulic pin cylinder only needs one person to complete the operation of the swing frame, and there is no safety hazard, convenient for users to use.
Motor Grader SG16 structural parts inherit the excellent quality of mature products.
The electrical wiring harness adopts seamless bellows and splitter, with high protection grade.Maintenance-free battery, placed in the back of the equipment, with a large battery life.
Product name | Motor Grader SG16 |
Performance parameters | |
Operating weight of machine (kg) | 15400 |
Wheelbase (mm) | 5812 |
Wheel tread (mm) | 2050 |
Minimum ground clearance (mm) | 430 |
Steering angle of front wheels (°) | ±45 |
Articulated steering angle (°) | ±25 |
Maximum traction force (kN) | 65(f=0.75) |
Turning radius (mm) | 6600 (Outer side of front wheel) |
Maximum gradeability (°) | 20 |
Width of shovel blade (mm) | 3660 |
Height of shovel blade (mm) | 615 |
Blade slewing angle (º) | 360 |
Blade cutting angle (º) | 30-68 |
Maximum digging depth of blade (mm) | 500 |
Length (mm) | 8036 |
Width (mm) | 2380 |
Heigh (mm) | 3170 |
Engine | |
Engine model | 6BTAA5.9-C150 |
Emission | China-II |
Type | Mechanical direct injection |
Rated power/rated speed (kw/rpm) | 118kW/2200 |
Drive system | |
Torque converter | Single-stage single-phase three-element |
Transmission | Countershaft power shift |
Gears | Six forward and three reverse |
Speed for forward gear I (km/h) | 5.4 |
Speed for forward gear II (km/h) | 8.3 |
Speed for forward gear III (km/h) | 13.2 |
Speed for forward gear IV (km/h) | 20.6 |
Speed for forward gear V (km/h) | 29.6 |
Speed for forward gear VI (km/h) | 44 |
Speed for reverse gear I (km/h) | 5.4 |
Speed for reverse gear II (km/h) | 13.2 |
Speed for reverse gear III (km/h) | 29.6 |
Brake system | |
Service brake type | Hydraulic brake |
Parking brake type | Mechanical brake |
Brake oil pressure (MPa) | 10 |
Hydraulic system | |
Working pump | Constant displacement gear pump, with flow at 28ml/r |
Operating valve | Integral multi-way valve |
Pressure setting of safety valve (MPa) | 16 |
Pressure setting of safety valve (MPa) | 12.5 |
Filling of fuel/oils/fluids | |
Fuel tank (L) | 220 |
Working hydraulic fuel tank (L) | 85 |
Transmission (L) | 28 |
Drive axle (L) | 28 |
Balance box (L) | 2X23 |
