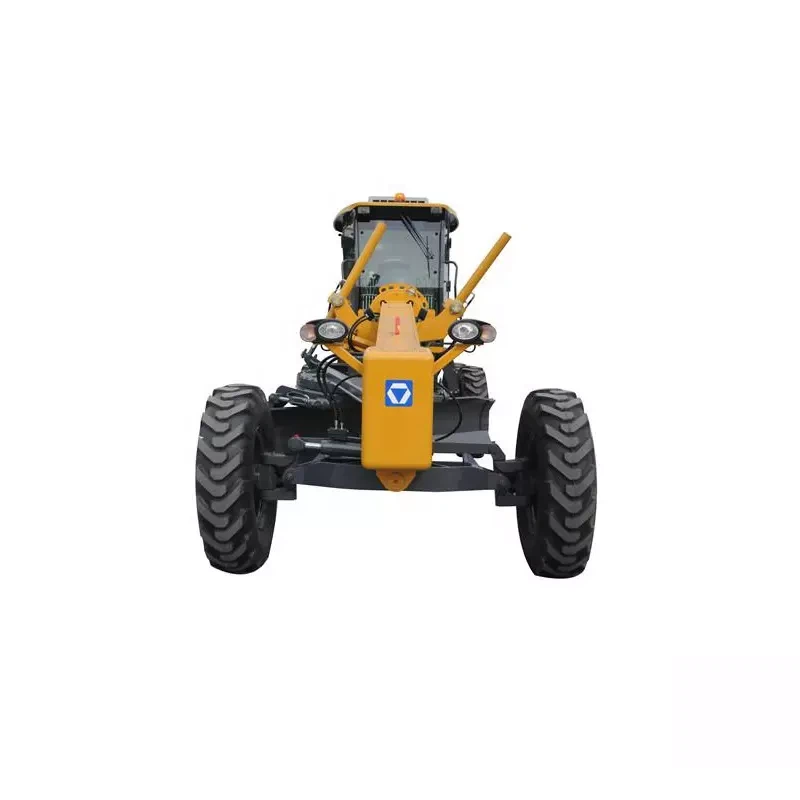

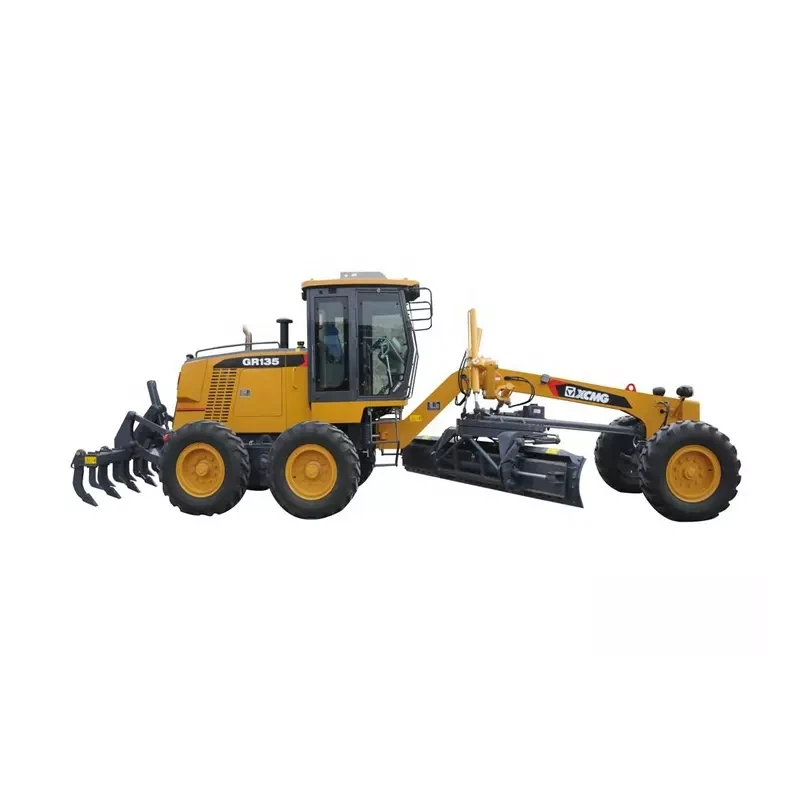

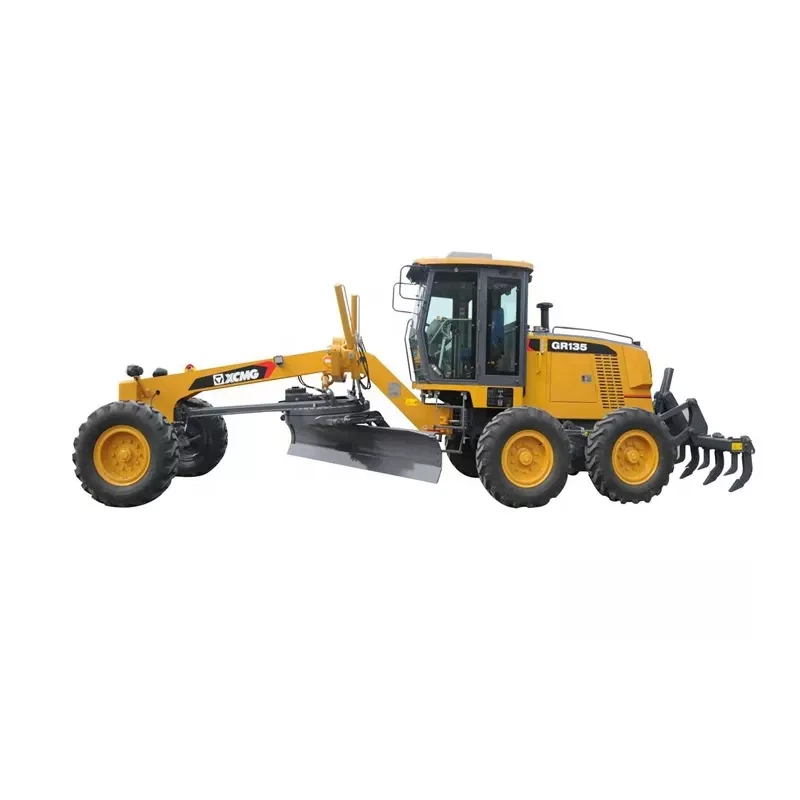

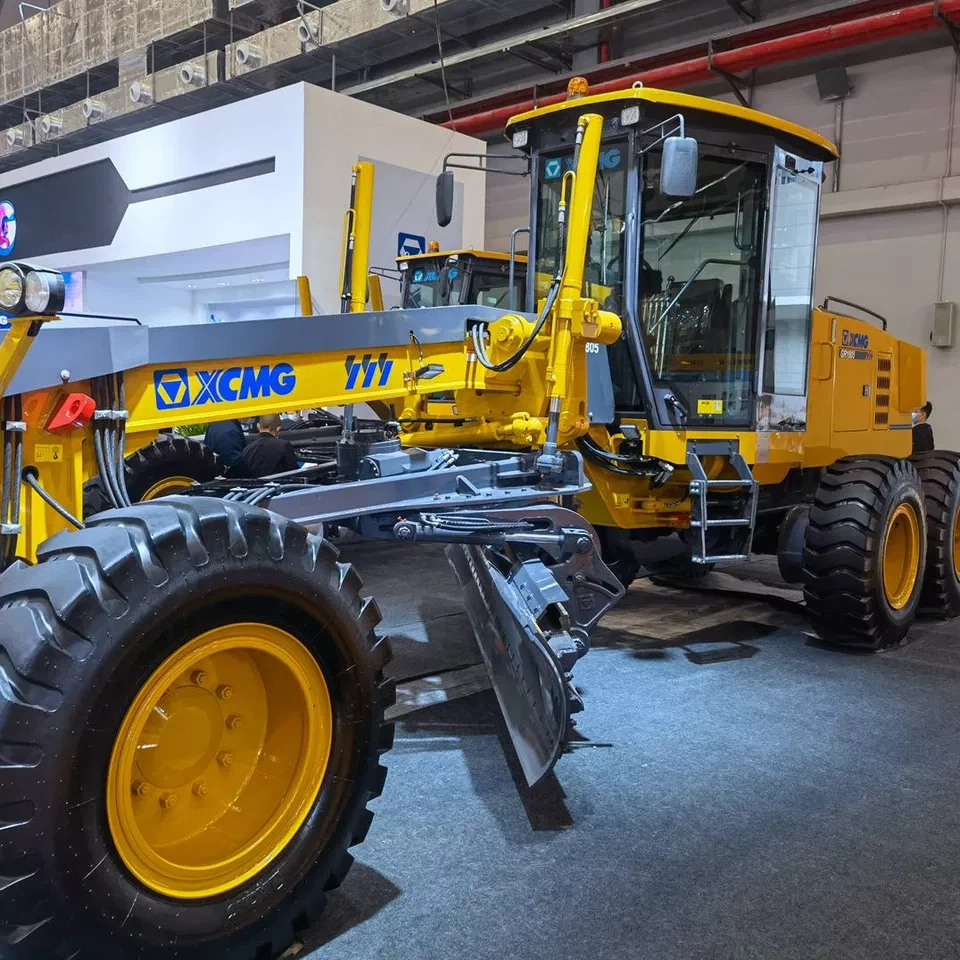

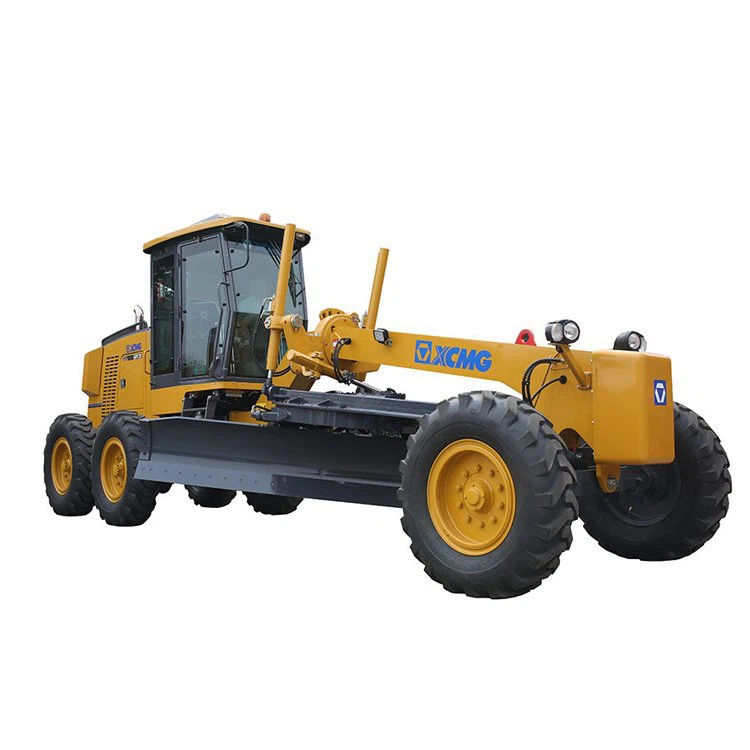

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 140hp motor grader in China. Please feel free to buy cheap 140hp motor grader for sale here from our factory. Quality products and reasonable price are available.
Product Selling Point
140hp motor grader GR135 adopts DCEC engine, which has high reliability and fuel economy, low noise and low emission.
The 140hp motor grader GR135 adopts an articulated frame, with front wheel steering, small turning radius and flexible maneuverability.
Electro-hydraulically controlled power shift transmission with 6 forwards and 3 reverses.
International supporting hydraulic parts, reliable work.
The action of the 140hp motor grader GR135 blade is fully hydraulically controlled.
The rear axle is a three-stage drive axle with a self-locking differential.
The operating console and seat of 140hp motor grader GR135 can be adjusted, and the joystick and instruments are reasonably arranged, which is convenient to use and improves the driving comfort.
Description | Unit | Parameter value | |
Engine model | 6BT5.9-C130-Ⅱ | ||
Rated power/speed | kw(r/min) | 97(2200) | |
Overall dimension (standard) | 8015X2380X3050 | ||
Total weight (standard) | kg | 11000 | |
Tire specification | 13.00-24 | ||
Ground clearance (front axle) | mm | 515 | |
Tread | mm | 2020 | |
Space of front and rear axles | mm | 5780 | |
Forward velocity | km/h | 5/8/13/20/30/42 | |
Reverse speed | km/h | 5/13/30 | |
Tractive effort f=0.75 | kN | 61.3 | |
Maximum gradeability | % | 20 | |
Tire inflation pressure | kPa | 300 | |
Working system pressure | MPa | 16 | |
Transmission pressure | MPa | 1.3—1.8 | |
Maximum steering angle of front wheel | ±49° | ||
Maximum slant angle of front wheel | ±17° | ||
Maximum oscillating angle of front axle | ±15° | ||
Maximum oscillating angle of equilibrium box | ±16° | ||
Maximum steering angle of frame | ±27° | ||
Minimum turning radius | m | 6.6 | |
Scrape knife | Maximum lift height | mm | 410 |
Maximum cutting depth | mm | 515 | |
Maximum tilt angle | 90° | ||
Cutting angle | 54°—90° | ||
Angle of revolution | 360° | ||
Length & chord height | mm | 3048x610 | |
Coolant | L | 50 | |
Fuel tank | L | 260 | |
Engine | L | 18 | |
Transmission | L | 26 | |
Hydraulic oil | L | 96 | |
Drive axle | L | 28 | |
Balancing box | L | 46 | |
