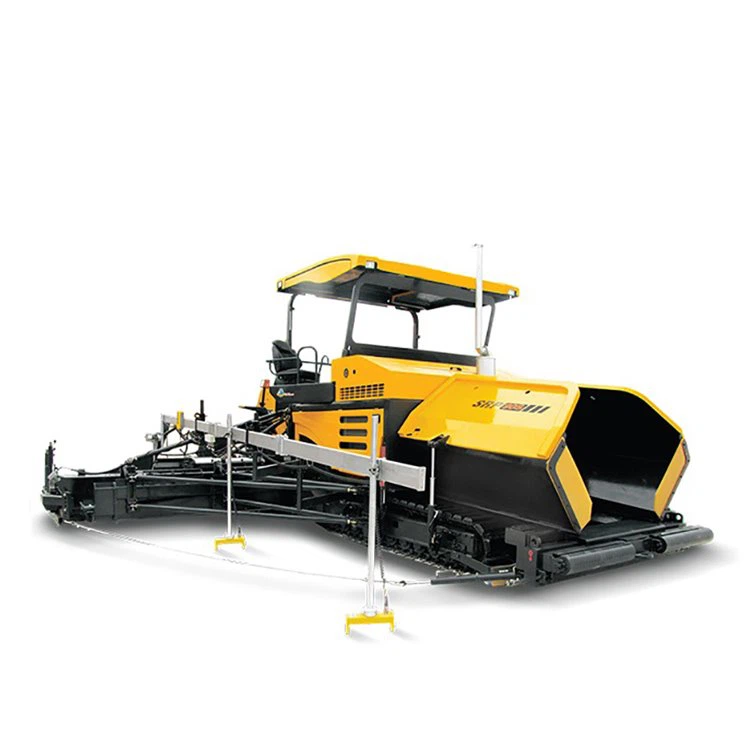

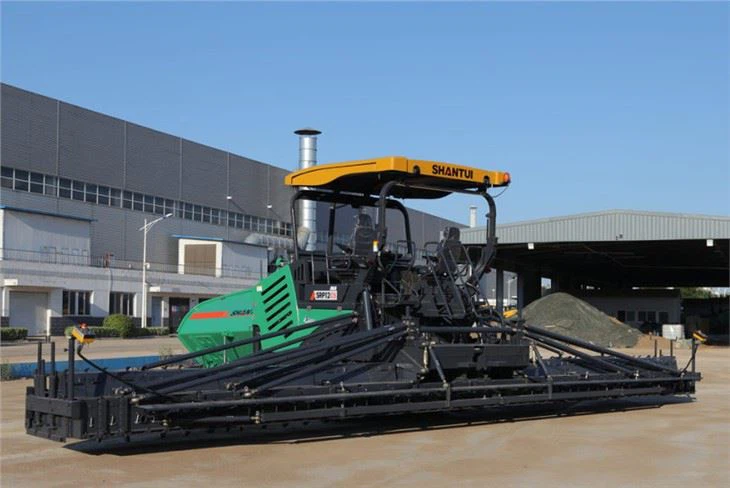

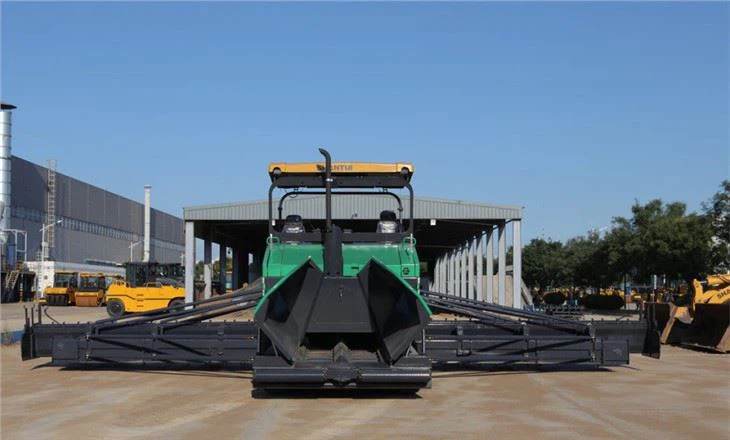

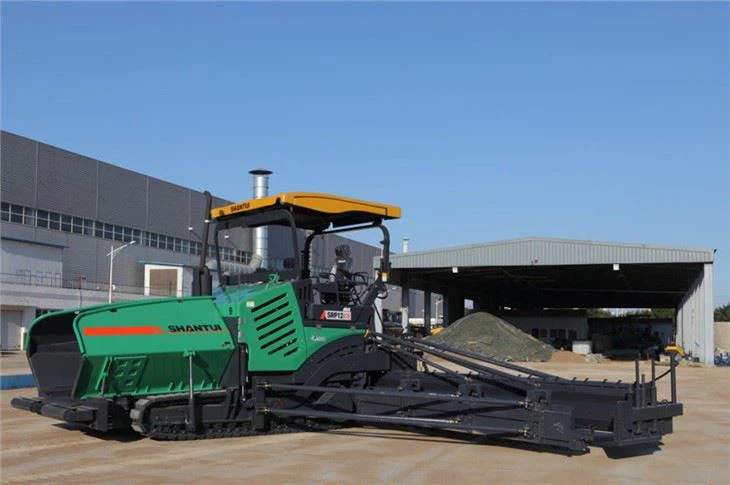

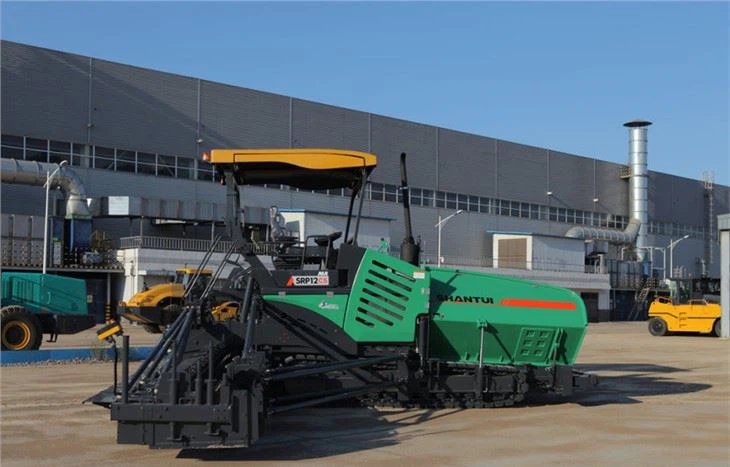

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 12m paver machine in China. Please feel free to buy cheap 12m paver machine for sale here from our factory. Quality products and reasonable price are available.
Technical Features
Walking system
12m paver machine SRP12-C5 adopts independent left and right microcomputer control hydraulic system, which has good low-speed stability and straightness of driving.
12m paver machine SRP12-C5 adopts domestic famous brand four-wheel belt, lengthened crawler, independent drive and large driving torque, uniform speed, to ensure the flatness and uniform density of the paving.
Receiving device
Large-capacity hopper, super-strong receiving capacity, reduce the switching time of the material truck, and ensure continuous construction in special road conditions.
Double overturning cylinders can increase the speed of material mixing and increase productivity.
High-strength hopper support can effectively prevent the hopper from being deformed.
Spring shock-absorbing paving reduces the impact of hopper discharge on the paver, making the work quality higher.
Maintenance
The fully opened engine hood and left and right side doors, all working pumps, control valves, and filter elements are within easy reach, making maintenance points easy to access.
Centralized lubrication system to automatically deliver grease to scraper conveyor and screw distributor bearings.
Parameter name | 12m paver machine SRP12-C5(EA end telescopic version) | 12m paver machine SRP12-C5(MA mechanically assembly version ) |
Performance parameters | ||
Working mass (kg) | 36000 | 33000 |
Basic paving width (m) | 2.5 | 2.5 |
Max. paving width (m) | 12.5 | 12.5 |
Max. Paving thickness (mm) | 500 | 500 |
Max. Productivity (t/h) | 1000 | 1000 |
Engine | ||
Engine model | SC9DF | SC9DF |
Rated power/rated speed (kw/rpm) | 213/2000 | 213/2000 |
Dimensions | ||
Overall dimensions of the whole machine (mm) | 7800*12500*3950 | 7000*12500*3950 |
Walking performance | ||
Driving speed (km/h) | 0-3 | 0-3 |
Paving speed (m/min) | 0-25 | 0-25 |
Undercarriage | ||
Hopper | ||
Hopper capacity (t) | 16 | 16 |
Working equipment | ||
Screed | DM9525DE | DM12525Q |
