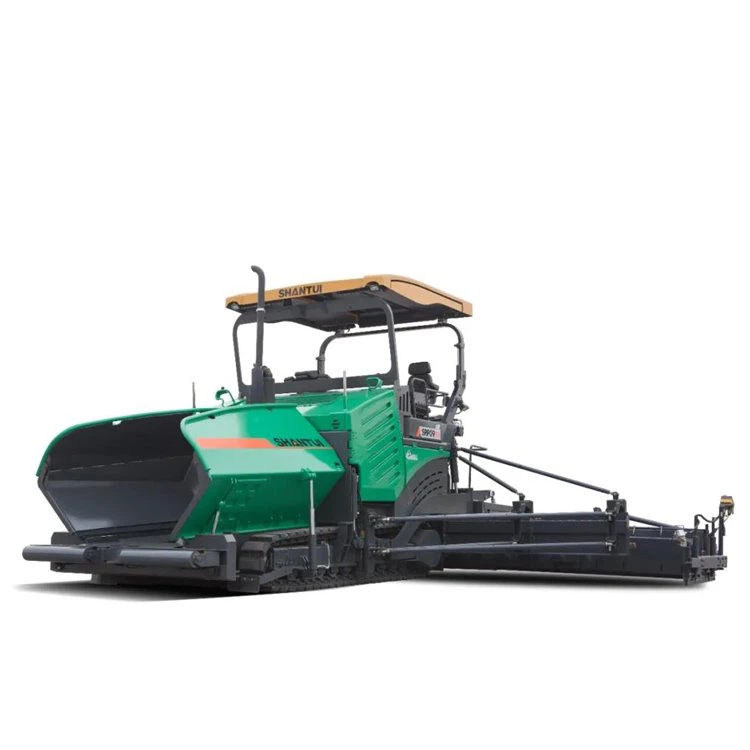

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 9m paver machine in China. Please feel free to buy cheap 9m paver machine for sale here from our factory. Quality products and reasonable price are available.
Technical Features
Power system
9m paver machine SPR09-C5 is equipped with a 213kW high-power engine, which meets the national Ⅲ emission standard, has low noise and strong power, can adapt to various working conditions, and is equipped with an economical mode to save energy and reduce consumption.

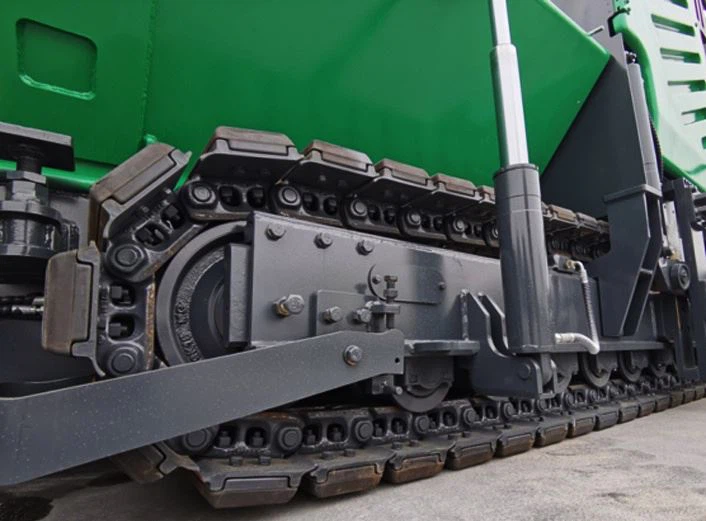

Walking system
9m paver machine SPR09-C5 adopts independent left and right microcomputer control hydraulic system, which has excellent low speed stability and driving straightness.
9m paver machine SPR09-C5 adopts the industry-leading SHANTUI four-wheel and one-belt products, which are resistant to wear and tear, have a long service life, and have stable driving and paving speeds.

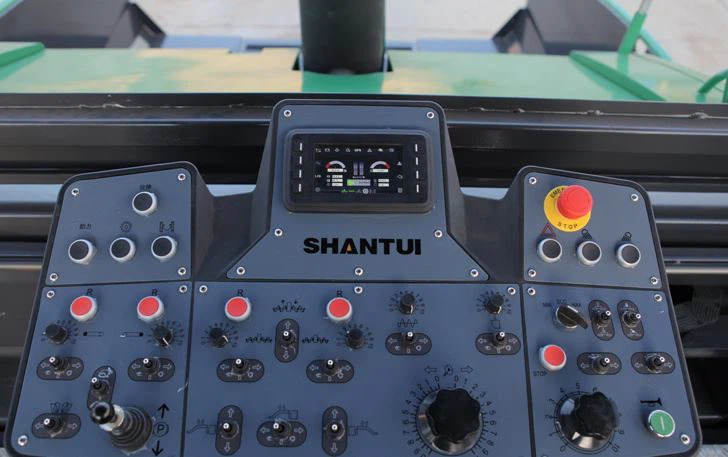

Control System
9m paver machine SPR09-C5 adopts imported Finnish EPEC controller, combined with SHANTUI intelligent management system, to ensure the continuity and low speed stability of paving.
Equipped with a large-screen color display, real-time monitoring of construction parameters, with fault diagnosis function, simple operation, and more friendly human-computer interaction.
Equipped with MOBA imported contact leveling instrument as standard, intelligent leveling system, high leveling accuracy and strong anti-interference performance.
Screed
MA Mechanical Assembly Screeds
Double vibrating, gas heating.
High-strength frame structure, wide wear-resistant bottom plate, good paving stability and high work quality.
Hook-type quick assembly, the efficiency is increased by 60%, simple and fast.
SA hydraulic telescopic screed
Single vibrator, electric heating.
The multi-slid structure screed has high overall rigidity, strong load resistance and good working stability.
Closed plunger vibrating system, the output torque is increased by 80%.
The amplitude is adjustable (0/2/4/6/8) to meet the paving requirements of 3-50cm thickness.

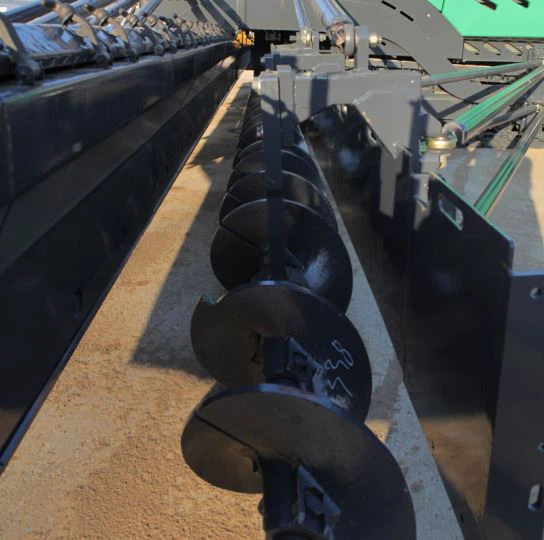

Delivery and distribution system
9m paver machine SPR09-C5 adopts four sets of independent left and right conveying and distributing systems with full hydraulic transmission.
Large diameter, large pitch spiral material distribution structure, strong material distribution ability, low speed material distribution, to avoid segregation.
The left and right screw distributors can be driven independently, and the height of the distributor device from the ground is infinitely adjustable to meet the paving needs of different thicknesses and avoid segregation.
Receiving device
Large-capacity hopper, super-strong receiving capacity, reduce the switching time of the material truck, and ensure continuous construction in special road conditions.
Double overturning cylinders can increase the speed of material mixing and increase productivity.
High-strength hopper support can effectively prevent the hopper from being deformed.
Spring shock-absorbing paving reduces the impact of hopper discharge on the paver, making the work quality higher.

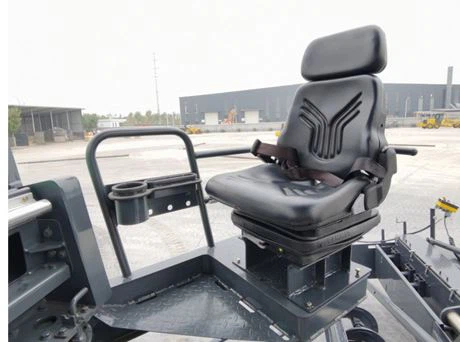

Driving environment
The injection console can be slid left and right, and the angle can be adjusted back and forth to meet the operating comfort of operators in different positions and sizes.
The suspended seat can be rotated to the outside of the fuselage, which is convenient for construction observation.
The console is equipped with a USB power interface for easy charging of mobile phones. The armrest of the seat is equipped with a cup holder and a mobile phone slot, which makes the human-computer interaction more friendly.
With the help of a manual hydraulic pump, the hood and tailpipe can be raised and lowered simultaneously for easy transport.
Maintenance
The fully opened engine hood and left and right side doors, all working pumps, control valves, and filter elements are within easy reach, making maintenance points easy to access.
Centralized lubrication system to automatically deliver grease to scraper conveyor and screw distributor bearings.
Parameter name | SRP09-C5(MA mechanically assembly version ) | SRP09-C5(SA hydraulic telescopic version ) |
Performance parameters | ||
Working mass (kg) | 30000 | 29000 |
Basic paving width (m) | 2.5 | 3-5.7 |
Max. Paving width (m) | 9.5 | 9 |
Max. Paving thickness (mm) | 500 | 500 |
Max. Productivity (t/h) | 1000 | 1000 |
Engine | ||
Engine model | SC9D | SC9D |
Rated power/rated speed (kw/rpm) | 213/2000 | 213/2000 |
Dimensions | ||
Overall dimensions of the whole machine (mm) | 7000*9500*3950 | 7400*9000*3950 |
Walking performance | ||
Driving speed (km/h) | 0-3 | 0-3 |
Paving speed (m/min) | 0-25 | 0-25 |
Undercarriage | ||
Hopper | ||
Hopper capacity (t) | 16 | 16 |
Working equipment | ||
Screed | DM9525Q | AS9030D |
