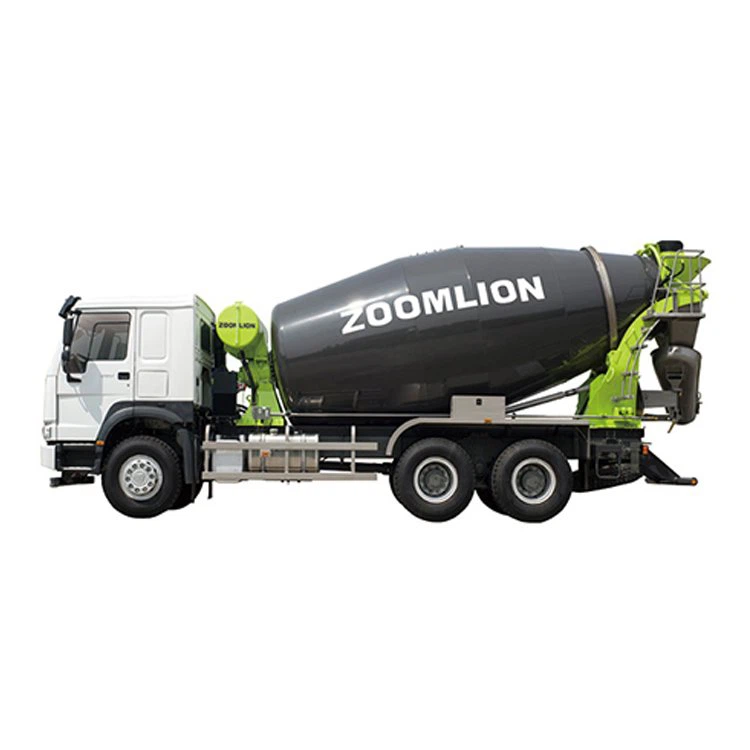

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of concrete mixer truck in China. Please feel free to buy cheap concrete mixer truck for sale here from our factory. Quality products and reasonable price are available.
Product Features
Concrete mixer truck logarithmic variable pitch spiral mixing blade: fast discharge speed, uniform mixing, elimination of concrete segregation, suitable for conveying dry and wet materials.
Concrete mixer truck new T-blade technology. It is made of wear-resistant alloy steel, thus protecting the agitator blades from wear, extending the life of the mixing drum and improving the mixing performance.
Concrete mixer truck large capacity mixing drum with low filling rate, thus ensuring more mixing space. Small inclination and low center of gravity help reduce the possibility of Mixer Trucks 6m³ rollover.
Closed loop hydraulic system and constant hydraulic oil temperature controller. The main hydraulic accessories include: hydraulic plunger pump, servo adjustment mechanism, hydraulic motor, planetary reducer. All accessories are manufactured by world-renowned brands with stable and reliable performance.
Pneumatic water supply system: The pressure is provided by the air tank on the chassis to provide the pressure protection device. Pressure is provided by an air tank with pressure protection on the chassis. Water inlet fittings are suitable for common water pipes and fire fittings.

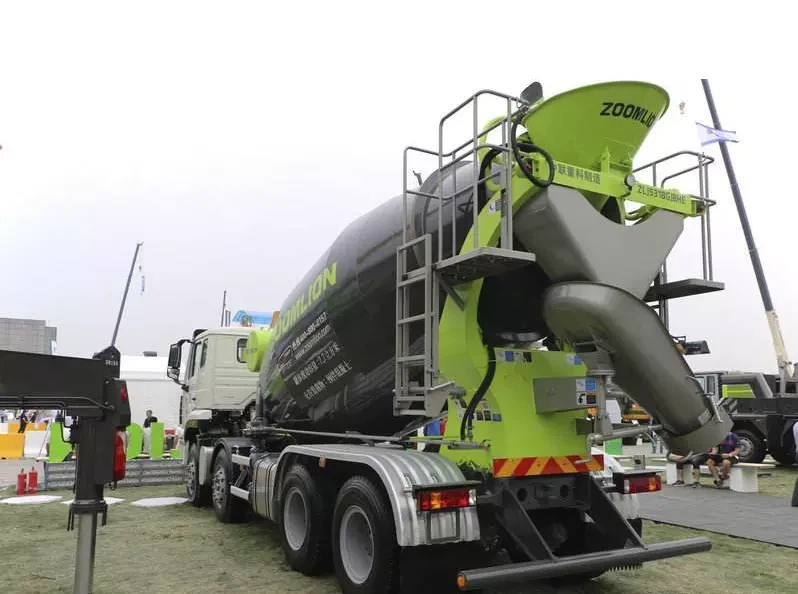

Multi-outlet flushing design, three fixed pipes flush the mixing drum, feed hopper and discharge hopper respectively, and there is also a flexible water outlet to meet the cleaning requirements of Mixer Trucks 6m³.
Three-point operating system: one controls the forward and reverse rotation of the mixing drum, and performs the functions of "feeding", "discharging", "stirring" and "stop". Two at the rear, one operating handle on each side, can be "charged", "accelerated", "discharged", "stirred" and "stopped", all three points are interlocked.
Model | ZOOMLION K6JB-R | ||
Structure Parameter | Upper Structure Mass | kg | 4150 |
Dimensions(L×W×H) | mm | 5905*2500*2725 | |
P.T.O Type | Engine P.T.O | ||
Water Supply Type | Air pressure type | ||
Volume of Water Tank | L | 600 | |
Air Tank Joint | M22*1.5 | ||
Drum Performance Parameter | Agitator Capacity | m³ | 6 |
Gradient of the Drum | ° | 14 | |
Max Speed of the Drum | rpm | 12-16 | |
Charge Speed | m³/min | ≥4 | |
Discharge Speed | m³/min | ≥3 | |
Remnant Ratio of Discharging | % | ≤0.7 | |
Range of Slump mm | 50-210 | ||
Hydraulic System | Pump | REXOTH Dextrorotatory A4VTG090 or others | |
Motor | REXOTH AA2FM80 or others | ||
Gear Box | ZF P4300 or others | ||
Hydraulic Circuit | Closed | ||
