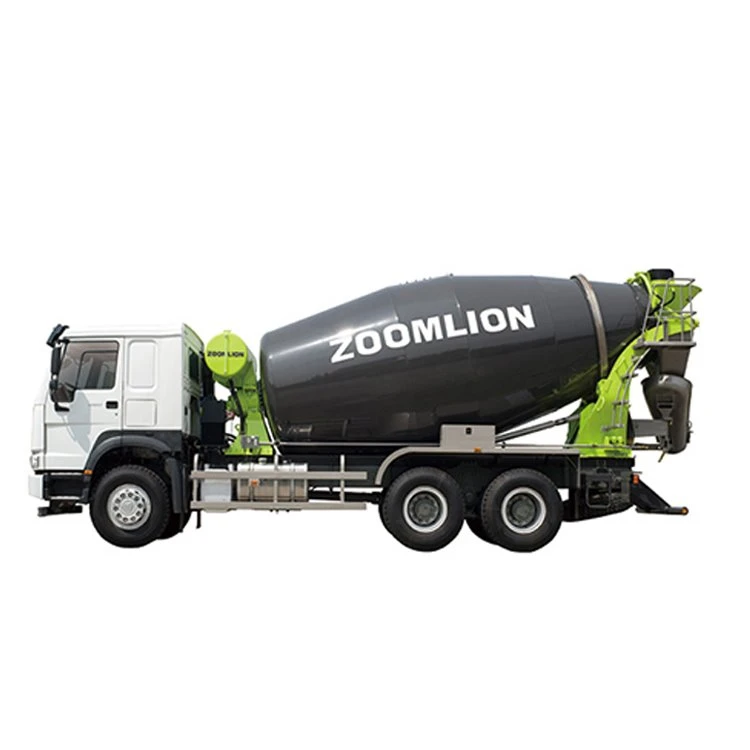

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 3m concrete mixer truck in China. Please feel free to buy cheap 3m concrete mixer truck for sale here from our factory. Quality products and reasonable price are available.
Product Features
3m Concrete Mixer Truck double logarithmic variable pitch spiral mixing blade: fast discharge speed, uniform mixing, elimination of concrete segregation, suitable for conveying dry and wet materials.
New T-blade technology. The blade is made of wear-resistant alloy steel, thus protecting the mixer blades from wear, extending the life of the mixing drum and improving the mixing performance of Mixer Trucks 8m³.
3m Concrete Mixer Truck large capacity mixing drum with low filling rate, thus ensuring more mixing space of Mixer Trucks 8m³. The small inclination and low center of gravity help reduce the likelihood of the truck tipping over.
3m Concrete Mixer Truck main hydraulic accessories include: hydraulic plunger pump, servo adjustment mechanism, hydraulic motor, planetary reducer, all of which are manufactured by world-renowned brands with stable and reliable performance.
Model | ZOOMLION K8JB-R | ||
Structure Parameter | Upper Structure Mass | kg | 4590 |
Dimensions(L×W×H) | mm | 6925*2490*2795 | |
P.T.O Type | Engine P.T.O | ||
Water Supply Type | Air pressure type | ||
Volume of Water Tank | L | 450 | |
Air Tank Joint | M22*1.5 | ||
Drum Performance Parameter | Agitator Capacity | m³ | 8 |
Gradient of the Drum | ° | 13 | |
Max Speed of the Drum | rpm | 12-16 | |
Charge Speed | m³/min | ≥4 | |
Discharge Speed | m³/min | ≥3 | |
Remnant Ratio of Discharging | % | ≤0.7 | |
Range of Slump mm | 50-210 | ||
Hydraulic System | Pump | REXOTH Dextrorotatory A4VTG090 or others | |
Motor | REXOTH AA2FM80 or others | ||
Gear Box | ZF P4300 or others | ||
Hydraulic Circuit | Closed | ||
