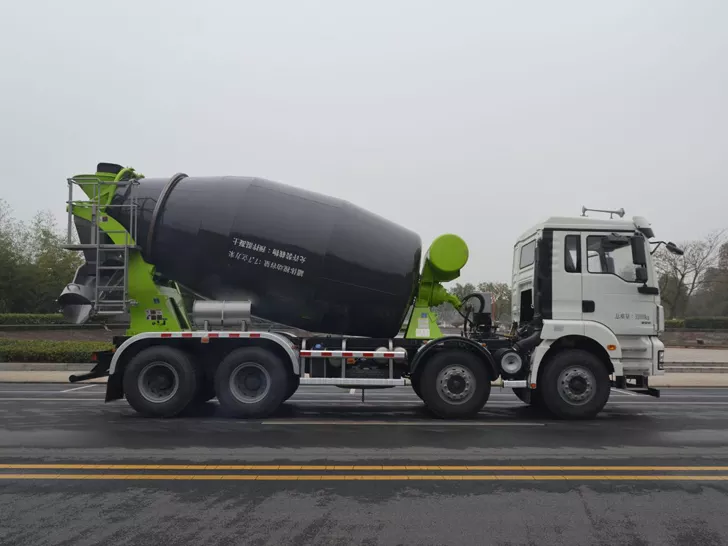

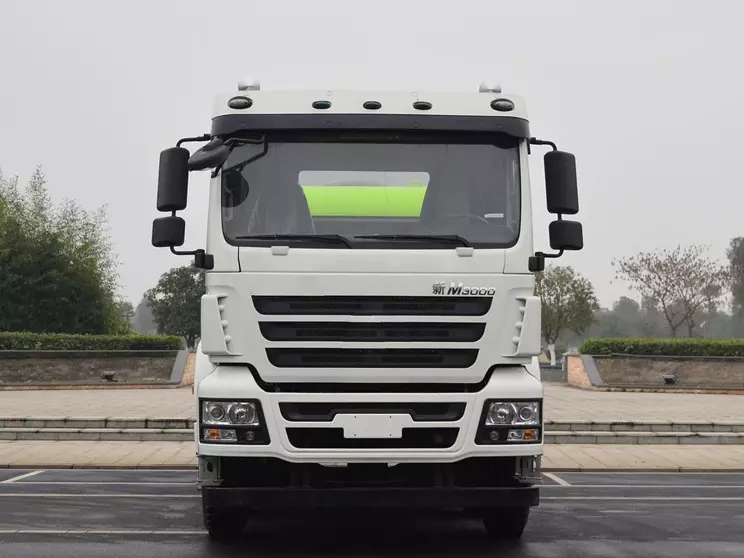

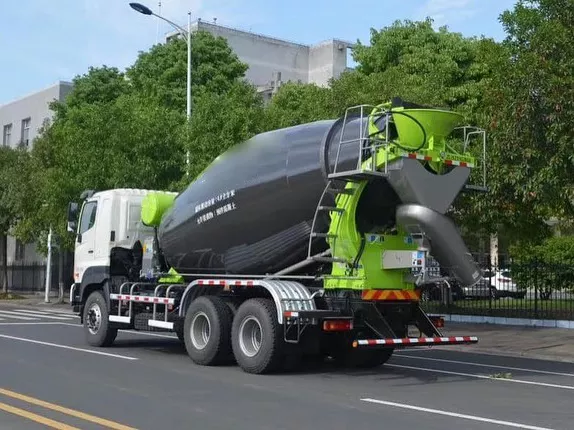

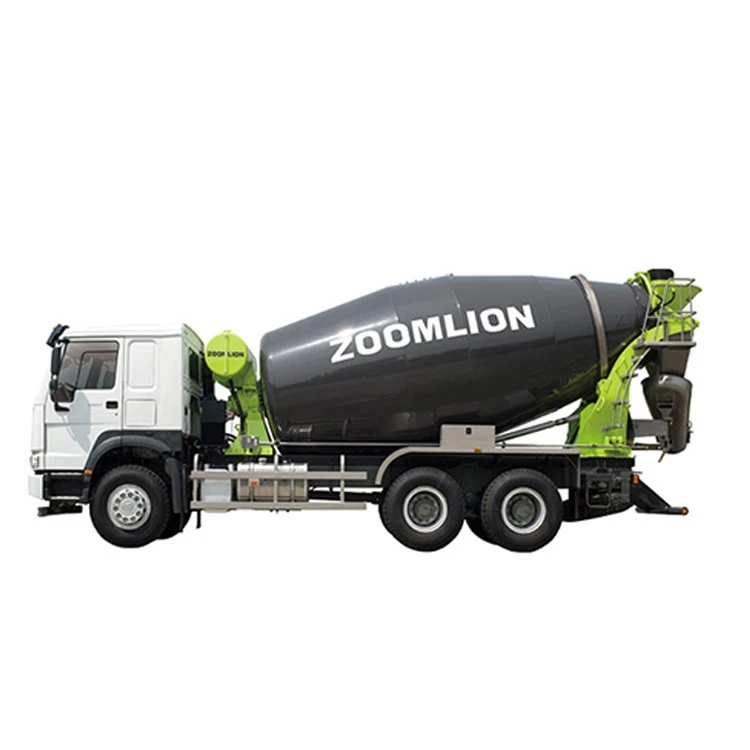

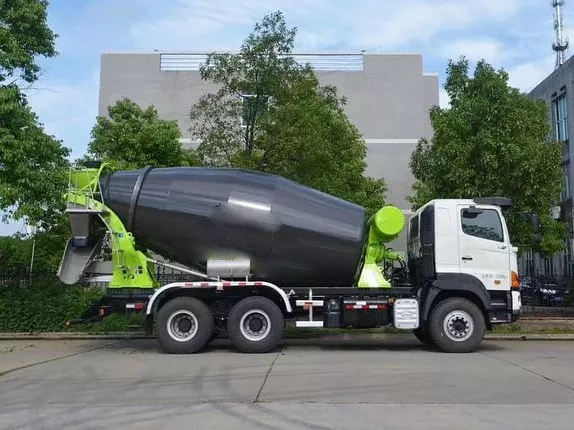

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 10 cbm concrete mixer truck in China. Please feel free to buy cheap 10 cbm concrete mixer truck for sale here from our factory. Quality products and reasonable price are available.
Product Features
10 cbm concrete mixer truck double logarithmic variable pitch spiral mixing blade: fast discharge speed, uniform mixing, elimination of concrete segregation, suitable for conveying dry and wet materials.
New T-blade technology. It is made of wear-resistant alloy steel, thus protecting the mixer blades from wear, extending the life of the mixing drum and improving the mixing performance of Mixer Trucks 10m³.
Large capacity mixing drum with low filling rate, thus ensuring more mixing space. The small inclination and low center of gravity help reduce the likelihood of a Mixer Trucks 10m³ truck tipping over.
10 cbm concrete mixer truck closed loop hydraulic system and constant hydraulic oil temperature controller. The main hydraulic accessories include: hydraulic plunger pump, servo adjustment mechanism, hydraulic motor, planetary reducer, all of which are manufactured by world-renowned brands with stable and reliable performance.
10 cbm concrete mixer truck pneumatic water supply system: The pressure is provided by the air tank on the chassis to provide the pressure protection device. Pressure is provided by an air tank with pressure protection on the chassis. Water inlet fittings are suitable for common water pipes and fire fittings.
Multi-outlet flushing design, three fixed pipes flush the mixing drum, feed hopper and discharge hopper respectively, and there is also a flexible water outlet to meet the 10m³ cleaning requirements of Mixer Trucks.
Three-point operating system: One in the cab can control the forward and reverse rotation of the mixing drum, and perform the functions of "feeding", "discharging", "stirring" and "stopping". Two at the rear, one handle on each side, can be used for "charging", "accelerating", "discharging", "stirring" and "stopping". These three points are interlocked.
Model | WP10.336 | ||
Engine Parameter | Type | Diesel,6-cyl. In-line, 4- stroke, water-cooled turbocharged intercooler cycle | |
Power Rating | kw/r/min | 247/2200 | |
Max. Torque | nm/r/min | 1250/1200-1600 | |
Emission Quantity | L | 9.726 | |
Oil consumed with Min. ratio | Lg/(kwh) | 195 | |
Emission Standard | Tier Ⅲ | ||
Drum Performance Parameter | Normal Volume | m³ | 10 |
Filling Ratio | % | 57.8 | |
Gradient of the Drum | ° | 12 | |
Filling Speed | m³/min | ≥4 | |
Discharge Speed | m³/min | ≥3 | |
Surplus Ratio | % | ≤0.7 | |
Range of Slump | mm | 50-210 | |
Hydraulic System | Pump | EATON 5433 or others | |
Motor | EATON 5433 or others | ||
Gear Box | ZF P4300 or others | ||
Hydraulic Circuit | Closed | ||
Water Supply | Volume of Water Tank | L | 400 |
Water Supply Type | Air Pressure Type | ||
