Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of biggest bulldozer in China. Please feel free to buy cheap biggest bulldozer for sale here from our factory. Quality products and reasonable price are available.

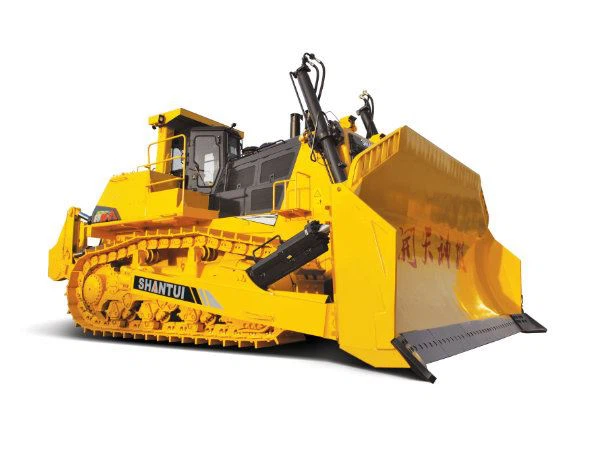

The biggest bulldozer SD90-C5 RS crawler bullets are the company's strategic product. Through the matching and optimization of power, transmission, hydraulic, electrical and other systems, the fuel consumption of the whole machine is low. The operation mode preset selection to meet different operating habits; the device matches the heavy chassis and uses a branched wheel elastic suspension technology, which can adapt to a worse operating environment, which can significantly increase productivity and reduce operating costs.

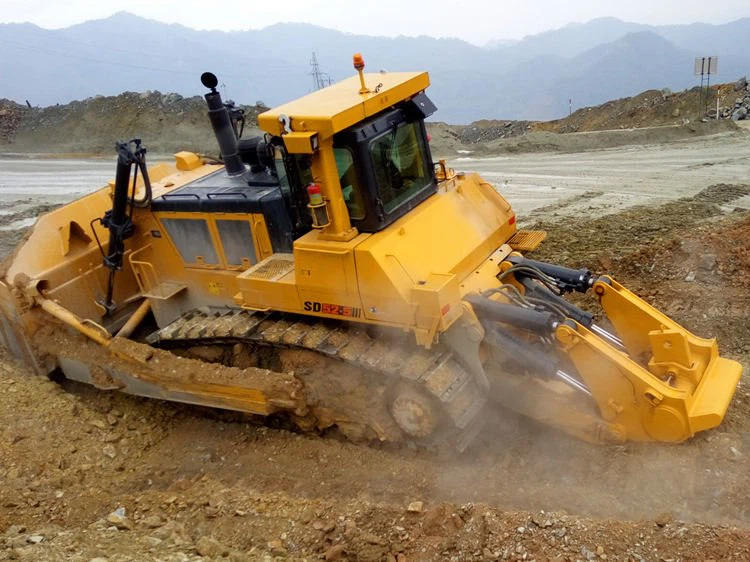

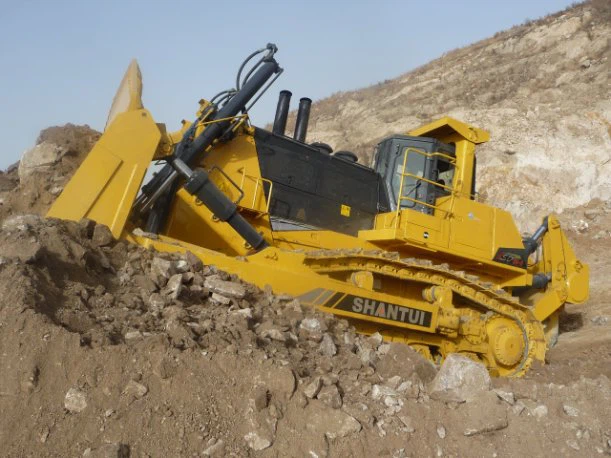

The biggest bulldozer SD90-C5 Macao bulldozer serves a large domestic coal mine. This bulldozer uses an electro -hydraulic control walking system, equipped with large -capacity bulldozer shovel, and heavy chassis, which can meet the various needs of large mines. In terms of rock rupture, the lobe -type pine vessels equipped by it can easily lifted the hard rocks and use the shovel to transfer it.
PARAMETER
Parameter name | SD90-C5 RS (Rock version) |
Performance parameters | |
Operating weight (Kg) | 106260 |
Ground pressure (kPa) | 143.7 |
Engine | |
Engine model | QST30 |
Rated power/rated speed (kW/rpm) | 708/2100 |
Overall dimensions | |
Overall dimensions of machine (mm) | 11500*5265*4590 |
Driving performance | |
Forward speed (km/h) | F1:0-3.5 F2:0-6.3 F3:0-10.9 |
Reversing speed (km/h) | F1:0-4.7 F2:0-8.4 F3:0-14.3 |
Chassis System | |
Center distance of track (mm) | 2770 |
Width of track shoes (mm) | 710 |
Ground length（mm） | 4520 |
Tank capacity | |
Fuel tank (L) | 1638 |
Working device | |
Blade type | Semi-U blade |
Digging depth (mm) | 1010 |
Ripper type | Single-shank |
Ripping depth (mm) | 1670 |
Ground length（mm） | 4520 |
Tank capacity | |
Fuel tank (L) | 1638 |
Working device | |
Blade type | Semi-U blade |
Digging depth (mm) | 1010 |
Ripper type | Single-shank |
Ripping depth (mm) | 1670 |
