Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of shantui small excavator se130p in China. Please feel free to buy cheap shantui small excavator se130p for sale here from our factory. Quality products and reasonable price are available.
| Parameter | Specification |
|---|---|
| Rated Power | 92 kW / 2200 rpm |
| Bucket Capacity | 0.55 m³ |
| Engine Model | WP4.1 |
| Engine Displacement | 4.088 L |
| Rated Flow Rate | 360 L/min |
| Swing Speed | 10 r/min |
| Ground Pressure | 37.5 kPa |
| Travel Speed | 3.5 / 5.6 km/h |
| Gradeability | 70% |
| Overall Length | 5965 mm |
| Overall Width | 2490 mm |
| Overall Height | 2610 mm |
| Minimum Ground Clearance | 380 mm |
| Track Width | 2490 mm |
| Track Gauge | 1990 mm |
| Track Center Distance | 2700 mm |
| Maximum Digging Height | 7790 mm |
| Maximum Dumping Height | 5300 mm |
| Maximum Digging Depth | 3755 mm |
| Maximum Digging Radius | 6980 mm |

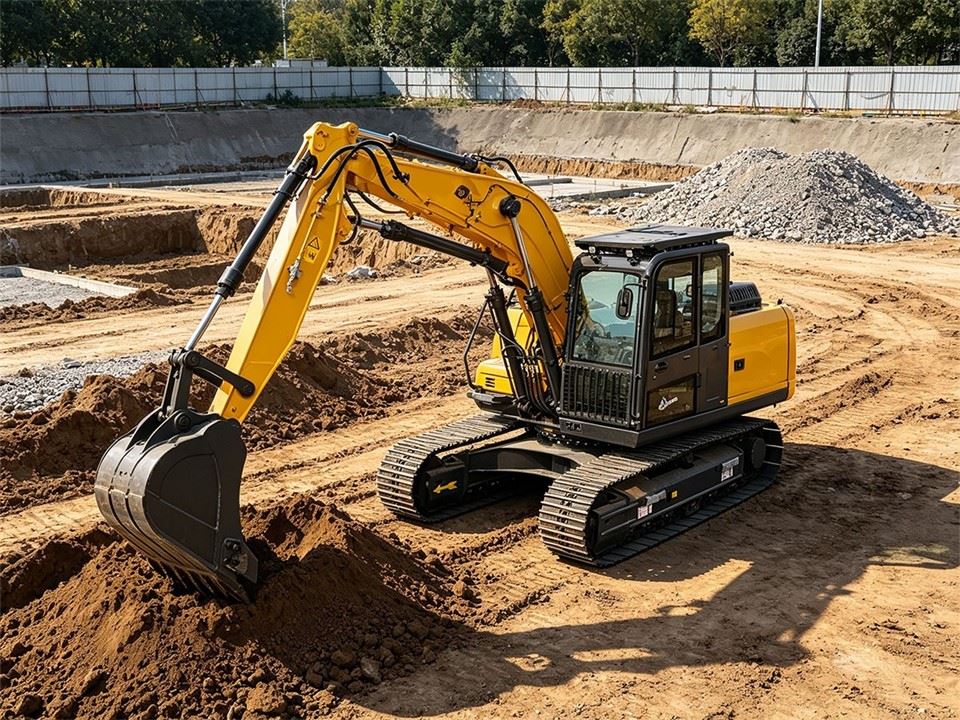

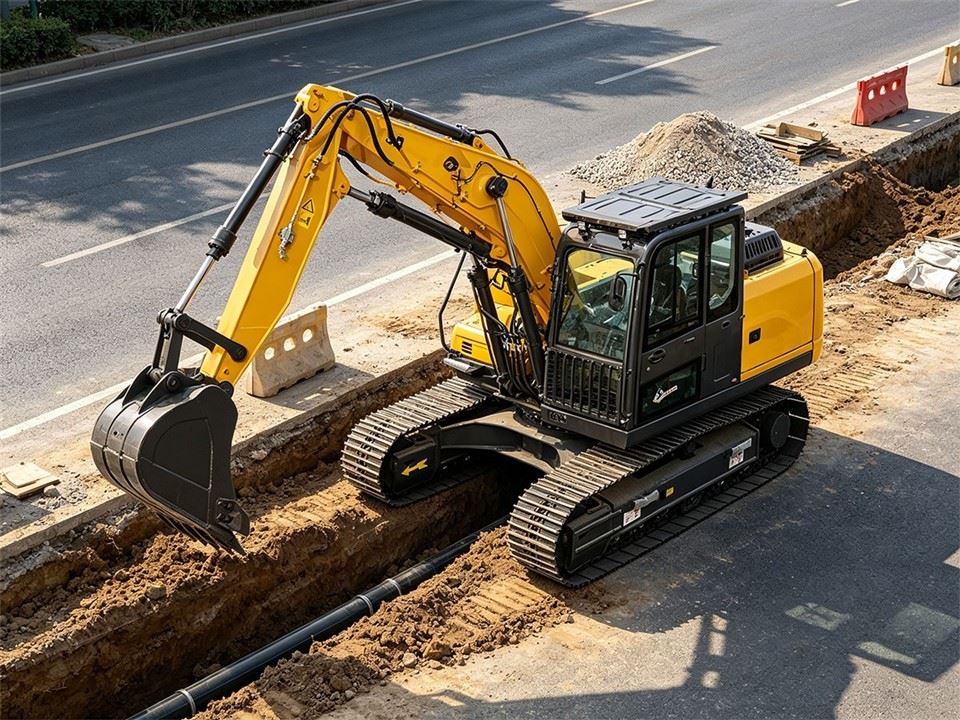

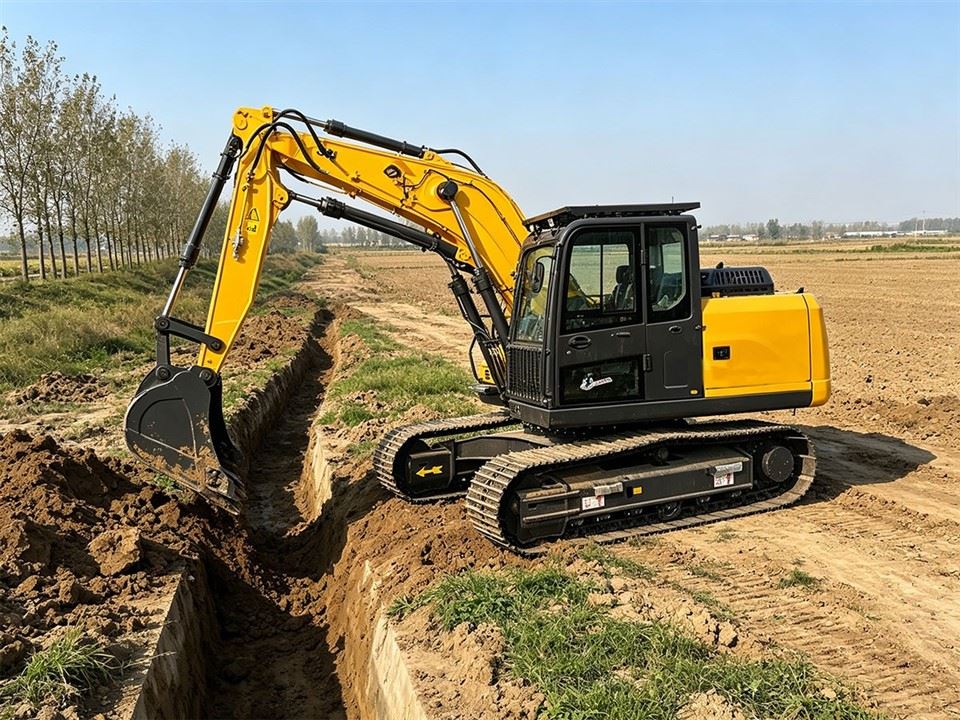

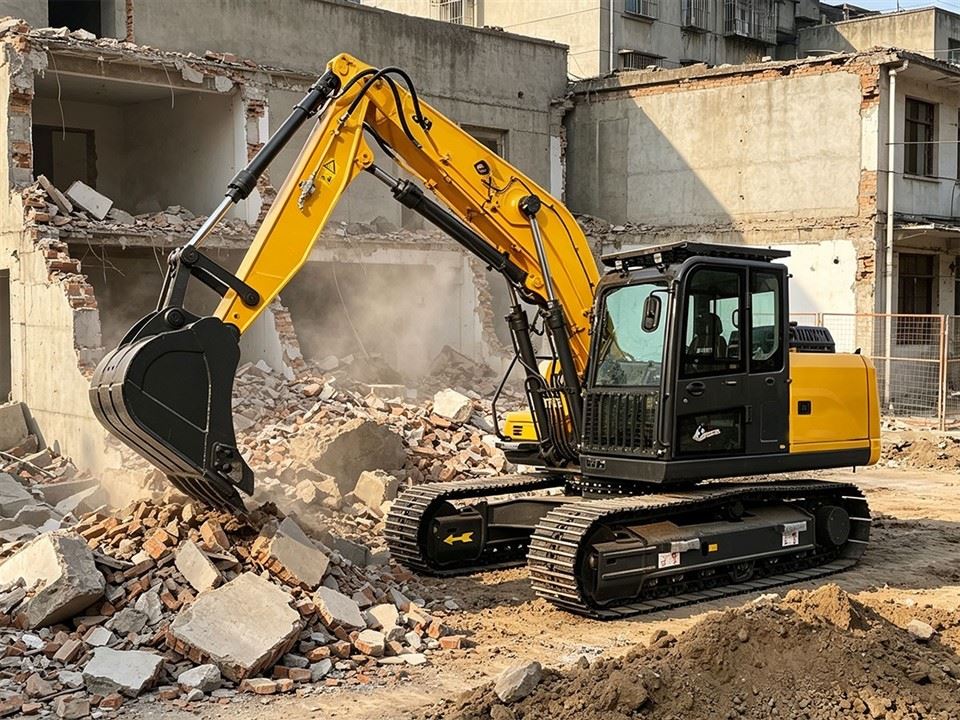

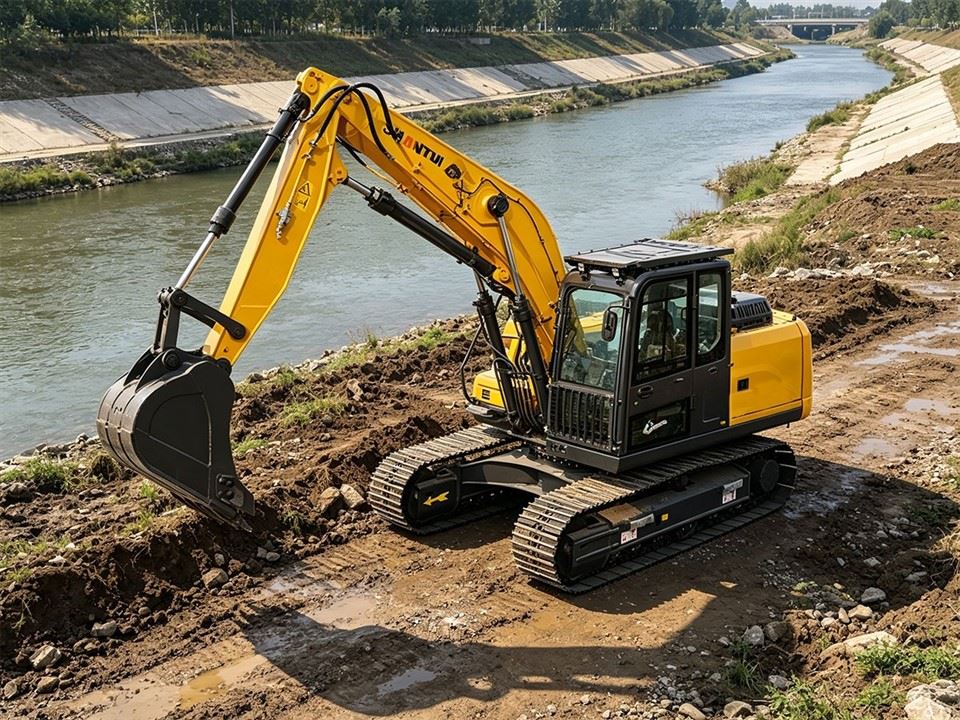

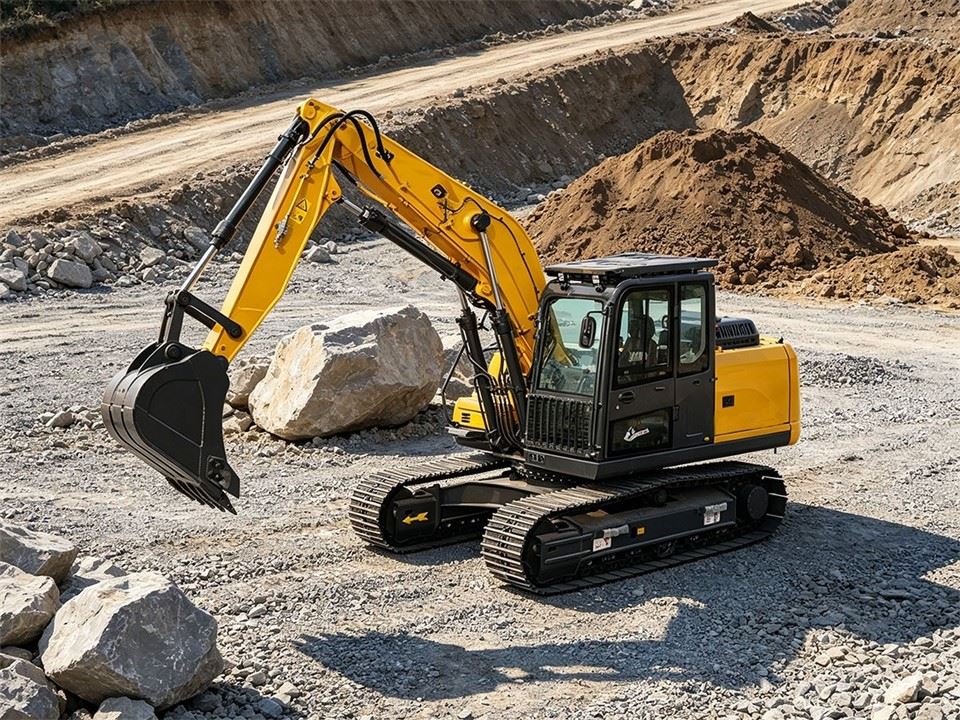

SE130P Compact Excavator
The SE130P is designed for practical applications such as road construction, agriculture, forestry, water conservancy, municipal landscaping, and rural construction projects, striking an optimal balance between power, control, structural strength, and operator comfort. It delivers stable, reliable performance for users engaged in prolonged excavation, trenching, earthmoving, and general site operations.
Prioritizing practicality, the SE130P features a reinforced work equipment assembly. The boom's front and rear supports utilize an integrated casting design, while the central support employs a forged structure; these features reduce structural stress and enhance overall durability. This reinforced assembly is ideally suited for continuous operation environments while also facilitating routine use and maintenance.
Powerful Performance and Fuel Efficiency
The SE130P is equipped with a Weichai WP4.1 engine, delivering a rated power of 92 kW at 2200 rpm and a displacement of 4.088 L. This engine offers high power and torque output; when paired with a large-displacement main pump and a large-bore main control valve, it ensures stable power response during excavation and loading operations.
According to product specifications, the overall combined fuel consumption ranges from approximately 6.5 to 8 L, balancing operational efficiency with operating costs. Additionally, the machine utilizes Weichai's proprietary after-treatment technology, which eliminates the need for an 8-hour regeneration process and features extended regeneration intervals, thereby helping to reduce downtime and fuel consumption.
Reinforced Work Equipment and Reliable Structure
The work equipment is a critical component that endures sustained loads during excavator operation. The SE130P features a reinforced design for the boom and its supporting structures; the front and rear boom supports utilize an integrated casting design, while the center support employs a forged structure. These features help reduce structural stress during operation and extend the machine's service life.
Furthermore, the machine boasts a maximum digging height of 7,790 mm, a maximum dumping height of 5,300 mm, a maximum digging depth of 3,755 mm, and a maximum digging radius of 6,980 mm, making it capable of handling road construction, earthworks, trenching, and a wide range of other engineering projects.
Comfortable and Reliable Cab
The cab features a reinforced, fully sealed, one-piece stamped structure with a special-profile tube frame that meets ROPS/FOPS safety standards, providing a highly reliable operating environment for the driver.
It comes standard with an air-suspension seat and utilizes silicone-oil-filled shock absorbers; the increased rigidity of the cab floor minimizes machine oscillation during operation, thereby reducing operator fatigue during long shifts.
Additionally, the cab is equipped with a high-capacity heating and cooling system featuring optimized internal airflow ducts for increased airflow velocity, ensuring a comfortable operating environment for outdoor work across all seasons.
Stable Travel and Operational Performance
The SE130P features a crawler undercarriage with a ground pressure of 37.5 kPa, travel speeds of 3.5/5.6 km/h, and a gradeability of 70%. This crawler undercarriage ensures stability during travel and operation across diverse job sites, making it suitable for roadwork, agricultural projects, rural construction, and complex environments.
For users interested in walking excavators, the SE130P's crawler design offers excellent stability and superior terrain adaptability, making it ideal for project sites that require continuous movement and operations across multiple locations.
Versatile Engineering Applications
The SE130P is suitable for a wide range of industries and job sites, including quarrying and concrete operations, municipal landscaping, road construction, farmland and fishpond development, port and terminal operations, airport construction, agricultural water conservancy, rural development, and bridge construction.
With its extensive operating range, stable crawler undercarriage, and reliable power system, the SE130P meets diverse construction needs-from basic earthworks to the development of infrastructure such as roads and bridges.
Why choose the SE130P?
The SE130P prioritizes not only excavation performance but also long-term reliability, operator comfort, and ease of maintenance. Its reinforced work equipment is designed to withstand continuous operation, the Weichai power system balances power output with fuel efficiency, and the reinforced cab provides a stable, comfortable working environment for the operator.
For users engaged in diverse applications-such as road construction, agriculture, forestry, water conservancy, bridge building, and rural infrastructure projects-the SE130P stands out as a piece of construction equipment that emphasizes practicality and comprehensive operational capability.
