Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 49 m truck mounted pumps in China. Please feel free to buy cheap 49 m truck mounted pumps for sale here from our factory. Quality products and reasonable price are available.
Product Features

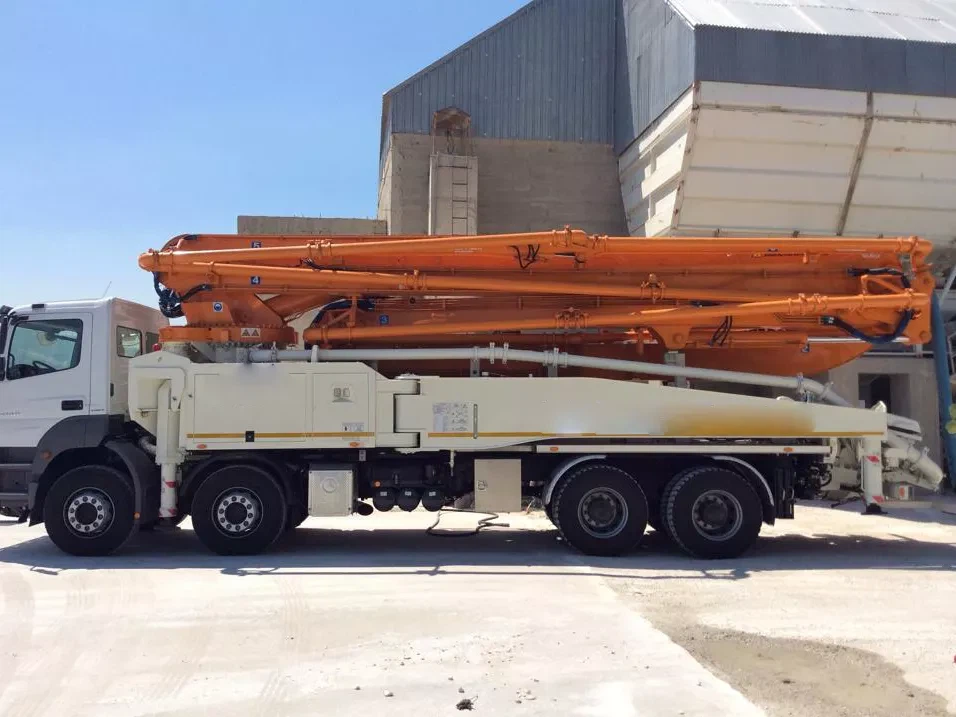

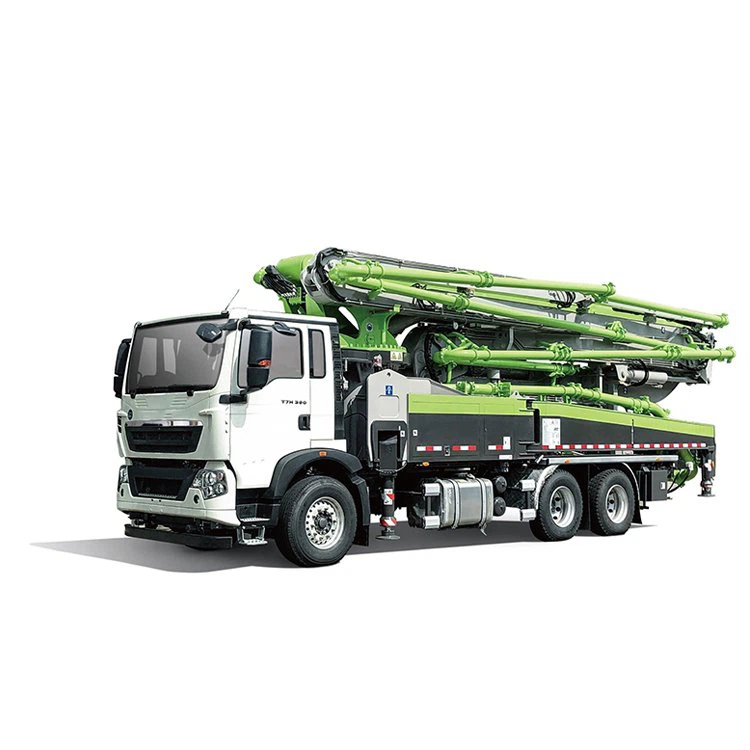

The 49 m Truck Mounted Pumps 49X-6RZ-3 is a 49m truck pump capable of pumping large volumes of concrete. The maximum pumping volume is 180m³/h, and the construction efficiency is high. The 49 m Truck Mounted Pumps 49X-6RZ-3 truck pump can be mounted on a 3-axle or 4-axle chassis.
The 49 m Truck Mounted Pumps 49X-6RZ-3 has 6 booms and is highly flexible in placement. The placement height is 13m higher than the 5RZ, and the placement range is 50% larger than the 5RZ.
Boom Active Vibration Reduction Technology (ABC): Boom all-position active vibration reduction technology, the vibration amplitude is within 0.4m. The boom is more stable and safer.
Boom intelligent damping technology. Reduce the impact and vibration of the boom, making the operation more stable, reliable and safe.
Accurate Pumping Control Technology (APC): A leap forward in pumping accuracy and adaptability, improving pumping efficiency.
Self-adaptive concrete pumping technology: specially designed for low-quality concrete that is easy to segregate and has high viscosity, self-adaptive pumping mode reduces the blockage rate by more than 50%.
Comprehensive self-diagnosis before, after and during pumping to ensure work safety.
Single side support function: 2 modes, left/right side support and front side support, can save about 30% space. The site is adaptable.
Model | Unit | 49 m Truck Mounted Pumps 49X-6RZ-3 | |
Pump Unit | Maximum theorical output | m³/h | 180/120 |
Maximum pressure on concrete | bar | 83/120 | |
Conc. cylinders (diam. x stroke) | mm | 260*2100 | |
Hydraulic circuit | Open | ||
Boom Section | Maximum vertical reach | m | 48.6 |
Maximum horizontal distance | m | 43.6 | |
Minimum unfolding height | m | 12.9 | |
Section numbers | 6 | ||
Boom type | RZ | ||
Pipeline diameter | mm | 125 | |
