Product Features

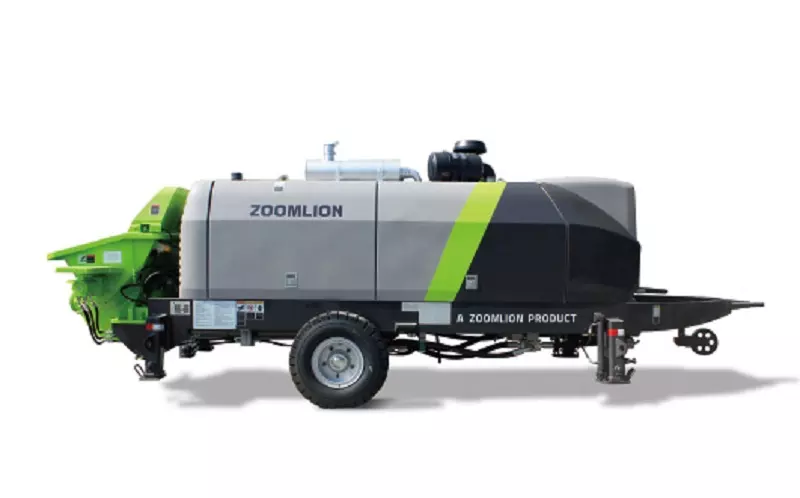

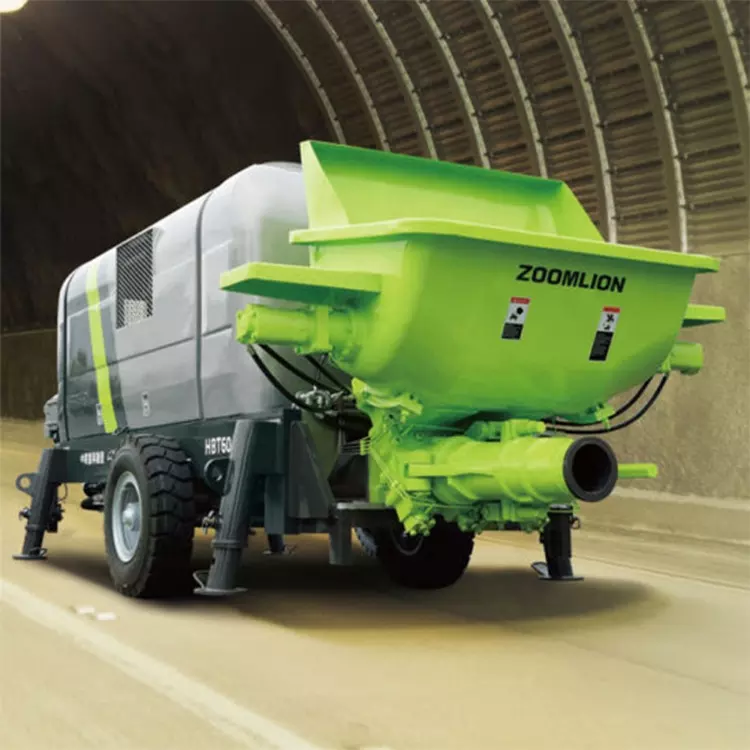

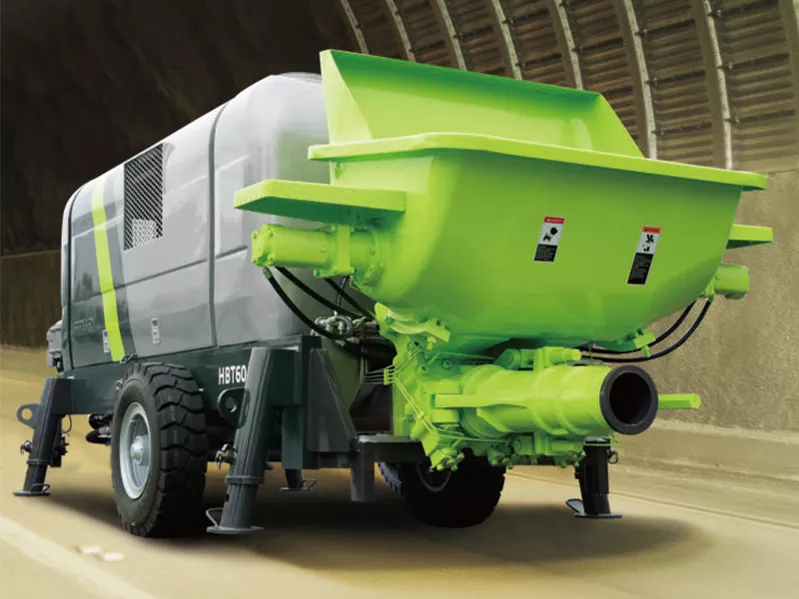

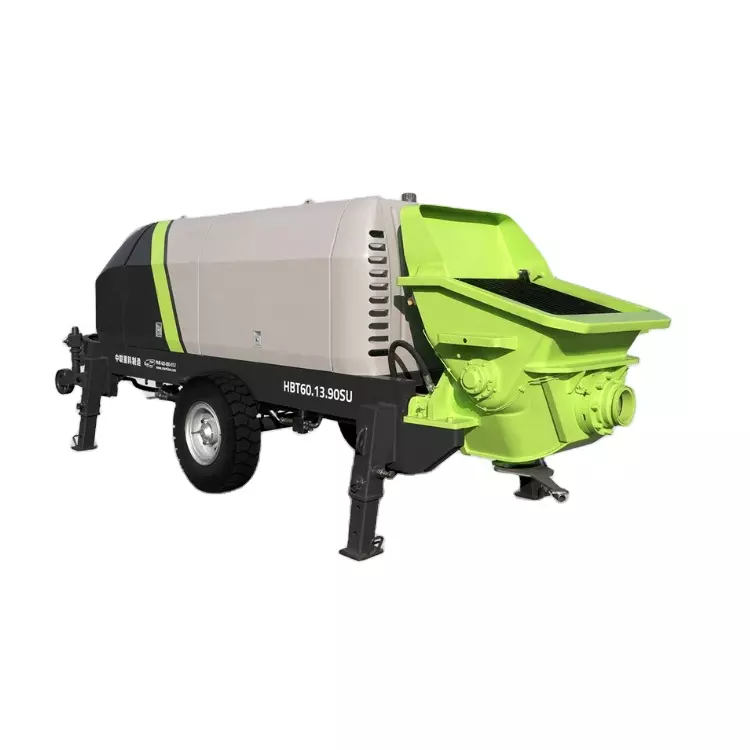

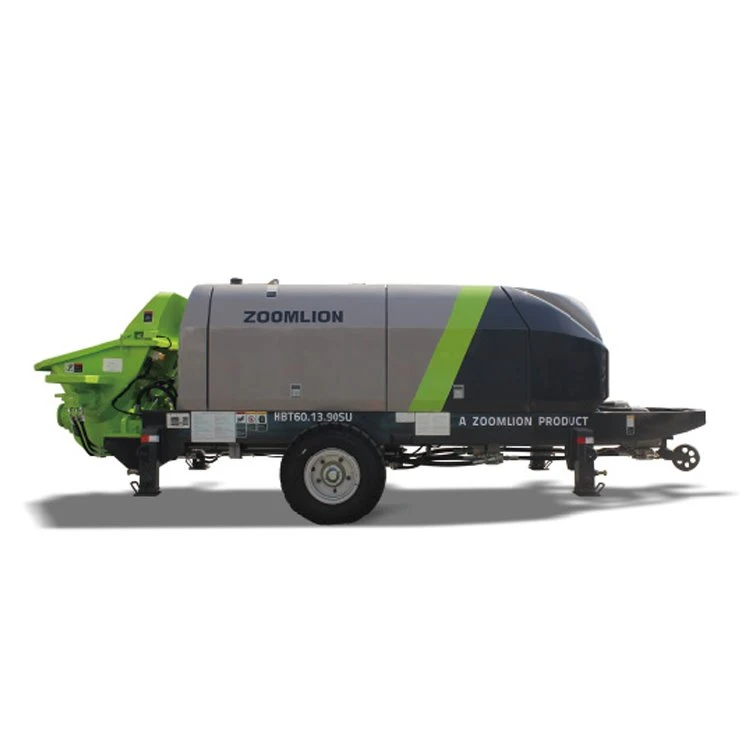

City concrete pump HBT60.13.90SU is one of ZOOMLION 4.0 products. The power system, hydraulic system and pumping system are reasonably matched to effectively exert the maximum power of the motor. city concrete pump HBT60.13.90SU's unique dual-pump dual-circuit open hydraulic system cooperates with each other and has a longer service life. High material absorption, the actual pumping efficiency reaches more than 80% of the theoretical value. The unique distribution oil circuit buffer technology ensures that the S tube swings in place and prolongs the service life of the S tube. city concrete pump HBT60.13.90SU has a quick-change piston device with independent intellectual property rights, and the piston is replaced quickly and easily. A comprehensive anti-emulsification technology combining active defense and passive defense is adopted to achieve zero emulsification of hydraulic system oil. It is the first to adopt an industrial controller with self-diagnosis and protection functions, and its reliability has been greatly improved compared with ordinary PLC control. Intelligent control technology, equipped with touch display screen, and the application of soft start device on high-power motor to ensure that the power grid is not impacted.
High-efficiency motor, energy saving and environmental protection
Equipped with high-efficiency motor, low noise, high efficiency, energy saving and environmental protection.
Stable pumping, safe and reliable
The non-contact reversing technology of the proximity switch in the oil cylinder or the water tank, combined with the redundant control strategy of the reversing system, ensures the safe, stable and continuous operation of the pumping system;
Implement self-adaptive pumping control technology, switch the pumping mode adaptively under different material conditions, reduce the blockage rate by 70%, and reduce the probability of pipe burst;
The electric high and low pressure switching technology is convenient and quick to operate; the rear-mounted quick-change piston technology effectively shortens the replacement time of the piston, and is safe and reliable.
Economical and durable, save money and worry
The cost-effectiveness of wearing parts is the first in the industry, including: S tube ≥ 60,000 cubic meters, concrete cylinder ≥ 100,000 cubic meters, glasses plate ≥ 50,000 cubic meters, the three wearing parts far exceed competitors;
The motor startup adopts the "Y-A" conversion method to avoid the fluctuation of the power grid and the shortening of the motor life caused by direct startup.
Real-time monitoring, intelligent diagnosis
The use of industrial controllers with diagnostic and protection functions makes the whole machine more stable and reliable. Equipped with a touch screen, it can monitor operating conditions in real time, set parameters, query historical data, and view fault records.
Model | city concrete pump HBT60.13.90SU | |
Drive Power | KW | 90 |
Max.Theoretical Output | m³/h | 67/141 |
Max.Theoretical Concrete Output Pressure | bar | 70/130 |
Concrete Cylinder (diameter×stroke) | mm | 200*1800 |
Strokes | Min-1 | 19.2/12 |
Hopper Capacity | L | 600 |
Filling Height | mm | 1450 |
