Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 2.5 ton digger in China. Please feel free to buy cheap 2.5 ton digger for sale here from our factory. Quality products and reasonable price are available.

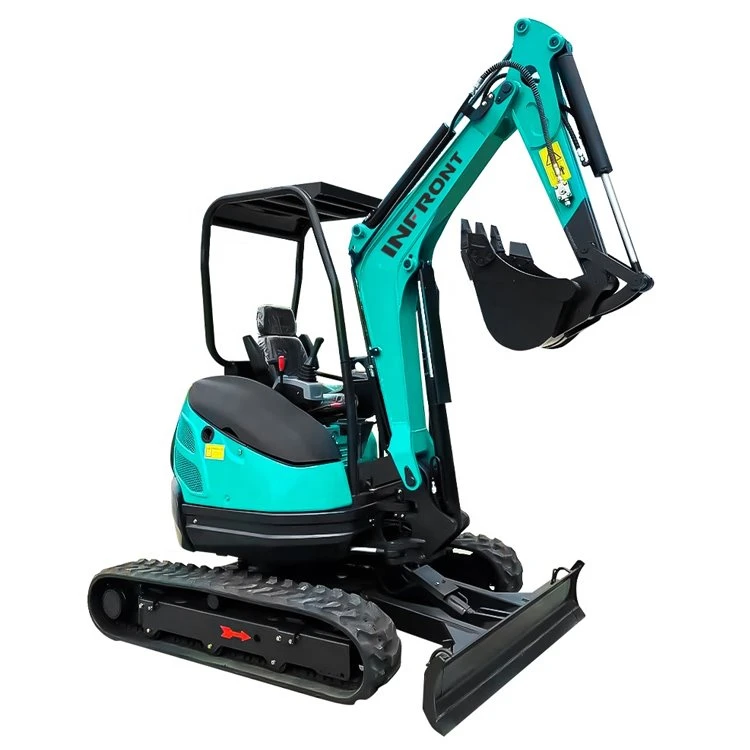

2.5 ton digger ,Tailless Kubota Euro V engine, telescopic side swing, high and low speed plunger pump, adopts international famous brand engine, conforms to Euro III emission standard, EPA certification, 2.5 ton digger,large torque, strong power, energy saving and fuel saving. The load-sensing system realizes the perfect match between the engine and the main pump, accurately provides the flow, and improves the operation 2.5 ton digger
SPECIFICATION: | |
Model | YFE25Z |
Operating Weight | 2200kg |
Digging bucket capacity | 0.08cbm |
Engine Model | Yanmar /Changchai |
Rated power | 20kw/2200rpm |
OVERALL DIMENSIONS | |
Total Length | 4082mm |
Total Width | 1200mm |
Total Height | 2128mm |
Ground Clearance | 458mm |
Ground Pressure | 38kpa |
PERFORMANCE | |
Max. Digging depth | 2150mm |
Max. Digging height | 3714mm |
Max. Dumping height | 2488mm |
Min. Rotation radius | 4023mm |
Slewing Angle | 360 |
Grade ability | 25 |
Travel speed | 2.2Km/h |
Bucket Width | 490mm |
Swing angle of boom L/R | 70/50 |
TRACK | |
Track Gauge | 950mm |
Track Width | 230mm |
Track Length(on ground) | 1900mm |
HYDRAULIC SYSTEM | |
Main Pump | Triple Pump |
Main Pressure | 18 |
Max.Rpm of the pump | 2500r/min |
Pump Displacement | 25ml/r |
