Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of earthmoving 37 ton in China. Please feel free to buy cheap earthmoving 37 ton for sale here from our factory. Quality products and reasonable price are available.
Technical Features
Reinforced working device
The structure of key parts is fully optimized, and the force-bearing position is strengthened to avoid harsh working conditions.
Bucket bottom plate, side plate and reinforcement plate are all made of high-strength wear-resistant materials to improve the durability of the bucket.
The multi-specification boom, stick and bucket can be easily combined, making the earthmoving 37 Ton SE370LC-9 suitable for various working conditions.
High-end system configuration
International leading high adaptability turbo engine.
World-class hydraulic configuration, high working pressure and small pressure loss.
Spacious and comfortable operating environment
Fully injection-molded interior, the interior color is effectively matched according to ergonomics, and it is not easy to cause the operator's visual fatigue.
Large space, wide field of vision, reasonable arrangement of control devices, convenient and comfortable operation.
earthmoving 37 Ton SE370LC-9 adopts high-power air conditioner, adjustable wrist rest and suspension seat to help you work comfortably throughout the day.
Four wheels and one track
30 years of experience in R&D and manufacturing of four wheels and one track, industry-leading technology, the first choice for excavators.
Mature and high-quality forging heat treatment process, stable and reliable quality.
More efficient control
The intelligent control system realizes a high degree of matching between the power system and the hydraulic system, which improves the working efficiency and reduces the fuel consumption.
A new generation of man-machine-friendly intelligent electronic control system allows earthmoving 37 Ton SE370LC-9 to control the working status.
Through the cloud platform, you can view the vehicle's location, running track, working status and other related information at any time.

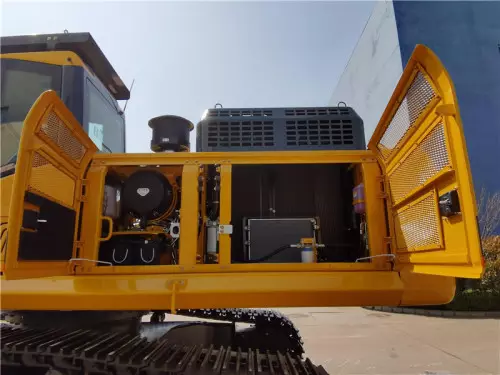

Quick and easy maintenance
The rear-opening hood is easy to open and has a large angle, which is convenient for maintenance.
Electrical components are centrally arranged for easy inspection and maintenance.
Coolant filling, air filter replacement, and the main power switch are all within easy reach.
The high-precision fuel filter is centrally arranged at the left door for easy maintenance.
The oil filter is far away from the right door for easy maintenance.
Machine optional configuration
Fuel filling pump
Cab warning light
Cab dome light
Cab roof protection net
Protective net on the front of the cab
Front and lower protective net of cab
rubber track
Narrow bucket
Optional accessories
Breakers, rippers, wood grabs, stone grabs, hydraulic rammers, quick-change devices, breaker pipes.
Comparison item | earthmoving 37 Ton SE370LC-9(standard version ) | earthmoving 37 Ton SE370LC-9W(WEICHAI engine version ) |
Dimensions | ||
Overall length (mm) | 11265 | 11265 |
Grounding length (when shipping)(mm) | 6890 | 6890 |
Overall height(to top of boom) | 3785 | 3785 |
Overall width(mm) | 3200 | 3200 |
Overall height (to the top of the cab )(mm) | 3290 | 3290 |
Counterweight ground clearance (mm) | 1340 | 1340 |
Min. Ground clearance (mm) | 565 | 565 |
Tail turning radius (mm) | 3520 | 3520 |
Track length (mm) | 5045 | 5045 |
Gauge (mm) | 2600 | 2600 |
Track width (mm) | 3200 | 3200 |
Standard track shoe width (mm) | 600 | 600 |
Rotary platform width (mm) | 3190 | 3190 |
Distance from center of rotation to rear end (mm) | 3465 | 3465 |
The scope of work | ||
Max. Excavation height (mm) | 10100 | 10100 |
Max. Unloading height (mm) | 6970 | 6970 |
Max. Excavator depth (mm) | 6995 | 6995 |
Max. Vertical excavation depth (mm) | 5460 | 5460 |
Max. Excavation distance (mm) | 10840 | 10840 |
Max. Excavation distance at ground level (mm) | 10630 | 10630 |
Min. Turning radius of working device (mm) | 4430 | 4430 |
Engine | ||
Model | QSL9 | WP9H |
Form | High pressure common rail water cooling inline 6 cylinder turbocharged | High pressure common rail water cooling inline 6 cylinder turbocharged |
Displacement (L) | 8.9 | 8.9 |
Rated power (kw/rpm) | 214/2100 | 220/2000 |
Hydraulic system | ||
Hydraulic pump form | double axial variable displacement piston pump | Double axial variable displacement piston pump |
Rated working flow (L/min) | 2*300 | 2*300 |
Bucket | ||
Bucket capacity (m³) | 0.45-2.2(1.8) | 0.45-2.2(1.8) |
Slewing system | ||
Max. Rotation speed (r/min) | 10.2 | 10.2 |
Brake type | pressure release mechanical brake | pressure release mechanical brake |
Digging force | ||
Stick digging force (kN) | 174 | 174 |
Bucket digging force (kn) | 254 | 254 |
Operating quality and ground pressure | ||
Operating weight (kg) | 36800 | 36800 |
Ground specific pressure (kpa) | 68.3 | 68.3 |
Walking system | ||
Travel motor | Axial variable piston motor | Axial variable piston motor |
Walking speed (km/h) | 3.0/4.9 | 3.0/4.9 |
Traction (kn) | 315 | 315 |
Gradeability | 70%(35°) | 70%(35°) |
Fuel tank capacity | ||
Fuel tank capacity (L) | 620 | 620 |
Cooling system (L) | 35 | 35 |
Engine oil quantity (L) | 28 | 30 |
Hydraulic tank/system capacity (L) | 300/420 | 300/420 |
