Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of electric reach truck in China. Please feel free to buy cheap electric reach truck for sale here from our factory. Quality products and reasonable price are available.

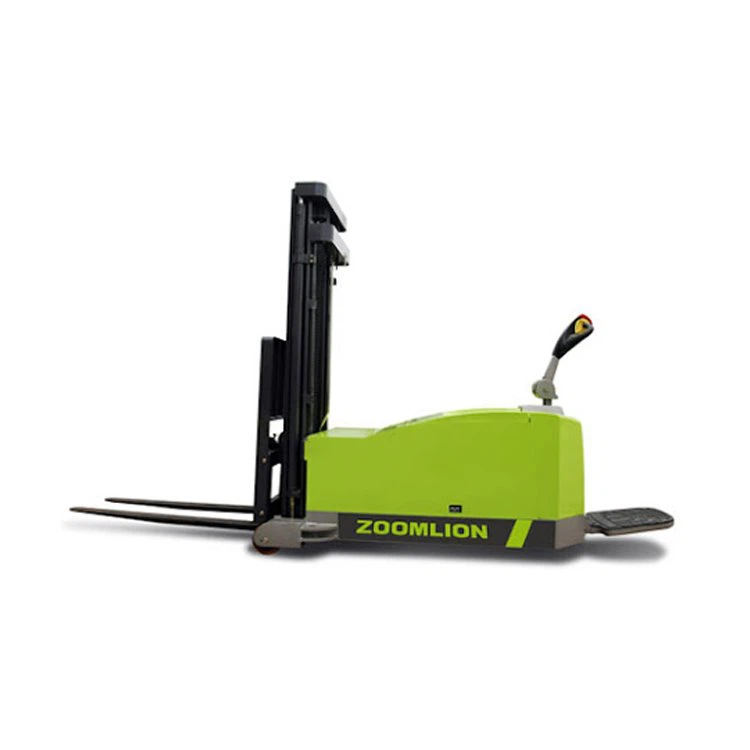

TB15-WA1 Zoomlion TB15-WA1 Electric Storage Forklift 1.5 tons
Features
Electric reach truck Safe & Efficient
The stepless speed regulation system is adopted, and the speed changes smoothly; the no-load and heavy-load speeds can be kept the same; the floating balance wheel mechanism can effectively prevent the sideways shaking of the car when the car is running empty; the energy consumption braking improves the braking reliability , improve the working life of the brake.
Electric reach truck Excellent performance
Good climbing performance; using permanent magnet brushless motor, high electrical efficiency, maintenance-free (no carbon brush); using the upper horizontal drive wheel structure, it is very convenient to replace the wheel and motor; there is a maximum speed limit button, which can reduce the speed of the car Swivel space, suitable for operation in small spaces.
Electric reach truck Comfortable & practical
The vehicle has a beautiful appearance and beautiful curves. It adopts fully sealed and maintenance-free large-capacity battery; the maintenance of the whole vehicle is convenient, which changes the disadvantages of troublesome maintenance of similar vehicles; the use of on-board charger can make the car charge in any place with a socket.
Features TB15-WA1 | Electric drive |
driving style | walk |
Rated load Q | 1500(kg) |
Load center distance c | 600(mm) |
Front overhang x | 847/917(mm) |
Wheelbase Y | 1152/1222(mm) |
Weight Self-weight (with battery) | 230kg |
Axle load, front/rear axle at full load | 1889/84 kg |
Axle load, front/rear axle without load | 194/36kg |
Wheel size, front wheel | -Φ195 Wheel size |
Rear wheel | Φ80/Φ74 |
Front wheel base | b10(mm) |
Rear wheel base) | b11(mm |
Size | 360/390/525 |
Lifting height h3 | 105mm |
Traveling speed, full load / no load | 5.3/5.8Km/h |
Lifting speed, full load / no load | 0.035/0.045m/s |
Falling speed, full load / no load | 0.080/0.037m/s |
Maximum gradeability, full load/no load | 5/15% |
Drive motor power | 0.9kW |
Lift motor power | 0.8kW |
