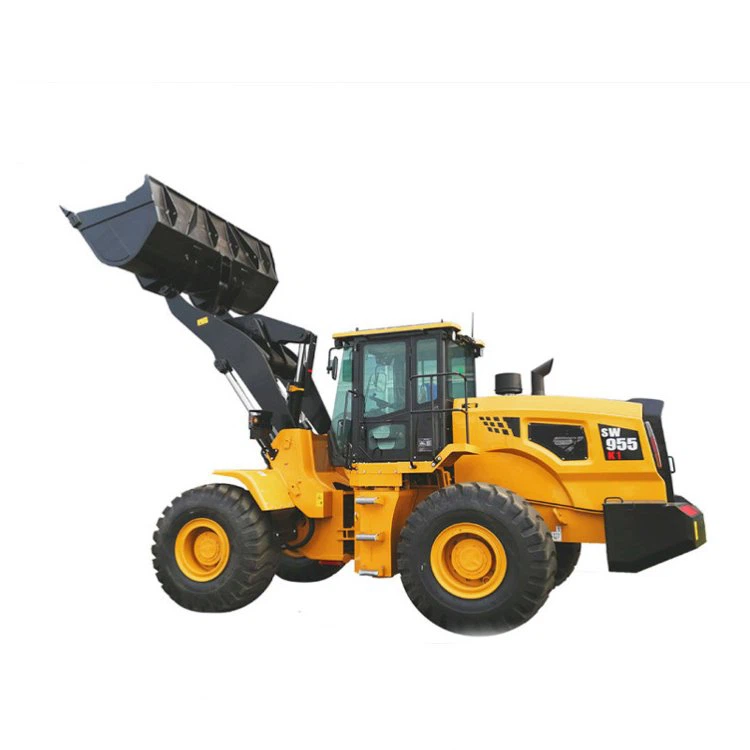

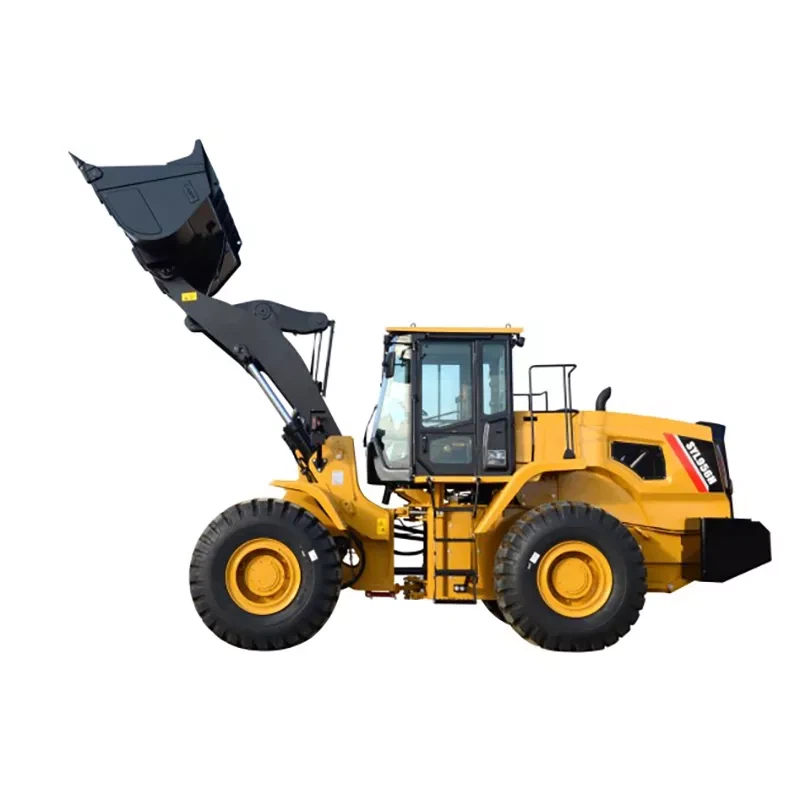

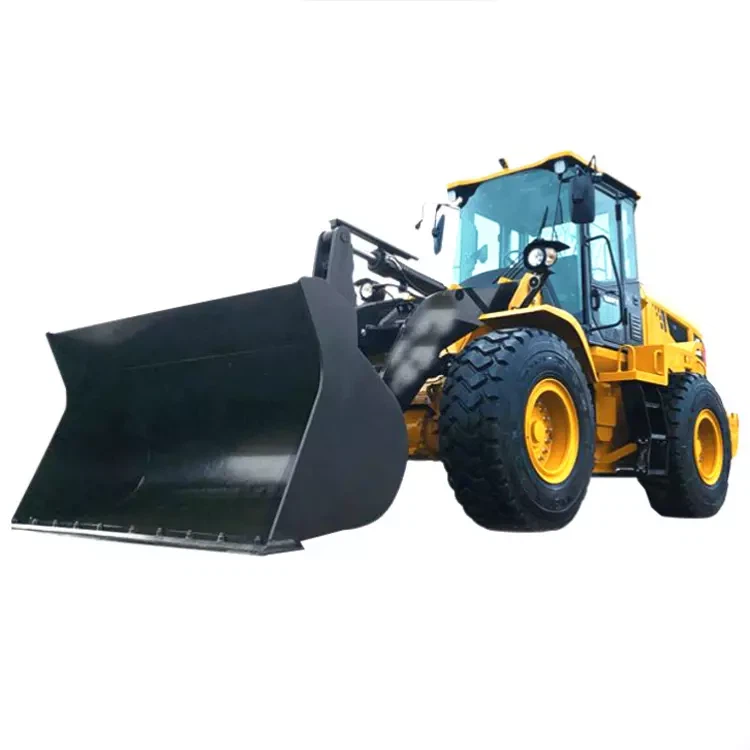

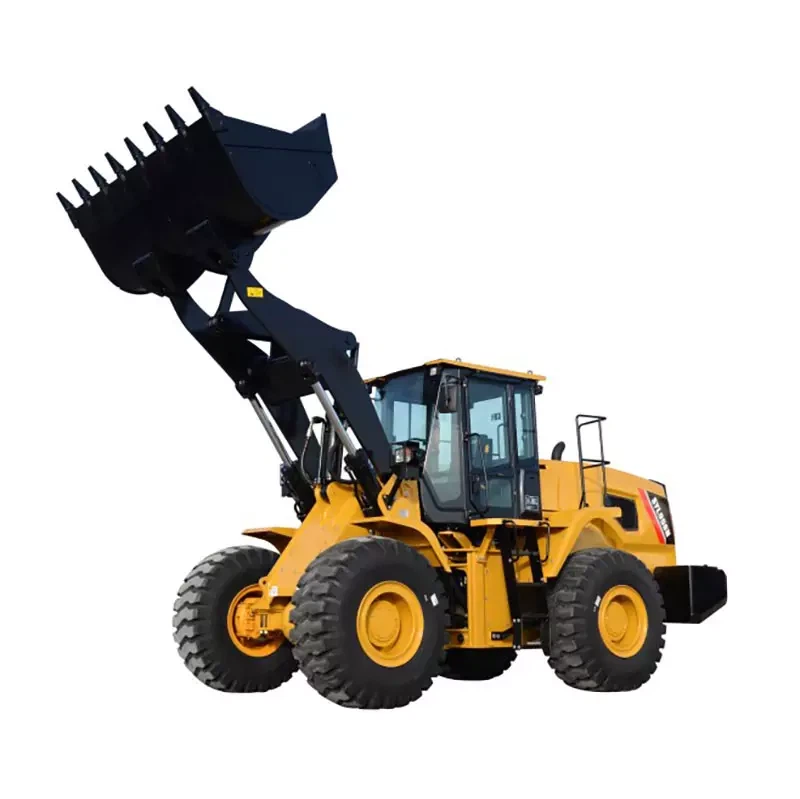

Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of biggest wheel loader in China. Please feel free to buy cheap biggest wheel loader for sale here from our factory. Quality products and reasonable price are available.
Product Features
Weichai Engine
It is a high-horsepower, large-displacement, and efficient electronically controlled high-pressure common rail engine tailored for SANY.
60 planetary gearbox
biggest wheel loader SW955K adopts planetary multi-speed gearbox specially tailored for SANY loader, twin-turbo 4-element hydraulic torque converter, dual-transformer integrated, and hydraulic-controlled shifting. Excellent handling and self-adaptive modulation function greatly improve work efficiency. Twin-turbo hydraulic torque converter, dual-transformer in one, higher transmission efficiency. The hydraulic valve shifts gears more smoothly and responds faster.
Efficient quantitative three-pump confluence hydraulic system
biggest wheel loader SW955K adopts the domestic leading quantitative three-pump confluence hydraulic system, which brings the best matching of speed and force, higher working efficiency, faster speed and more energy saving. Domestic mainstream 18MPa hydraulic system, hydraulic components have a longer service life. The three pumps work together in confluence, and the total displacement of the pump is larger, which effectively improves the work efficiency.
The lifting speed of the working device is faster, and the stacking and short-distance loading are faster. The confluence of the double pumps can be distributed on demand, and the steering in a small space is more flexible. The steering is light at low engine speeds and does not float at high speeds.
Safe and reliable braking system
The dual-pipe full hydraulic service brake has both controllability and reliability, making drivers and passengers safer and more assured. Closed system, brake hydraulic oil is not easy to be polluted by the outside world, brake components
longer life and lower failure rate. Independent hydraulic brake circuits for the front and rear axles provide more reliable service braking. The hydraulic system adopts the same 9-grade precision oil standard and high-pressure pipeline design standard as the excavator, which makes the whole system components work longer and more reliably.
One-key start, key management
biggest wheel loader SW955K uses CAN communication to intelligently start the management system. The first domestic smart key start, engine start and flameout management system, easy to start and stop, prolong the life of the starter motor and battery. One-button start ensures that the engine starts without impact and time-out, and effectively prevents overheating of the starter motor and over-discharge of the battery. Intelligent key management, the owner's password is customized, 10 mobile phone passwords are assigned by the owner, and the device is more secure.
Basic performance | Rated load | 5500kg |
Overall weight | 17900kg | |
Bucket capacity | 3.0(2.7-4.0)m³ | |
Unload height | 3126mm | |
Unload distance | 1140mm | |
Max. Traction force | 175kN | |
Max. Rising force | 175kN | |
Engine | model | WEICHAI WP10G220E343 |
Rated power | 162/2000kW/rpm | |
Working device action time | Time used for lifting, loading and unloading, landing | ≤10.5s |
Overall dimension | Overall longth | 8152mm |
Overall width | 3000mm | |
Overall height | 3560mm | |
Axle base | 3200mm |
