Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 210hp motor grader in China. Please feel free to buy cheap 210hp motor grader for sale here from our factory. Quality products and reasonable price are available.
Product Orientation

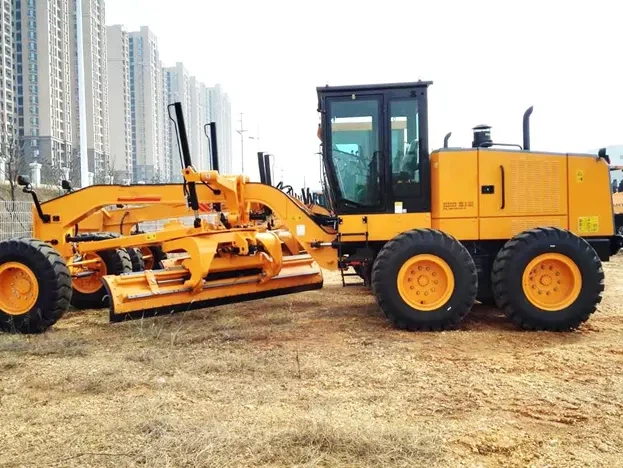

210HP Motor Grader STG210C is all over Southeast Asia, Africa, the Middle East and other regions, and has the characteristics of adapting to overseas high temperature, wind and sand, tea tasting, and high attendance rate.
Product Feature
Durable
Cummins National III heavy-duty engine, ZF gearbox, overload protection turbine box, reliable and durable.
The direct-flow air intake system increases the air filter maintenance period from 250h to more than 1000h, which can effectively prevent the engine from "early grinding".
The working device and the rear axle adopt a fully sealed slewing bearing structure without wearing parts, and the reliability is greater than 1000h.
Easy maintenance
Fault self-diagnosis The fault information is directly displayed, the daily maintenance is automatically prompted, and the built-in troubleshooting guide and maintenance content.
The left and right engine compartment doors are wide open, and various filter elements are centrally arranged, which is convenient and quick for daily maintenance.
Comfortable ride
210HP Motor Grader STG210C is equipped with an integrated front windshield, left and right sliding windows, sun visors, sun blinds, mechanical suspension seats with headrests, high-power heating and cooling air conditioners, radios, stereos, tea cup holders, multi-functional storage boxes, USB mobile phone charging ports, etc.
Innovative Technology
Variable power energy saving technology
According to different load conditions during operation, 210HP Motor Grader STG210C automatically matches the optimal power curve to save fuel.
DC air intake technology
The direct-flow air intake and Nano-filtration technology have low air intake resistance and high filtration efficiency. The filter element replacement cycle is more than 1000h, which saves fuel and can effectively prevent the engine from "early grinding".
Slewing bearing working device and rear axle
The rear axle slewing bearing replaces the traditional copper sleeve structure, with no wearing parts, easy maintenance and low cost of use.
The working device adopts a fully enclosed slewing bearing structure, with high working accuracy, no wearing parts, convenient maintenance and low use cost.
Basic parameters | Engine brand | WEICHAI |
Emission class | Country Ⅲ | |
Rated power/speed | 154/2200kw/rpm | |
Overall dimensions(Standard) | 9340*2740*3348mm | |
Overall weight | 16200kg | |
Performance parameters | Forward speed | 6/10/13/21/27/42km/h |
Backward speed | 6/13/27km/h | |
Working hydraulic system maximum pressure | 18MPa | |
Transmission shift system pressure | 1.6-1.8MPa | |
Blade movement | length * string height | 3965*620mm |
Max. lift height | 480mm | |
Max. shovel depth | 630mm | |
Max. tilt angle | ±90° | |
Cutting angle range | 25-75° | |
Slewing angle | 360° | |
Ripper | Max. immersion depth | 462mm |
Max. lift height | 526mm | |
Max. departure angle | 14° | |
Max. working width | 2180mm | |
Bulldozer | Max. immersion depth | 220mm |
Max. lift height | 625mm | |
Max. entry angle | 63° | |
Max. working width | 2740mm | |
Main parameters | Engine | WEICHAI WP6G210E330 |
Overall weight | 16200KG | |
Blade length | 3965mm(13ft) |
