Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 190hp road grader in China. Please feel free to buy cheap 190hp road grader for sale here from our factory. Quality products and reasonable price are available.
Product Orientation

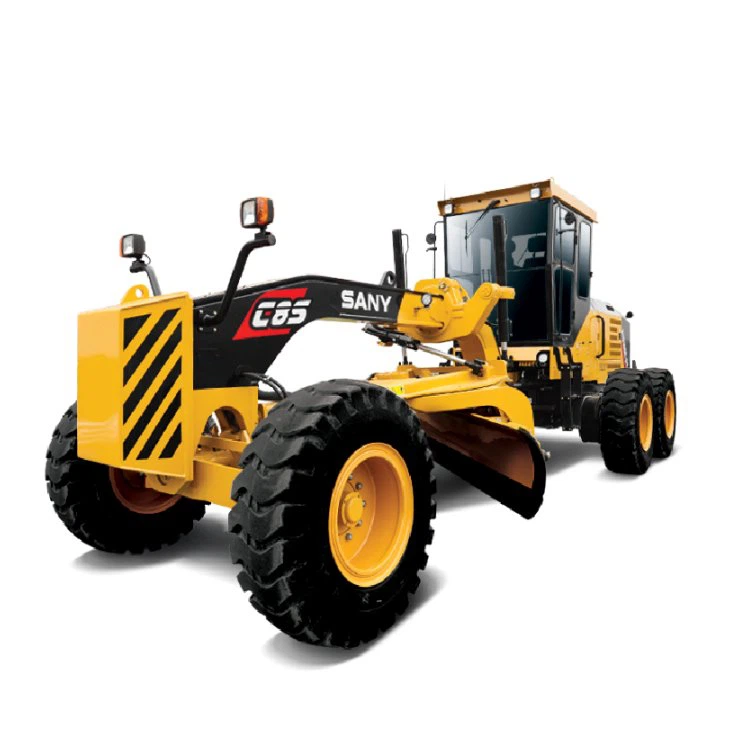

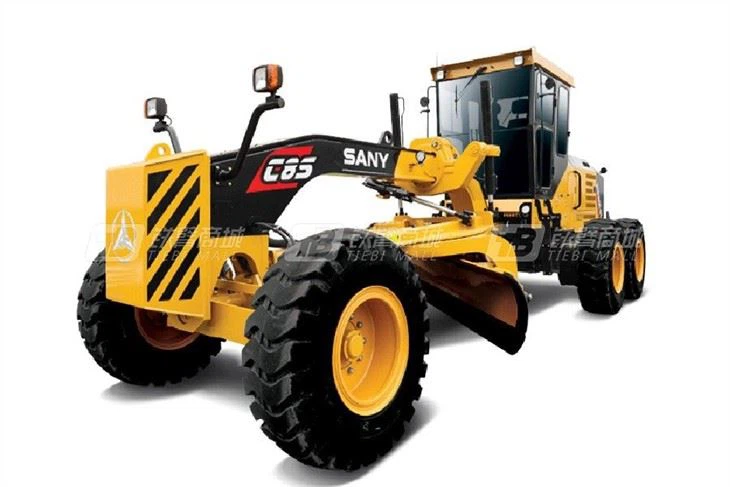

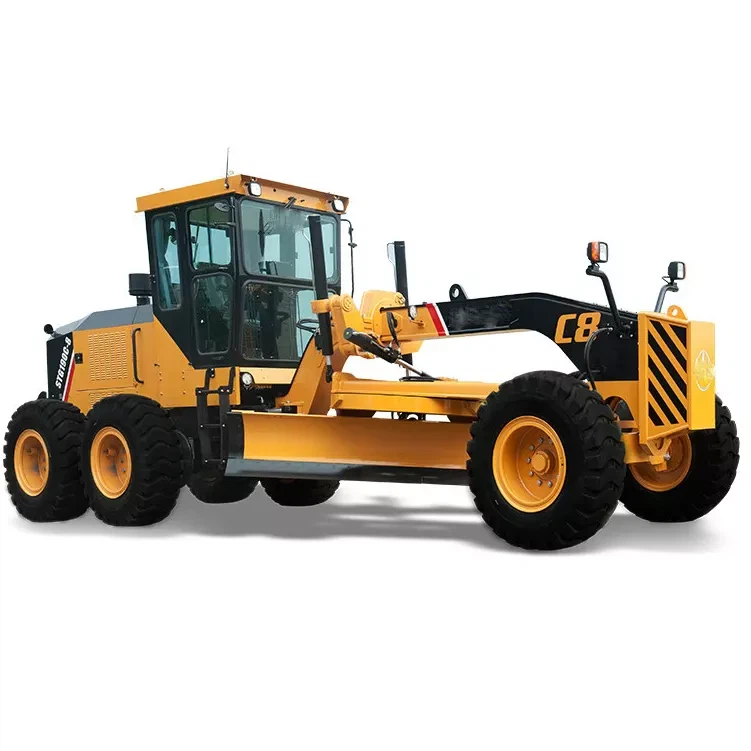

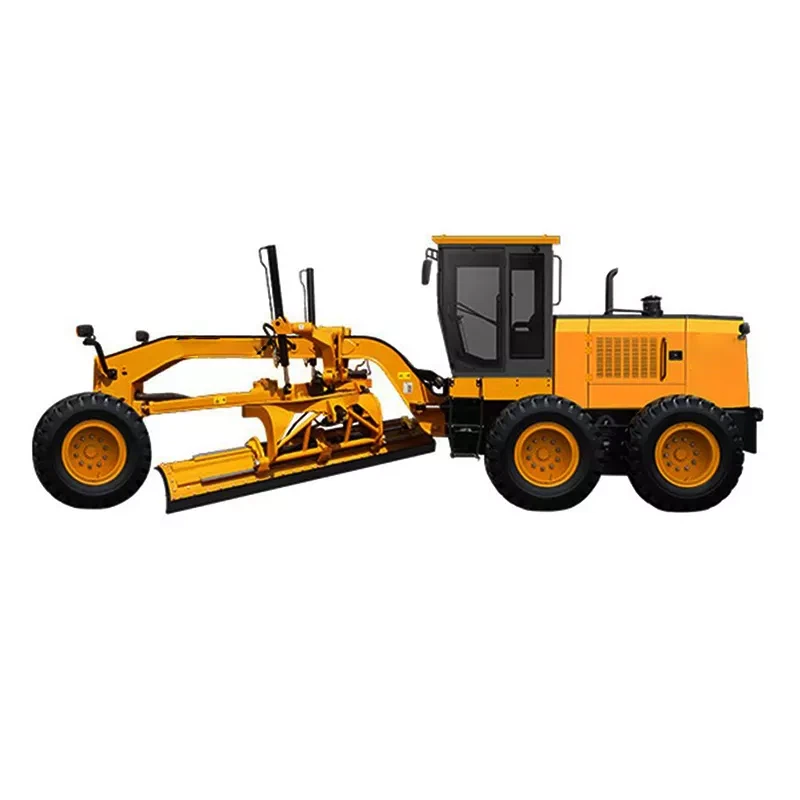

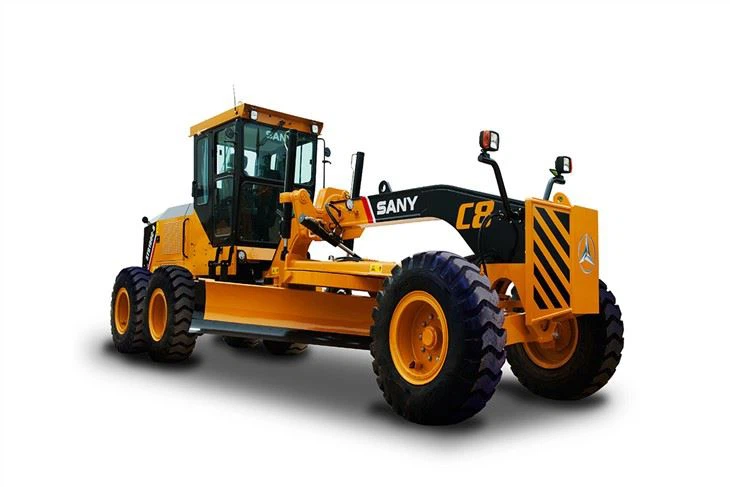

190HP Road Grader STG190C has a variety of configurations to meet the high temperature, high cold, plateau operating environment, easily cope with earthwork, water stable paving, "shoveling large piles", shoveling ice and snow and other working conditions to ensure efficient operation.
Product Feature
Efficient construction
The 200-horsepower variable-power heavy-duty engine ensures maximum traction through the optimal axle-to-load ratio.
The operating speed is high, the blade operating range is large, the cylinder speed is fast, and the blade swinging soil force is large, ensuring the most efficient construction.
Innovative Technology
Variable power energy saving technology
According to different load conditions during operation, 190HP Road Grader STG190C automatically matches the optimal power curve to save fuel.
Easy control
Through the load adaptive technology, the speed of the blade cylinder is controllable. A new generation of control system, the handle has small control force and small empty stroke, and it is easy to achieve fine leveling operations.
DC air intake technology
The direct-flow air intake and Nano-filtration technology have low air intake resistance and high filtration efficiency. The filter element replacement cycle is more than 1000h, which saves fuel and can effectively prevent the engine from "early grinding".
Slewing bearing working device and rear axle
The rear axle slewing bearing replaces the traditional copper sleeve structure, with no wearing parts, easy maintenance and low cost of use.
The working device adopts a fully enclosed slewing bearing structure, with high working accuracy, no wearing parts, convenient maintenance and low use cost.
Durable
The direct-flow air intake system increases the air filter maintenance period from 250h to more than 1000h, which can effectively prevent the engine from "early grinding".
The working device and the rear axle adopt a fully sealed slewing bearing structure without wearing parts, and the reliability is greater than 1000h.
Load Sensing Control System
Through the optimal matching of pumps and valves and load adaptive technology, the speed of the blade cylinder is controllable.
A new generation of control system, the handle has small control force and small empty stroke, and it is easy to achieve fine leveling operations.
Comfortable ride
190HP Road Grader STG190C is equipped with an integral front windshield, left and right sliding windows, sun visors, sun blinds, mechanical suspension seats with headrests, high-power heating and cooling air conditioners, radios, multi-functional storage boxes, USB mobile phone charging openings, etc.
Fault self-diagnosis system
The operation status of 190HP Road Grader STG190C is automatically detected, the fault information is directly displayed, the regular maintenance is automatically prompted and confirmed, and the detailed troubleshooting guide and maintenance content can be viewed.
Basic parameters | Engine brand | WEICHAI |
Emission class | Country Ⅲ | |
Rated power/speed | 147/2200kw/rpm | |
Overall dimensions(Standard) | 9340*2740*3348mm | |
Overall weight | 15800kg | |
Performance parameters | Forward speed | 6/10/13/21/27/42km/h |
Backward speed | 6/13/27km/h | |
Working hydraulic system maximum pressure | 18MPa | |
Transmission shift system pressure | 1.3-1.7MPa | |
Blade movement | length * string height | 3965*620mm |
Max. lift height | 480mm | |
Max. shovel depth | 630mm | |
Max. tilt angle | ±90° | |
Cutting angle range | 25-75° | |
Slewing angle | 360° | |
Ripper | Max. immersion depth | 462mm |
Max. lift height | 526mm | |
Max. departure angle | 14° | |
Max. working width | 2180mm | |
Bulldozer | Max. immersion depth | 220mm |
Max. lift height | 625mm | |
Max. entry angle | 63° | |
Max. working width | 2740mm | |
Main parameters | Engine | WEICHAI WP6G200E330 |
Overall weight | 15800KG | |
Blade length | 3965mm(13ft) |
