Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of mini digger 3.5 ton in China. Please feel free to buy cheap mini digger 3.5 ton for sale here from our factory. Quality products and reasonable price are available.
Product Features

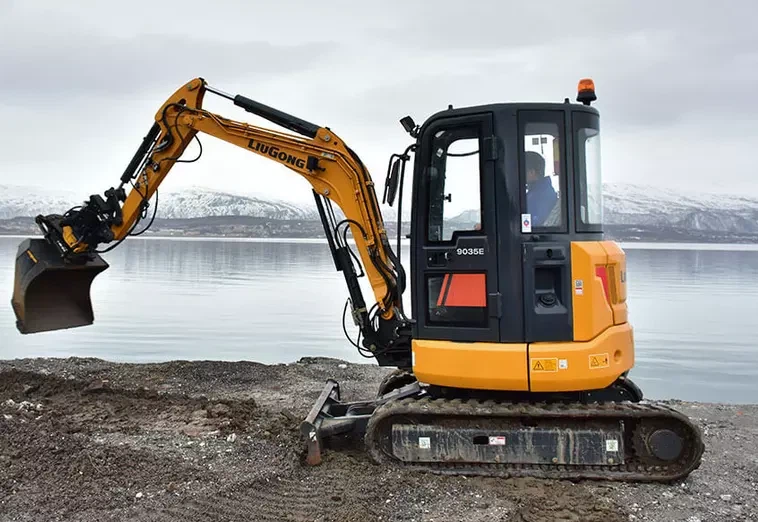

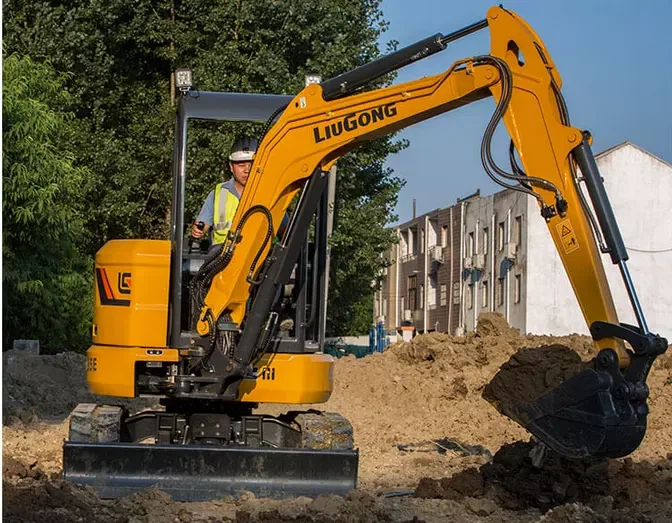

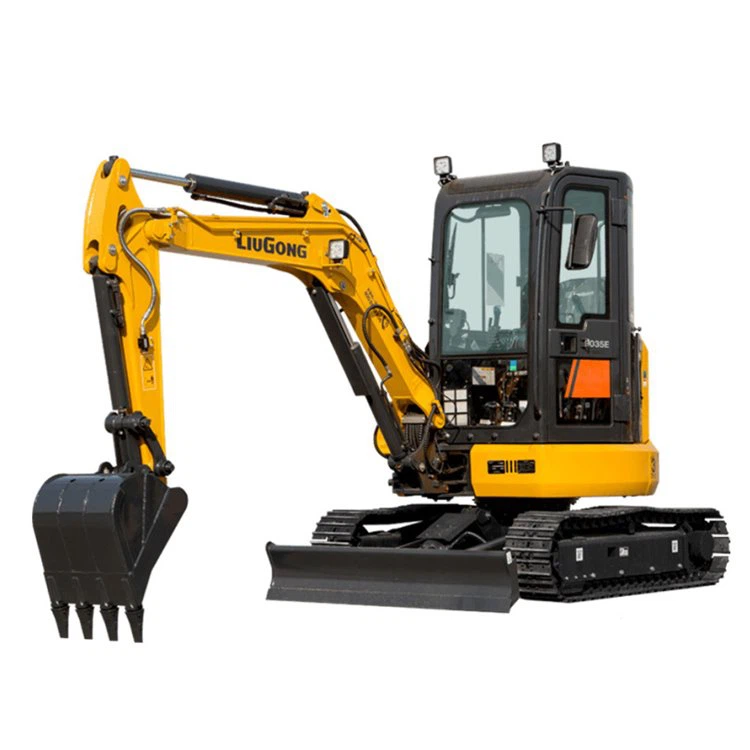

The key components of Crawler Excavator mini digger 3.5 Ton 9035E are globally sourced, and international advanced brand products are used, with a strong combination, complementary advantages, and higher and reliable performance.
The 850mm zero-turn body can easily achieve 360° free rotation wherever it can go.
The 120° boom deflection of the Crawler Excavator mini digger 3.5 Ton 9035E is perfectly matched with the zero-tail rotation, and there is no dead angle for corner work.

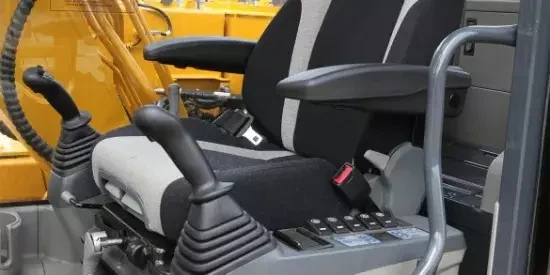

The Crawler Excavator mini digger 3.5 Ton 9035E is available with a choice of closed or open cab, standard sticks for greater digging force or extended sticks for greater reach, rubber tracks for paved surfaces or steel tracks for non-paved surfaces.
Machine weight | 3980 (closed cab) / 3860 kg (open cab) |
Power | 21.2kW/2400rpm |
Standard bucket capacity | 0.11 m³ |

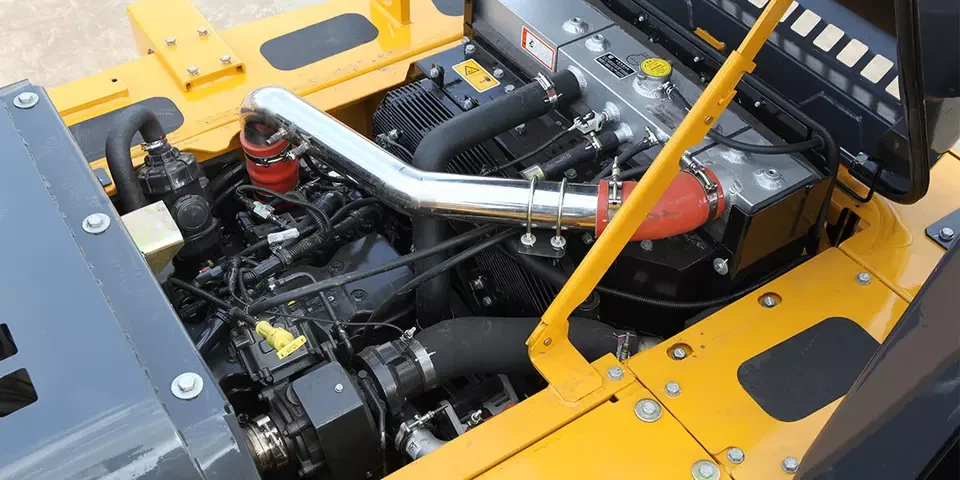

Engine model | Yanmar 3TNV88 |
Emission standard | Country III |
Type | 3-cylinder in-line, water-cooled, direct injection |
Rated power (rated speed) | 22.2kW/2400rpm |
Net power (rated speed) | 21.2kW/2400rpm |
Maximum torque (torque/speed) | 107/1440 N·m |
Cooling method | Water cooling |
Travel speed high/low | 4.2/2.7 km/h |
Rotation speed | 10 rpm |
Gradeability | 30° |
Ground specific pressure | 35 / 34 kPa |
Maximum stick digging force (ISO) | 20 kN |
Bucket maximum digging force (ISO) | 30 kN |
Length (transport state) | 4810 / 4860 mm |
Overall width (standard track configuration) | 1700 mm |
Height (transport state) | 2500 mm |
Minimum ground clearance | 258 mm |
Chassis wheelbase | 1675 mm |
Base frame gauge | 1400 mm |
Track width (standard) | 300 mm |
Maximum excavation height | 4710 / 4843 mm |
Maximum digging radius | 5385 / 5715 mm |
Maximum excavation depth | 3085 / 3440 mm |
Maximum unloading height | 3310 / 3463 mm |
