Famous Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of excavator 22t in China. Please feel free to buy cheap excavator 22t for sale here from our factory. Quality products and reasonable price are available.
Product Features
Optional accessories
Breakers, rippers, wood grabs, stone grabs, hydraulic rams, quick couplers and breaker pipes.
Machine optional equipment
Fuel pump, cab warning light, cab ceiling light, cab overhead protective net, cab front upper protective net, cab front lower protective net, rubber track, narrow barrel

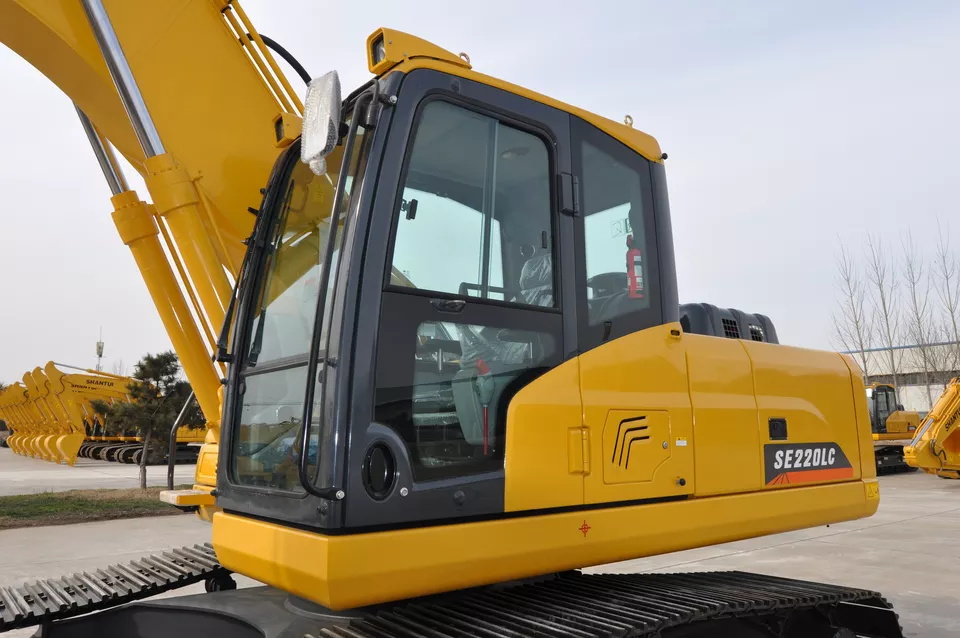

Spacious and comfortable operating environment
The color of the fully injection-molded interior parts is ergonomically and effectively matched, reducing the operator's visual fatigue.
The control device is reasonably arranged, the space is large, the field of vision is wide, and the operation is convenient and comfortable.

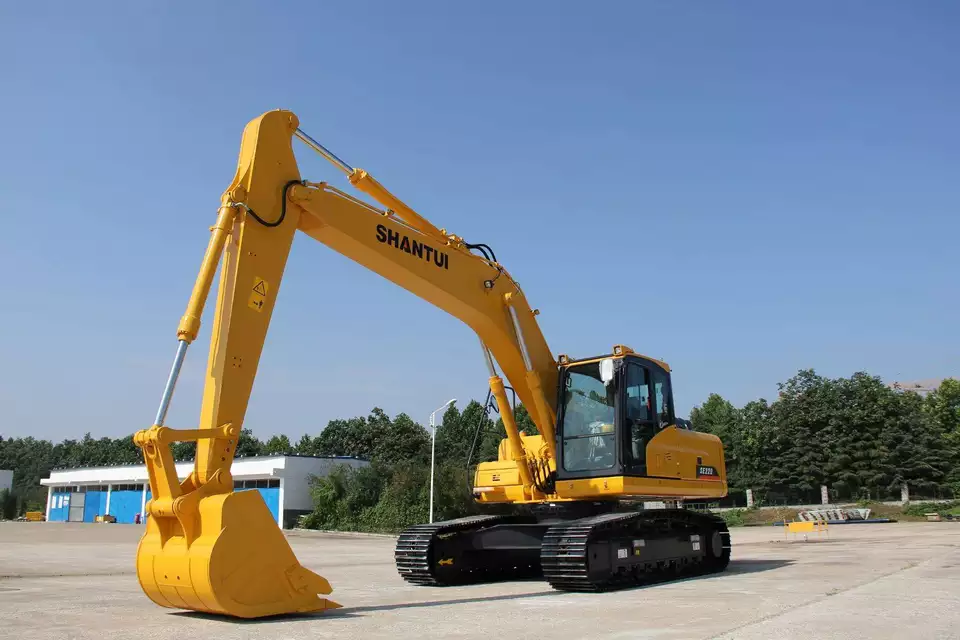

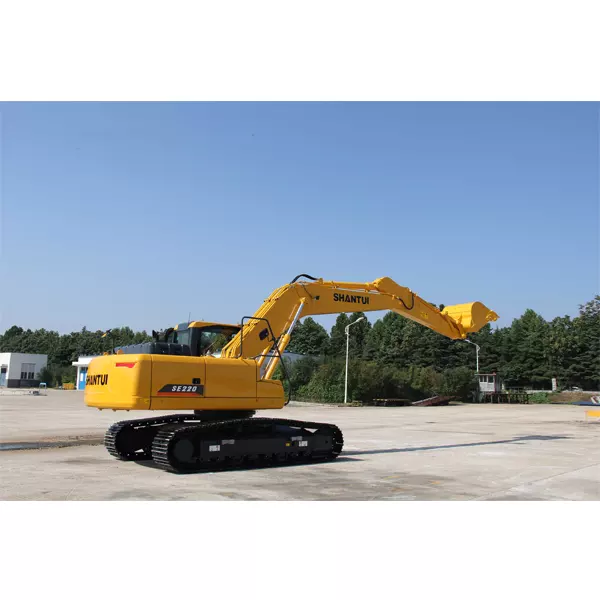

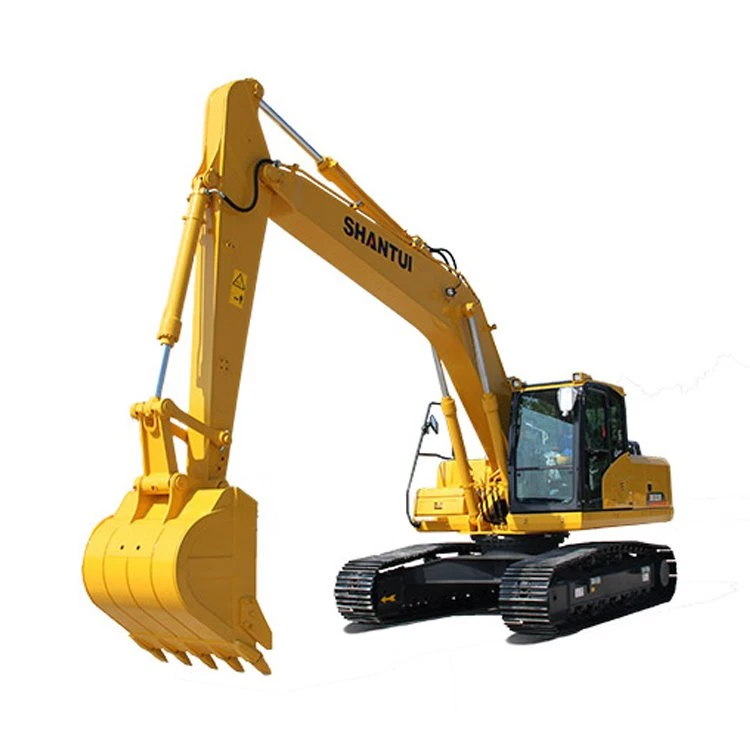

The Excavator 22t SE220 is equipped with a high-power air conditioner, and is equipped with an adjustable wrist rest and an air cushion seat to help you operate comfortably throughout the day.
Intelligent electronic control and optimal power control
The intelligent control system realizes the optimal matching of the power system and the hydraulic system, and improves the work efficiency. Excavator 22t SE220 provides automatic idle function, which reduces fuel consumption and lowers operating costs.
A new generation of man-machine-friendly intelligent electronic control system allows you to master all the working states of the machine.
There are four preset working modes: P (heavy duty), E (economical), A (automatic), and B (breaker), which are easy to switch.
Drive sprockets, idlers, track rollers, carrier rollers and tracks
Decades of R&D and manufacturing experience and world-leading technology for drive sprockets, idlers, rollers, idlers, and tracks.
The world's advanced forging and heat treatment technology ensures stable and reliable quality.
Enhanced work equipment
The design of Excavator 22t SE220 structural parts is fully optimized, and the key bearing parts are reinforced to withstand harsh working conditions.
The bottom plate, side plate and reinforcing plate of the bucket are made of high-strength wear-resistant materials to improve the durability of the bucket.
Booms, buckets and buckets of various specifications can be easily combined to adapt to various working conditions.
High-end system configuration
The domestic leading high adaptation engine.
World-class hydraulic configuration, high working pressure and small pressure loss.
Comparative item | Excavator 22t SE220 (Standard version) |
Overall dimensions | |
Overall length (mm) | 9605 |
Ground length (During transport) (mm) | 4915 |
Overall height (To the top of boom) (mm) | 3040 |
Overall width (mm) | 2980 |
Overall height (To top of cab) (mm) | 3070 |
Ground clearance of counterweight (mm) | 1080 |
Minimum ground clearance (mm) | 470 |
Tail turning radius (mm) | 2925 |
Track length (mm) | 4270 |
Track gauge (mm) | 2380 |
Track width (mm) | 2980 |
Standard track shoe width (mm) | 700 |
Turntable width (mm) | 2725 |
Distance from slewing center to tail (mm) | 2920 |
Working range | |
Maximum digging height (mm) | 10100 |
Maximum dumping height (mm) | 7190 |
Maximum digging depth (mm) | 6490 |
Maximum vertical digging depth (mm) | 5770 |
Maximum digging distance (mm) | 9865 |
Maximum digging distance at ground level (mm) | 9680 |
Working device minimum turning radius (mm) | 2970 |
Maximum lifting height of bulldozer blade (mm) | - |
Maximum digging depth of bulldozer blade (mm) | - |
Engine | |
Model | Cummins B5.9-C (China-II) |
Type | Inline 6-cylinder, high pressure common rail, and water-cooled and turbocharged |
Displacement (L) | 6.7 |
Rated power (kW/rpm) | 124/2050 |
Hydraulic system | |
Type of hydraulic pump | Duplex axial variable displacement plunger pump |
Rated working flow (L/min) | 2X213 |
Bucket | |
Bucket capacity (m鲁) | 1.05 |
Swing system | |
Maximum swing speed (r/min) | 11 |
Brake type | Mechanically applied and pressure released |
Digging force | |
Bucket arm digging force (KN) | 99/107 |
Bucket digging force (KN) | 137/148 |
Operating weight and ground pressure | |
Operating weight (kg) | 21900 |
Ground pressure (kPa) | 47.7 |
Traveling system | |
Traveling motor | Axial variable displacement plunger motor |
Traveling speed (km/h) | 3.3/5.1 |
Traction force (KN) | 212 |
Gradeability | 70%（35°） |
Tank capacity | |
Fuel tank capacity (L) | 330 |
Cooling system (L) | 28 |
Engine oil capacity (L) | 20 |
Hydraulic oil tank/system capacity (L) | 190/400 |
